Event-Driven Analytics: Building Real-Time Dashboards with Apache Flink and Ktor

 Event-Driven Analytics Building Real-Time Dashboards with Apache Flink and Ktor Viktor Gamov Principal Developer Advocate @ Confluent X/Bluesky: @gamussa 1

X/Bluesky: X/Bluesky: @gamussa @gamussa

X/Bluesky: X/Bluesky: @gamussa @gamussa

X/Bluesky: @gamussa

X/Bluesky: @gamussa

Viktor GAMOV Principal Developer Advocate | Con luent Java Champion Co-Author «Ka ka in Action» X/Bluesky: @gamussa f f f THE CLOUD CONNECTIVITY COMPANY Kong Con idential

Slides and Video https://speaking.gamov.io/ X/Bluesky: @gamussa

X/Bluesky: @gamussa

X/Bluesky: @gamussa

What is Stream Processing? X/Bluesky: @gamussa

What is Stream Processing? Stream Processing is the toolset for dealing with events as they move! X/Bluesky: @gamussa

Stateless or Stateful? X/Bluesky: @gamussa

X/Bluesky: @gamussa

X/Bluesky: @gamussa

What is Apache Flink?

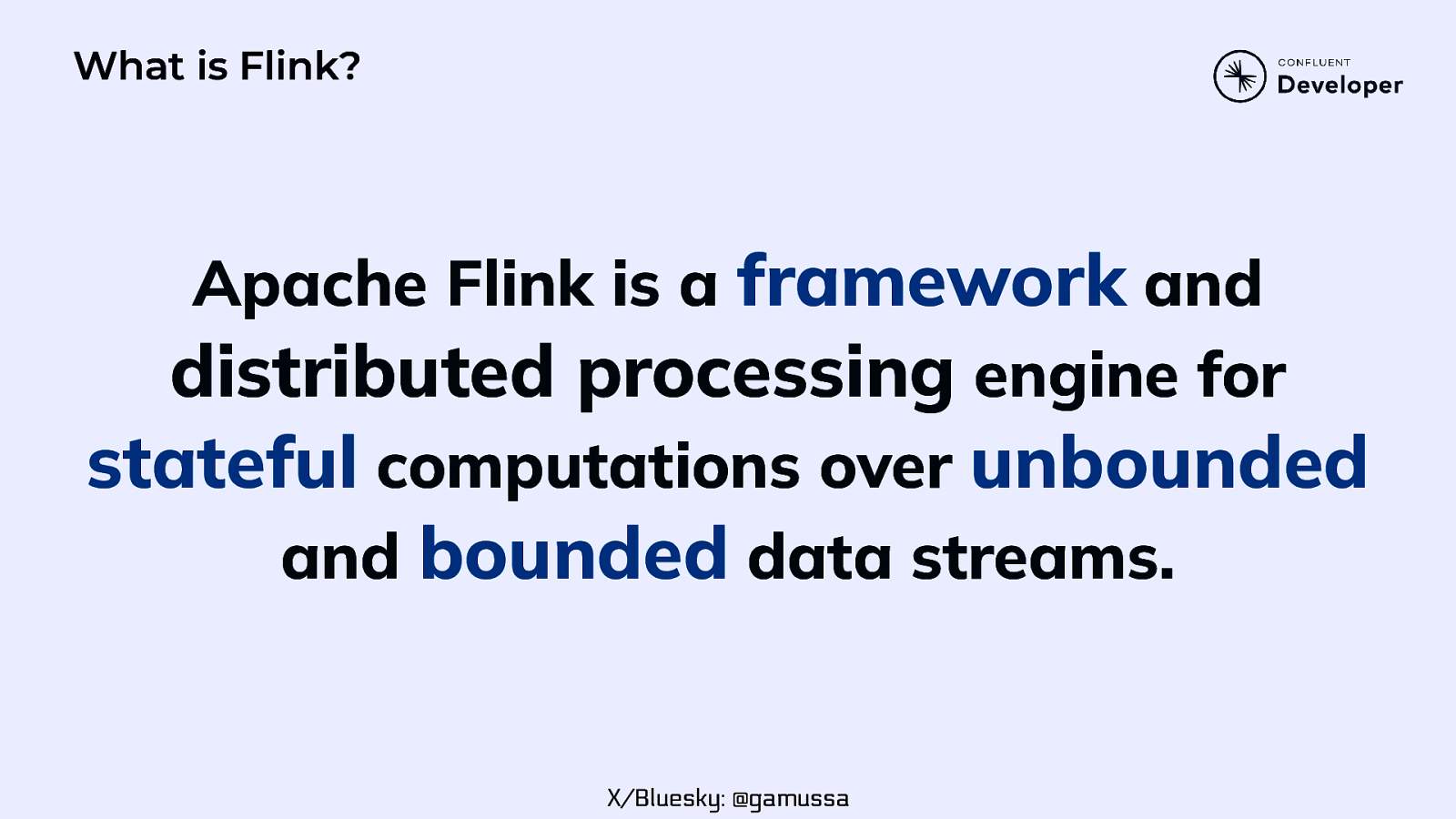

What is Flink? Apache Flink is a framework and distributed processing engine for stateful computations over unbounded and bounded data streams. X/Bluesky: @gamussa

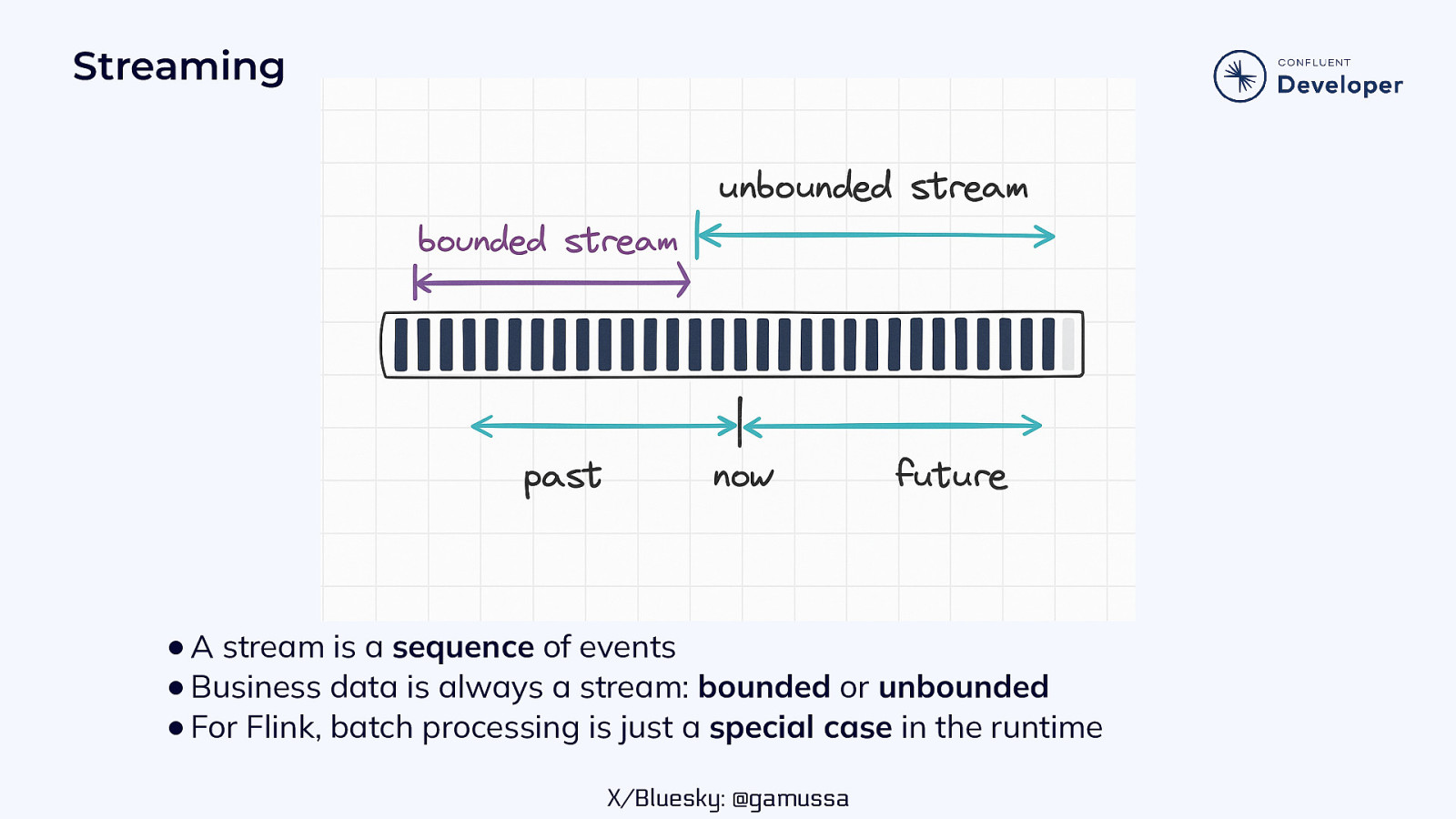

Streaming ● A stream is a sequence of events ● Business data is always a stream: bounded or unbounded ● For Flink, batch processing is just a special case in the runtime X/Bluesky: @gamussa

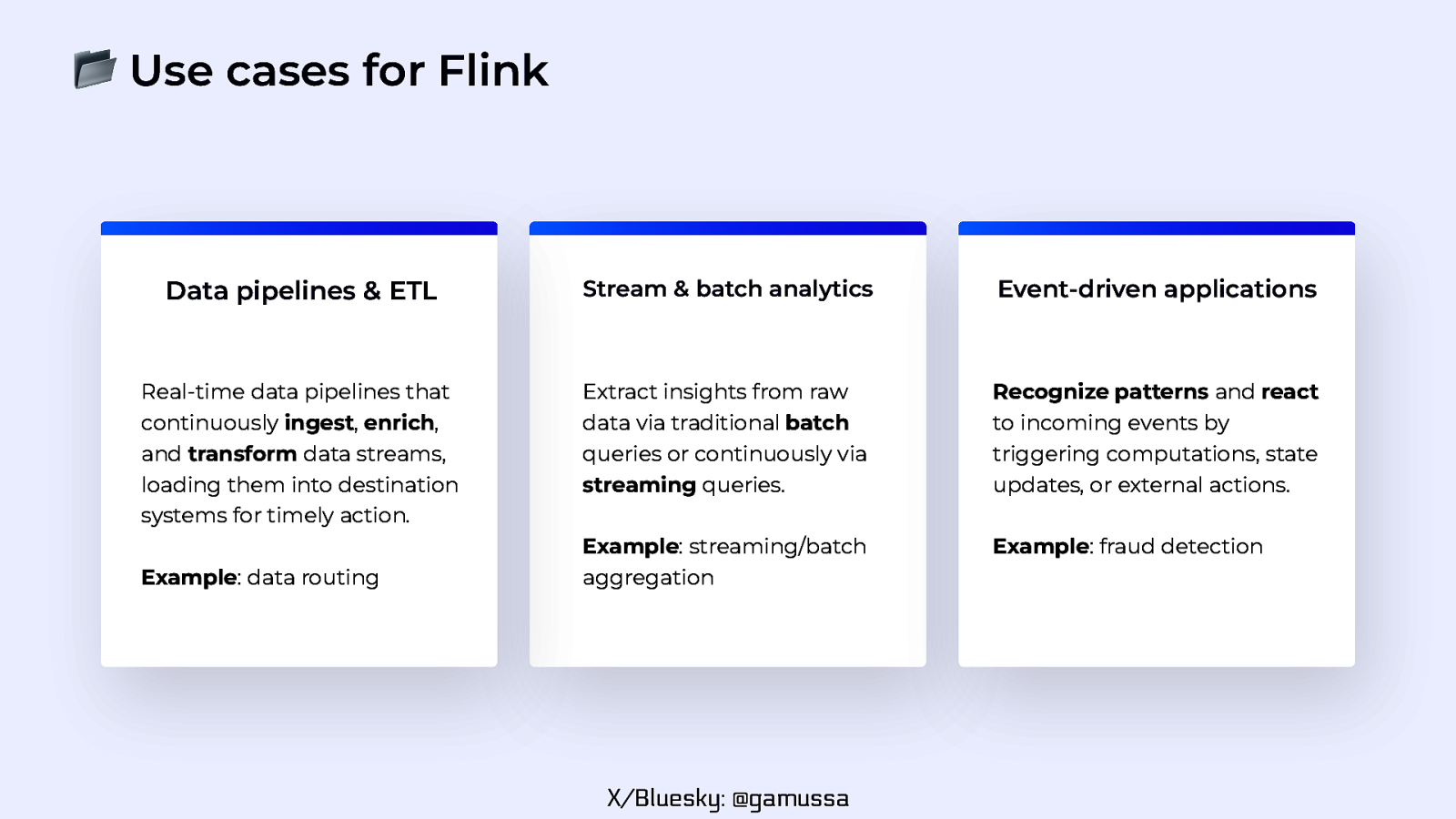

📂 Use cases for Flink Data pipelines & ETL Stream & batch analytics Event-driven applications Real-time data pipelines that continuously ingest, enrich, and transform data streams, loading them into destination systems for timely action. Extract insights from raw data via traditional batch queries or continuously via streaming queries. Recognize patterns and react to incoming events by triggering computations, state updates, or external actions. Example: streaming/batch aggregation Example: fraud detection Example: data routing X/Bluesky: @gamussa

X/Bluesky: @gamussa

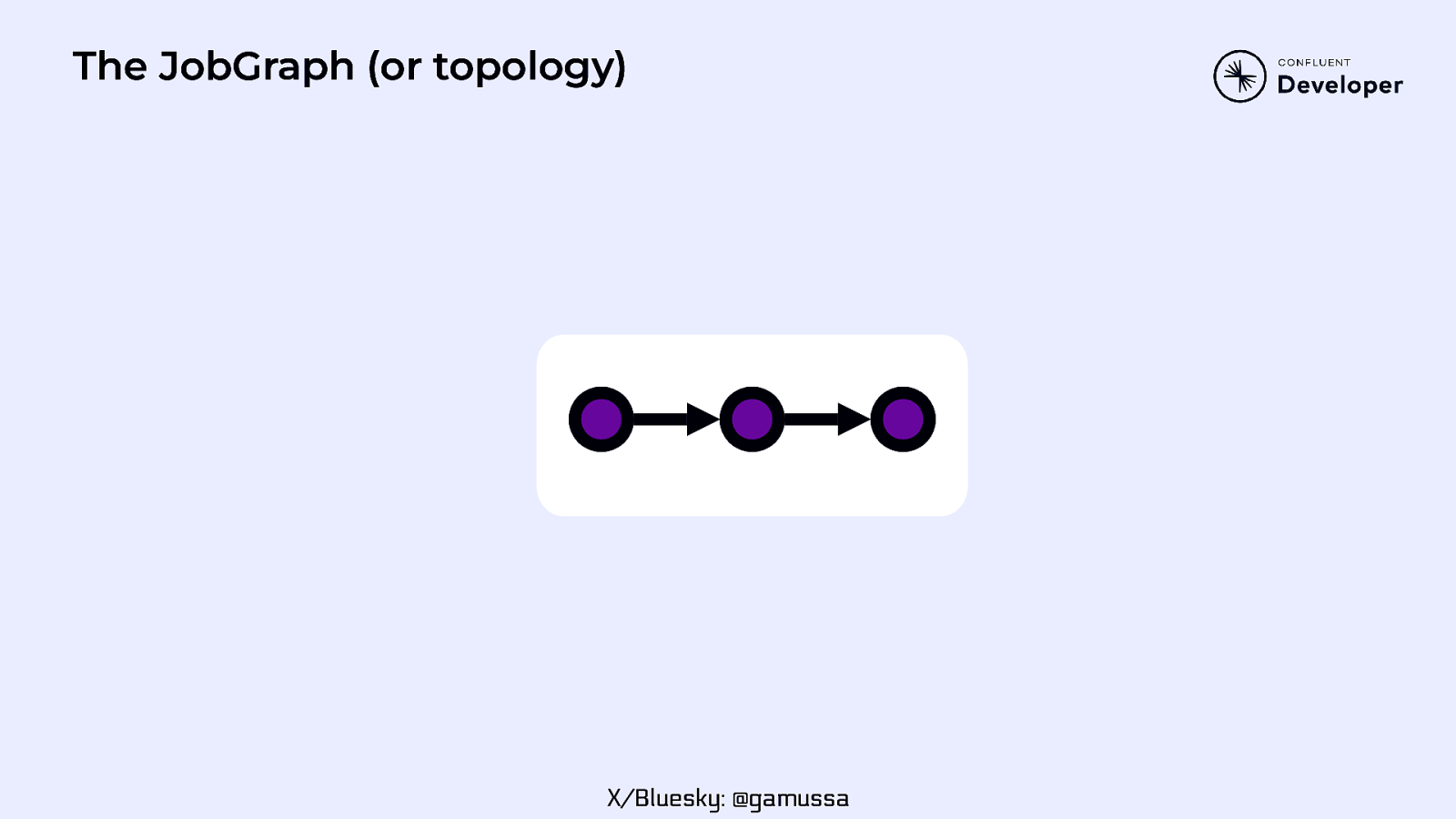

The JobGraph (or topology) X/Bluesky: @gamussa

The JobGraph (or topology) CONNECTION OPERATOR X/Bluesky: @gamussa

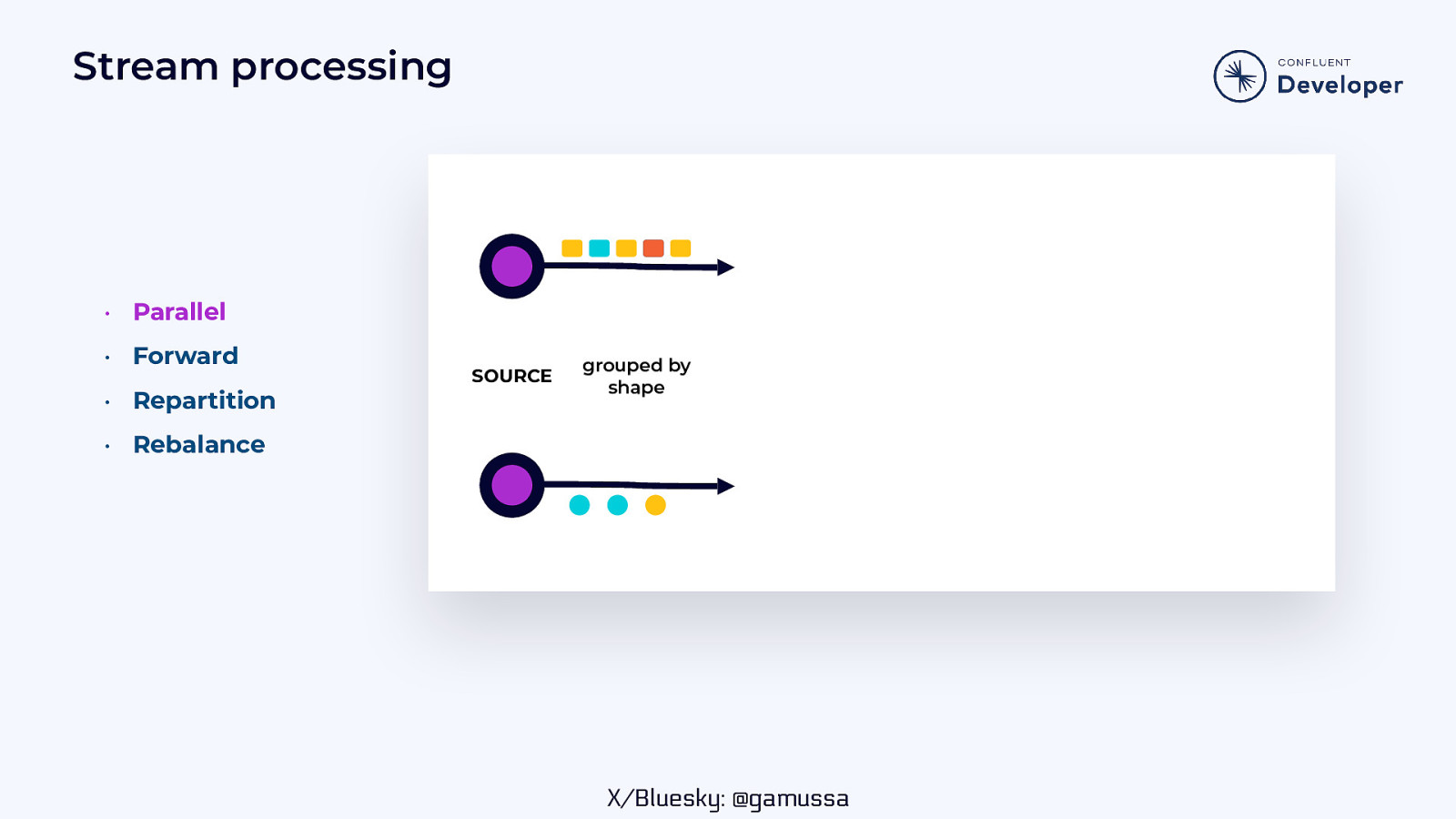

Stream processing • Parallel • Forward • Repartition SOURCE grouped by shape • Rebalance X/Bluesky: @gamussa

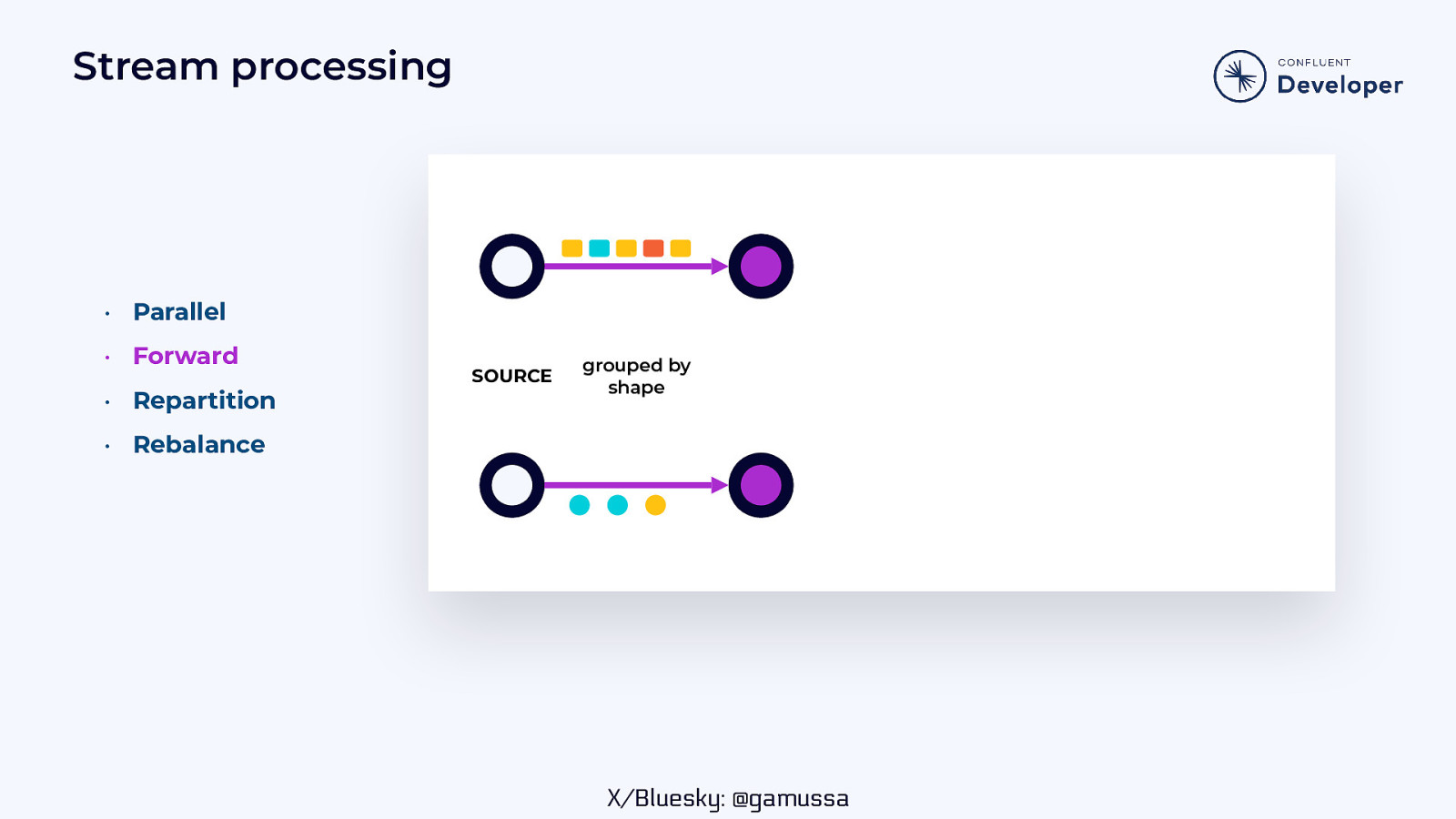

Stream processing • Parallel • Forward • Repartition SOURCE grouped by shape • Rebalance X/Bluesky: @gamussa

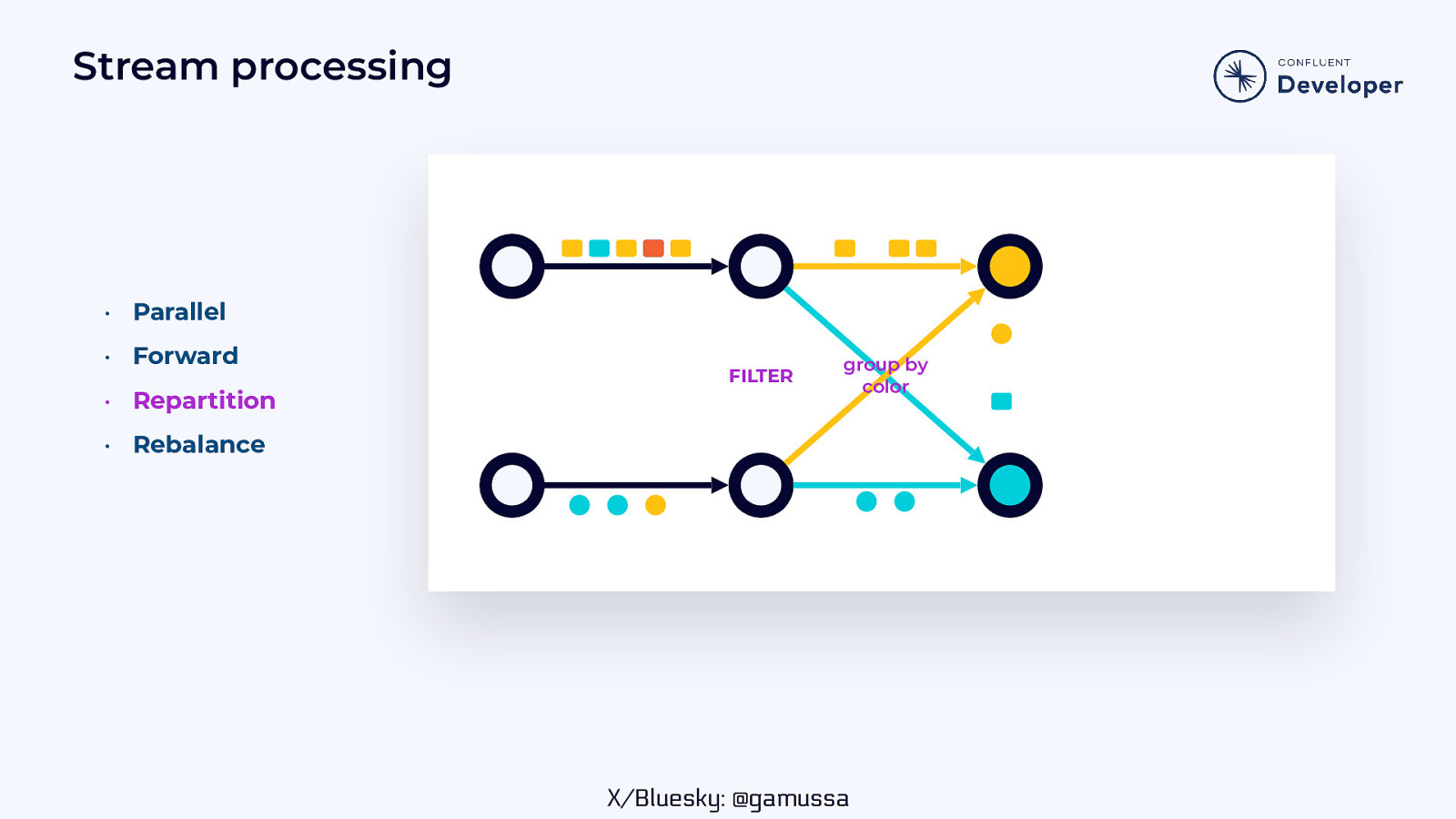

Stream processing • Parallel • Forward • Repartition FILTER group by color • Rebalance X/Bluesky: @gamussa

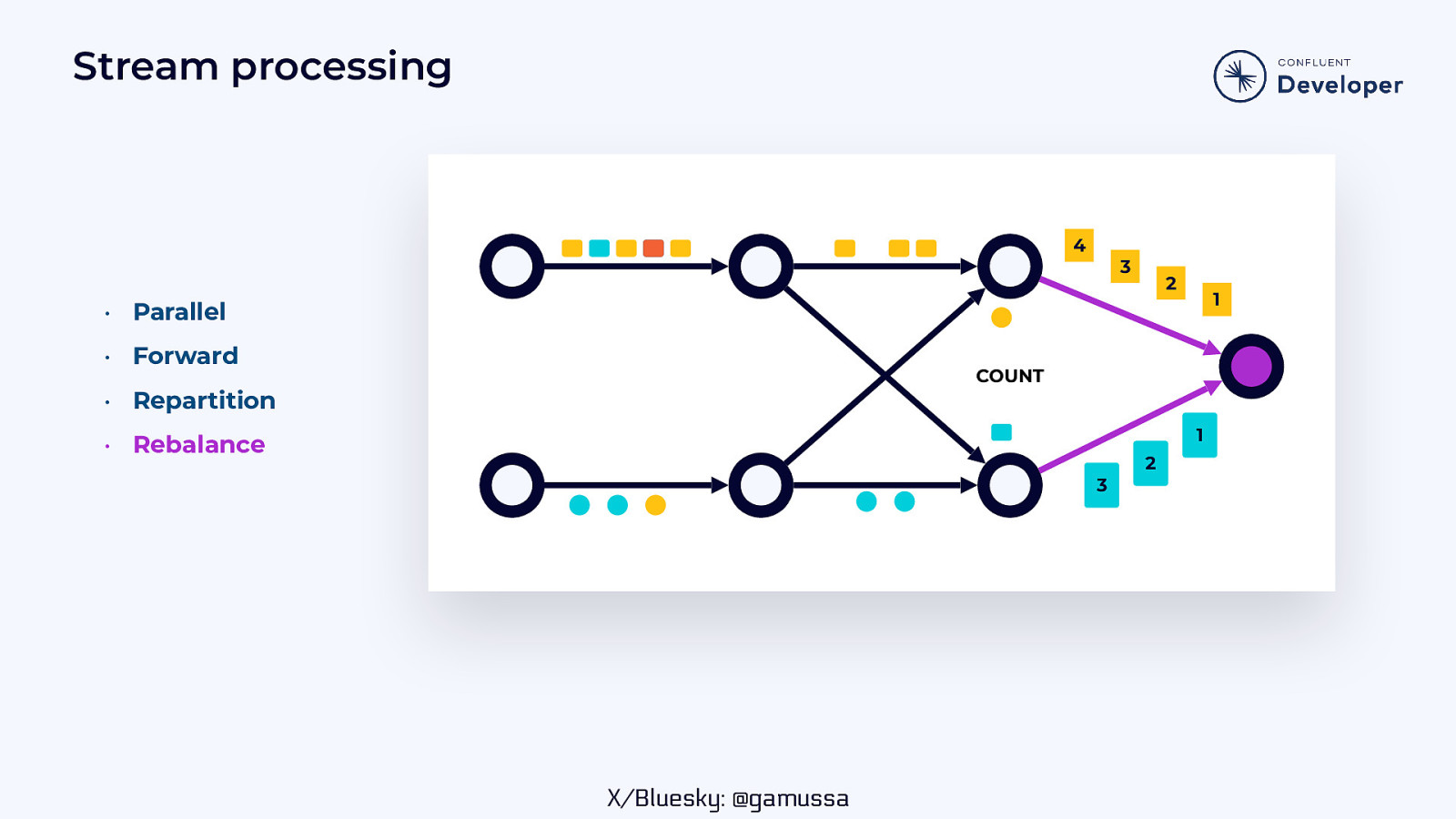

Stream processing 4 3 2 1 • Parallel • Forward COUNT • Repartition 1 • Rebalance 3 X/Bluesky: @gamussa 2

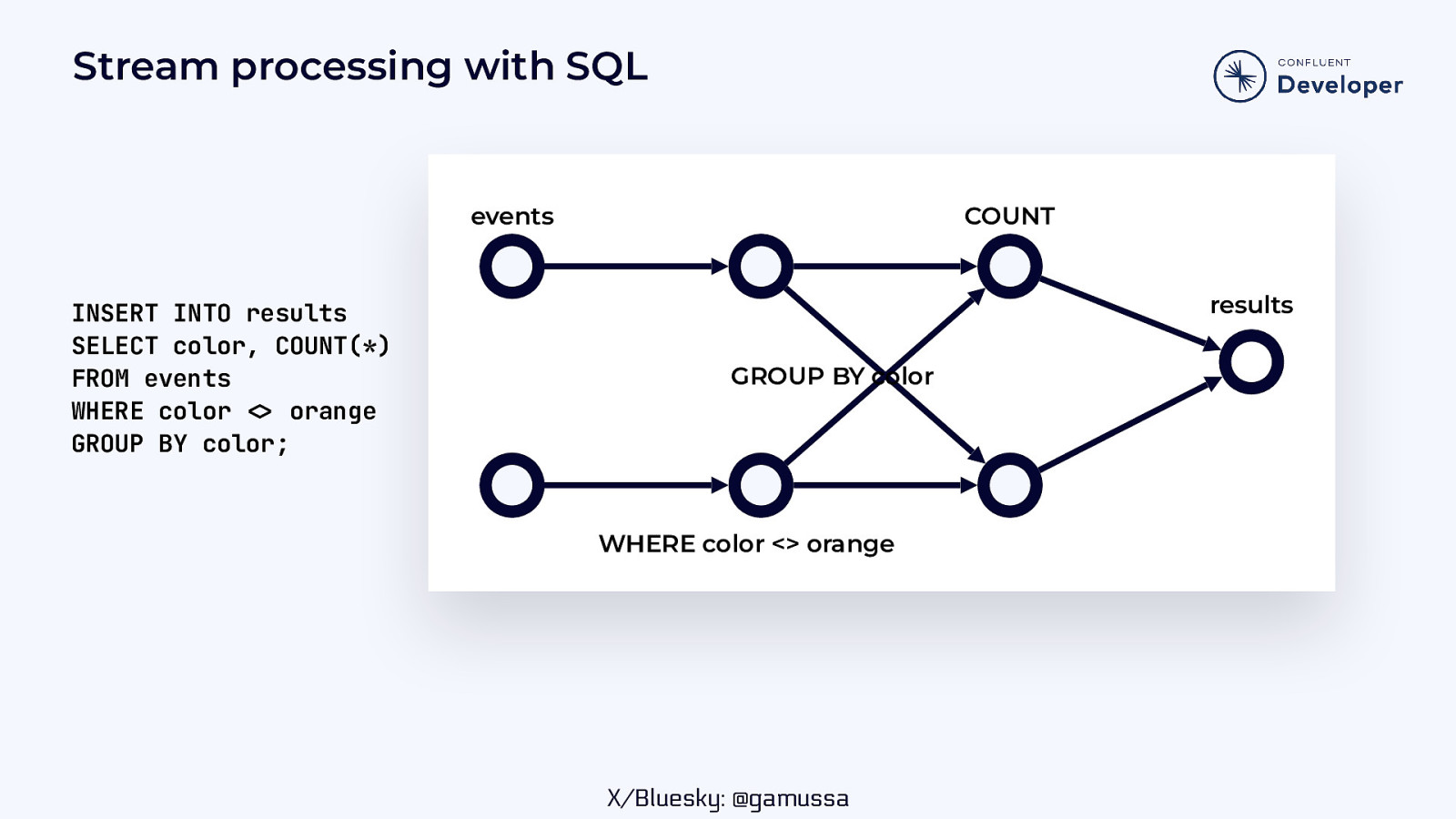

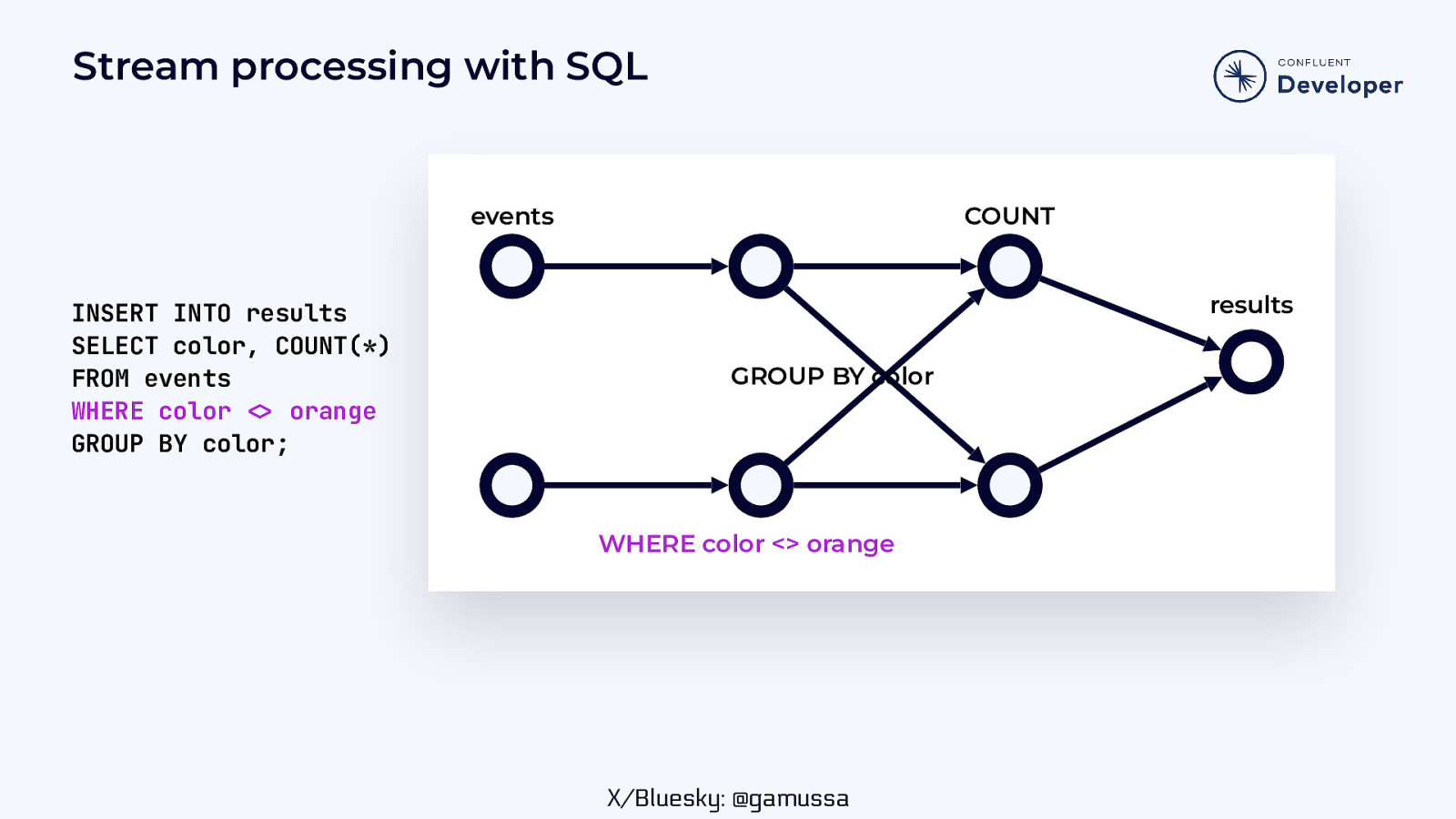

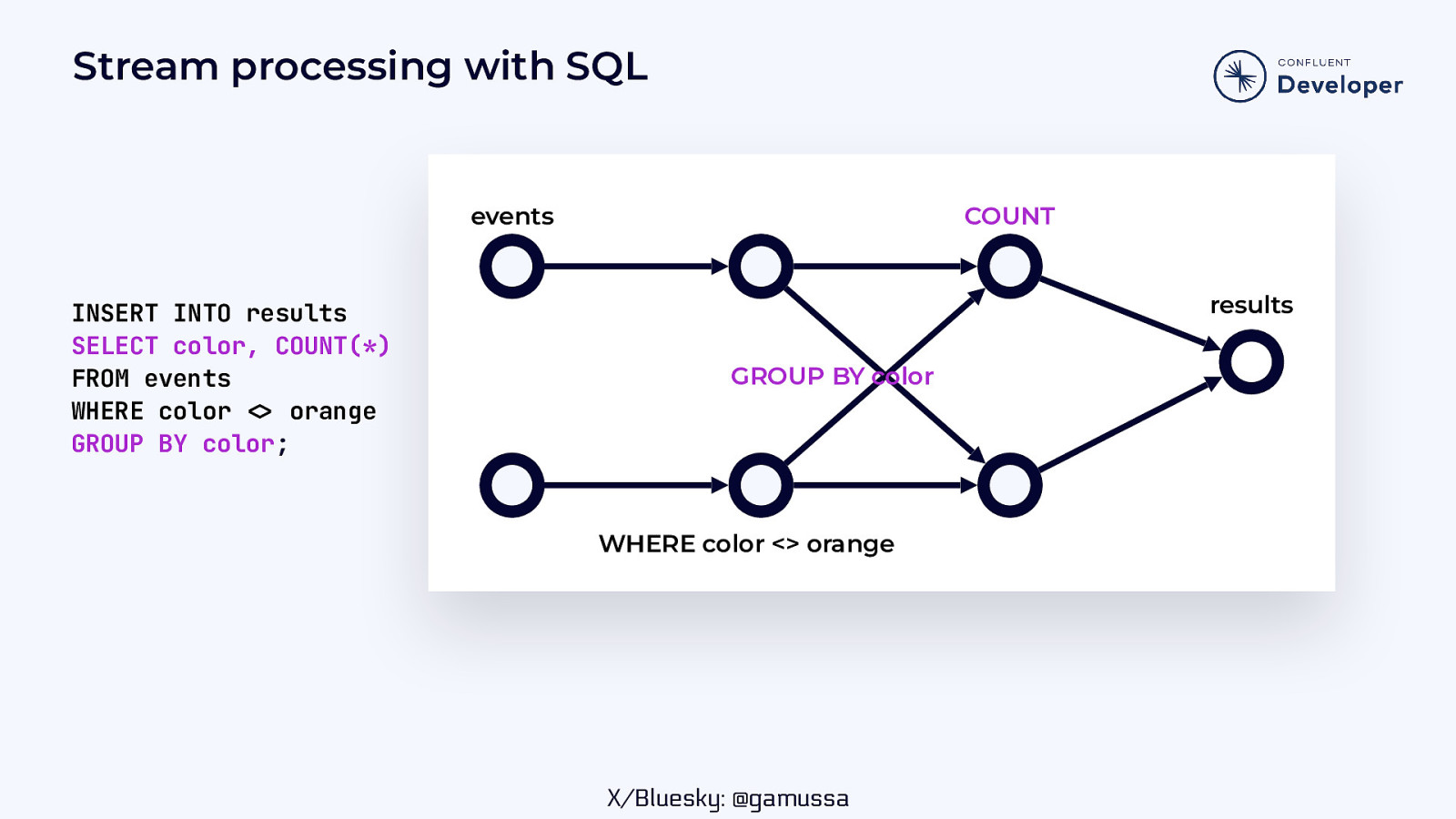

Stream processing with SQL events INSERT INTO results SELECT color, COUNT(*) FROM events WHERE color orange GROUP BY color; COUNT results GROUP BY color WHERE color <> orange

< X/Bluesky: @gamussa

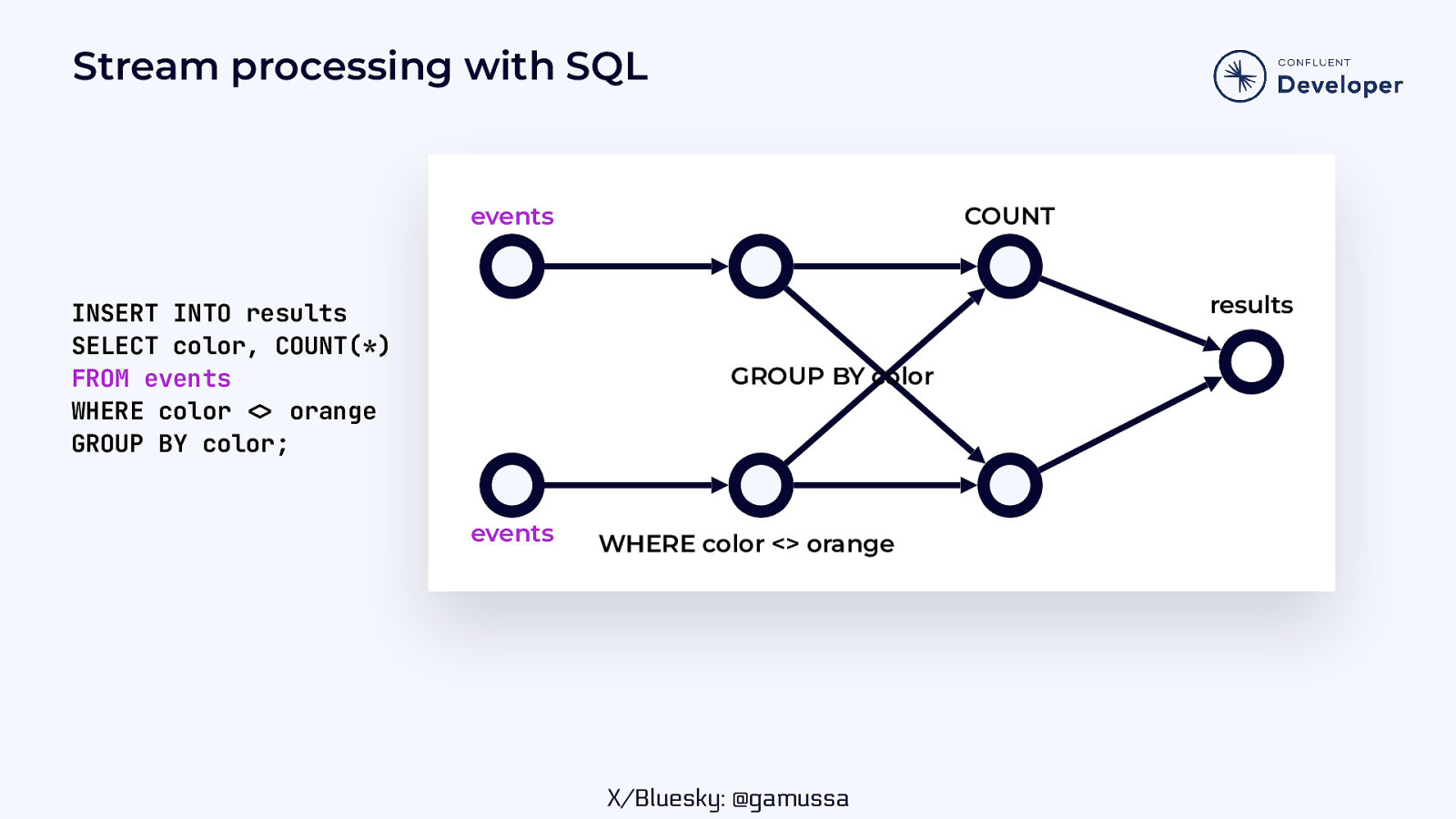

Stream processing with SQL events INSERT INTO results SELECT color, COUNT(*) FROM events WHERE color orange GROUP BY color; COUNT results GROUP BY color WHERE color <> orange

< X/Bluesky: @gamussa

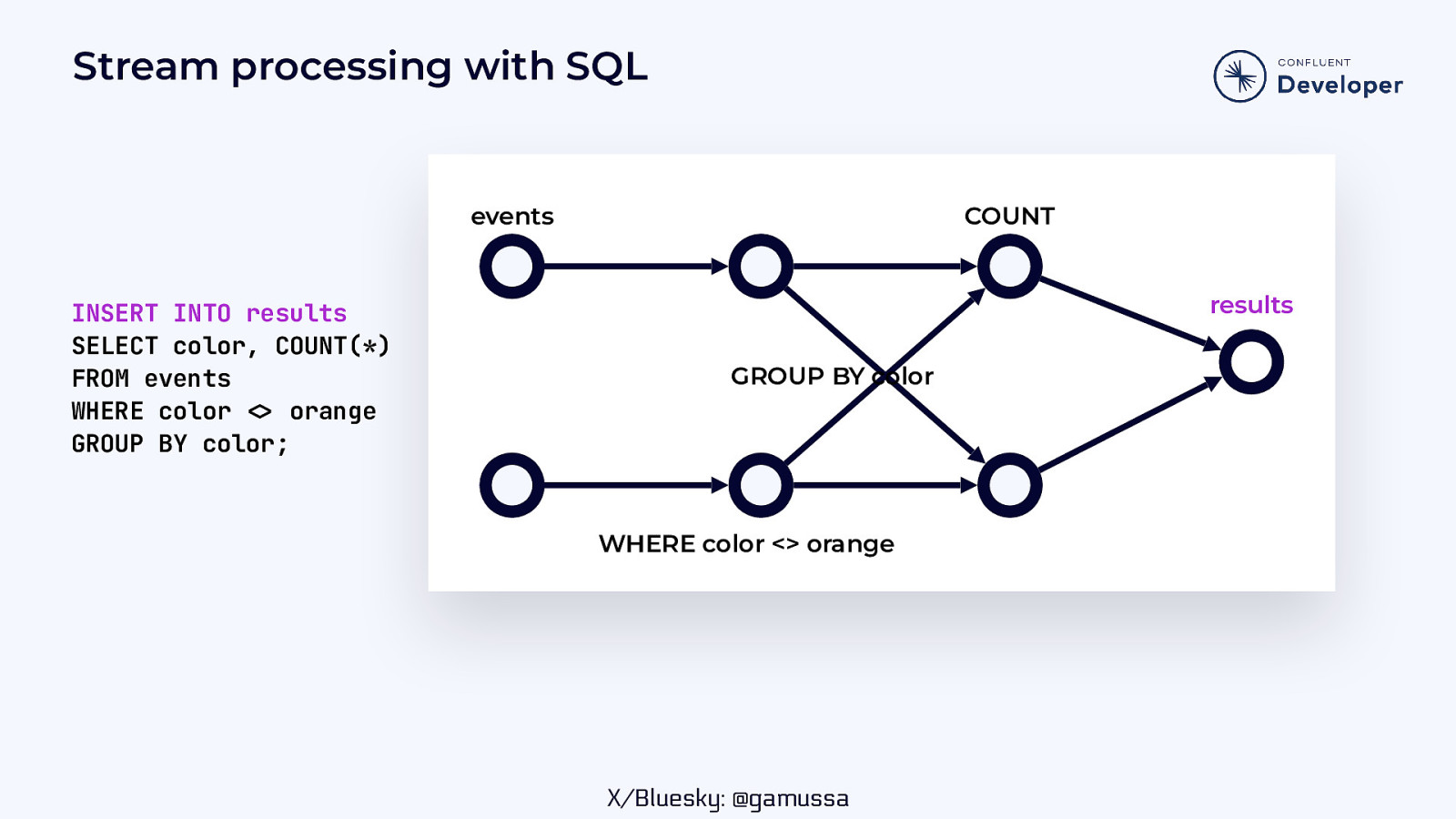

Stream processing with SQL events INSERT INTO results SELECT color, COUNT(*) FROM events WHERE color orange GROUP BY color; COUNT results GROUP BY color WHERE color <> orange

< X/Bluesky: @gamussa

Stream processing with SQL events INSERT INTO results SELECT color, COUNT(*) FROM events WHERE color orange GROUP BY color; COUNT results GROUP BY color WHERE color <> orange

< X/Bluesky: @gamussa

Stream processing with SQL events COUNT results INSERT INTO results SELECT color, COUNT(*) FROM events WHERE color orange GROUP BY color; GROUP BY color events WHERE color <> orange

< X/Bluesky: @gamussa

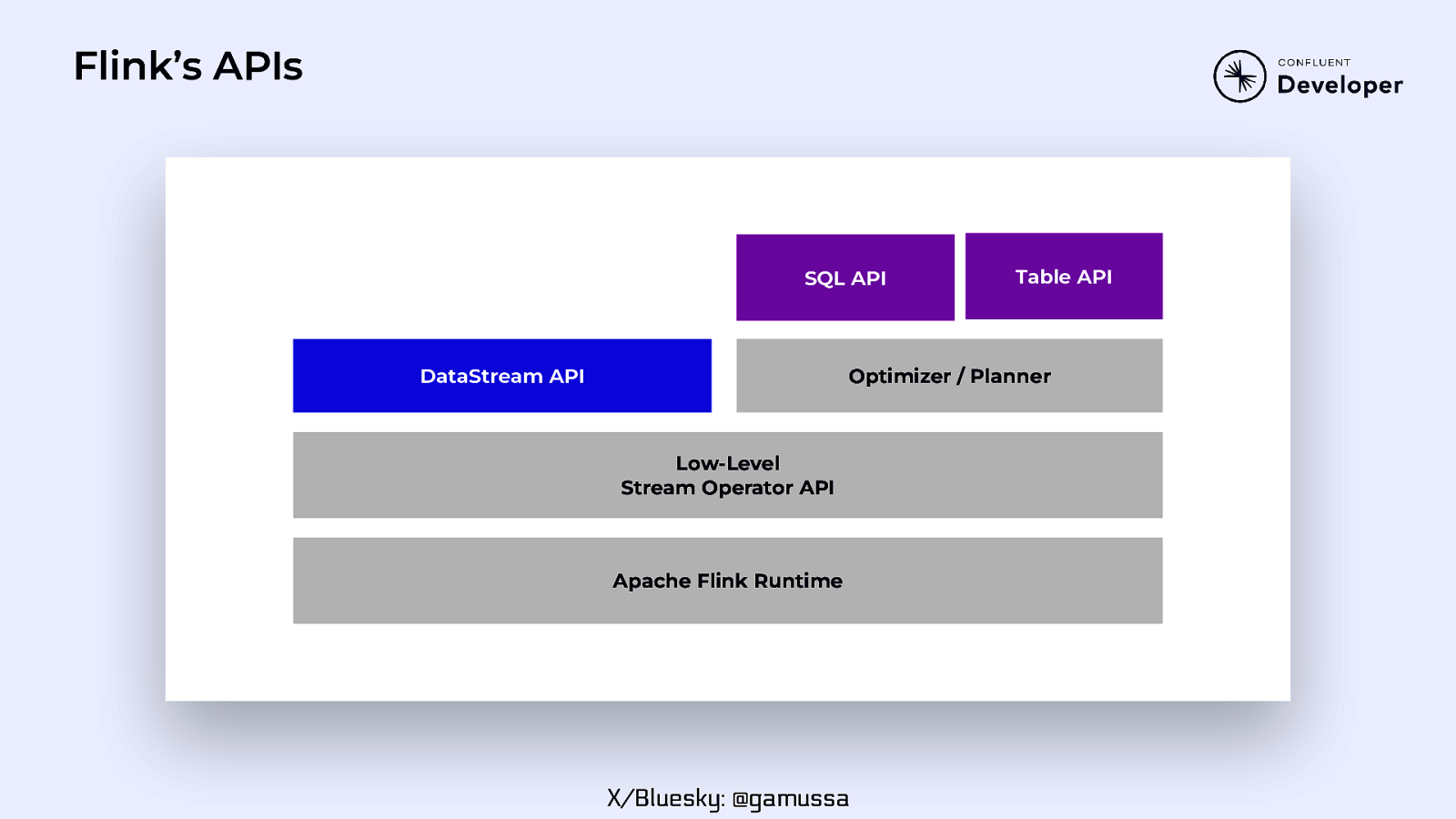

Flink’s APIs SQL API Table API Optimizer / Planner DataStream API Low-Level Stream Operator API Apache Flink Runtime X/Bluesky: @gamussa

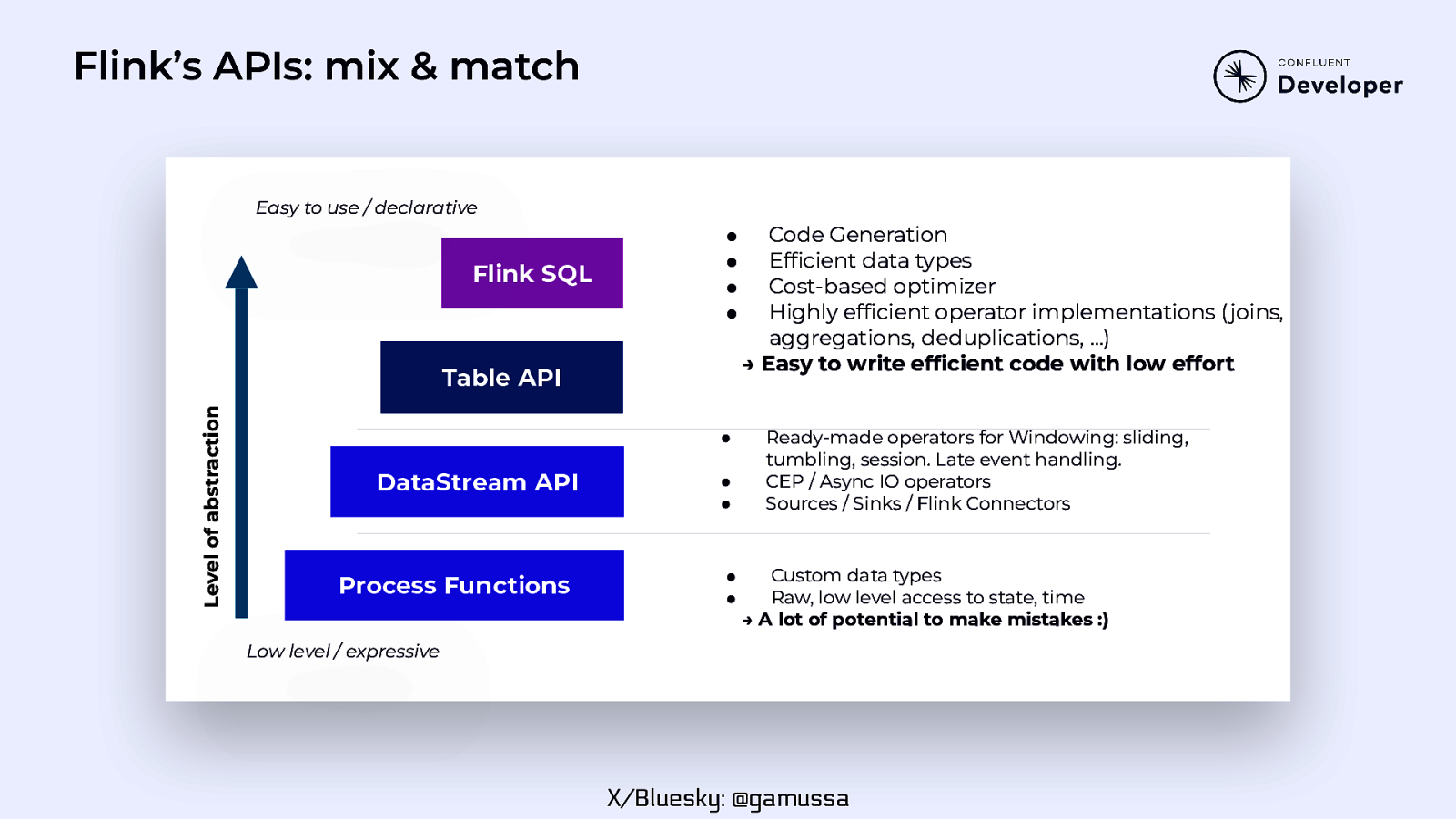

Flink’s APIs: mix & match Easy to use / declarative Flink SQL ● ● ● ● Level of abstraction Table API ● DataStream API Process Functions ● ● ● ● Code Generation Efficient data types Cost-based optimizer Highly efficient operator implementations (joins, aggregations, deduplications, …) → Easy to write efficient code with low effort Ready-made operators for Windowing: sliding, tumbling, session. Late event handling. CEP / Async IO operators Sources / Sinks / Flink Connectors Custom data types Raw, low level access to state, time → A lot of potential to make mistakes :) Low level / expressive X/Bluesky: @gamussa

State Management

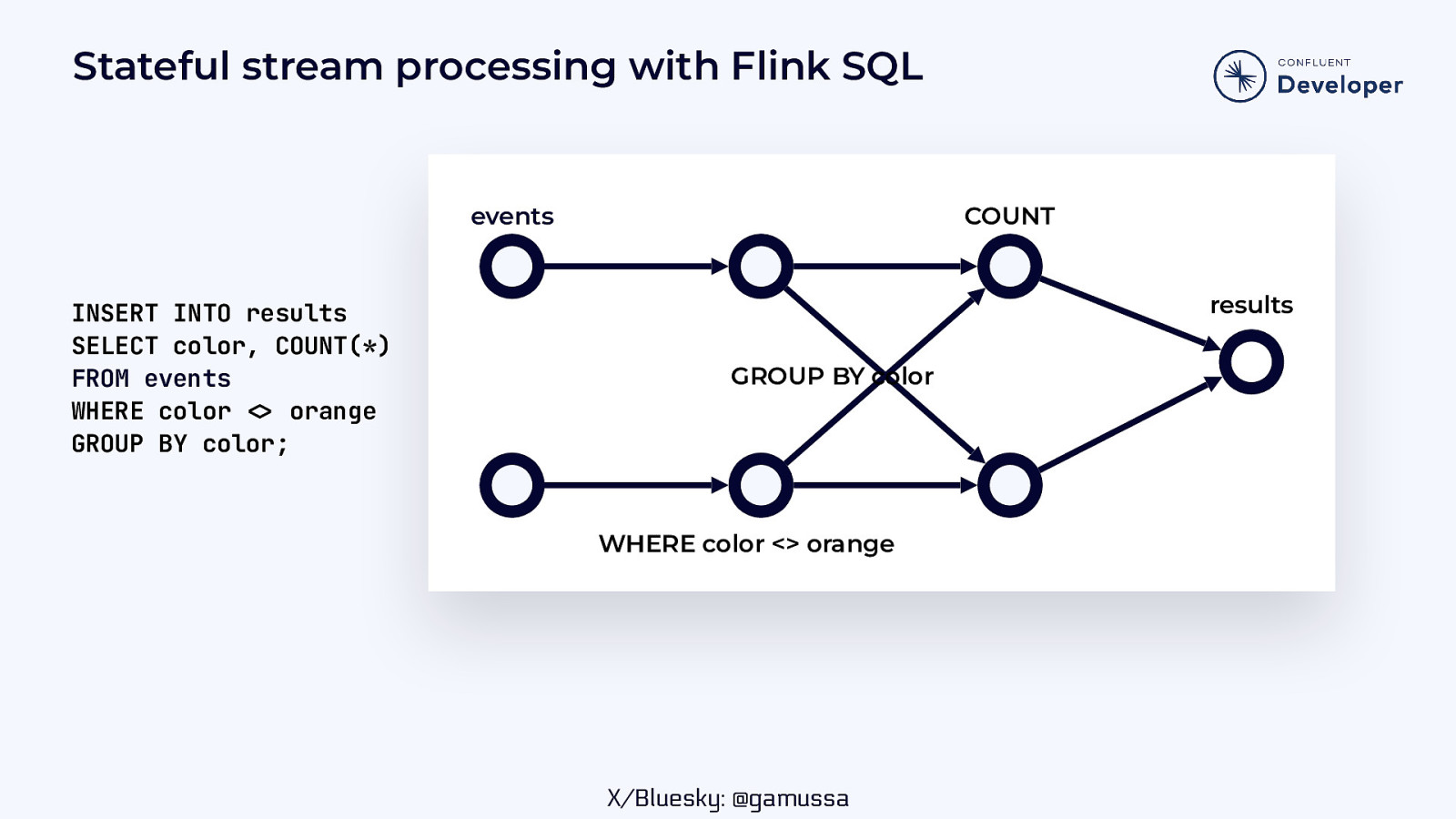

Stateful stream processing with Flink SQL events INSERT INTO results SELECT color, COUNT(*) FROM events WHERE color orange GROUP BY color; COUNT results GROUP BY color WHERE color <> orange

< X/Bluesky: @gamussa

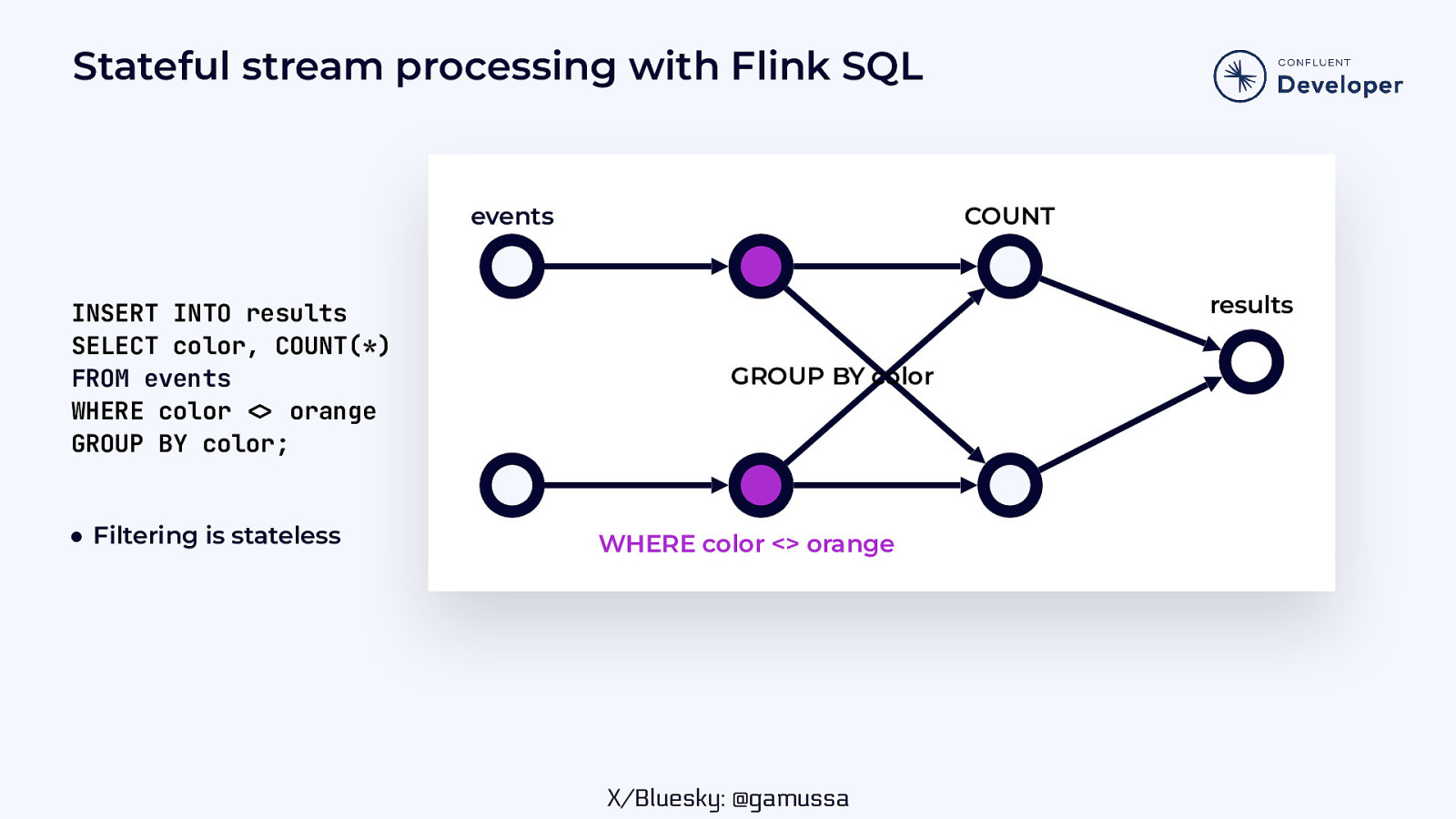

Stateful stream processing with Flink SQL events INSERT INTO results SELECT color, COUNT(*) FROM events WHERE color orange GROUP BY color; ● Filtering is stateless COUNT results GROUP BY color WHERE color <> orange

< X/Bluesky: @gamussa

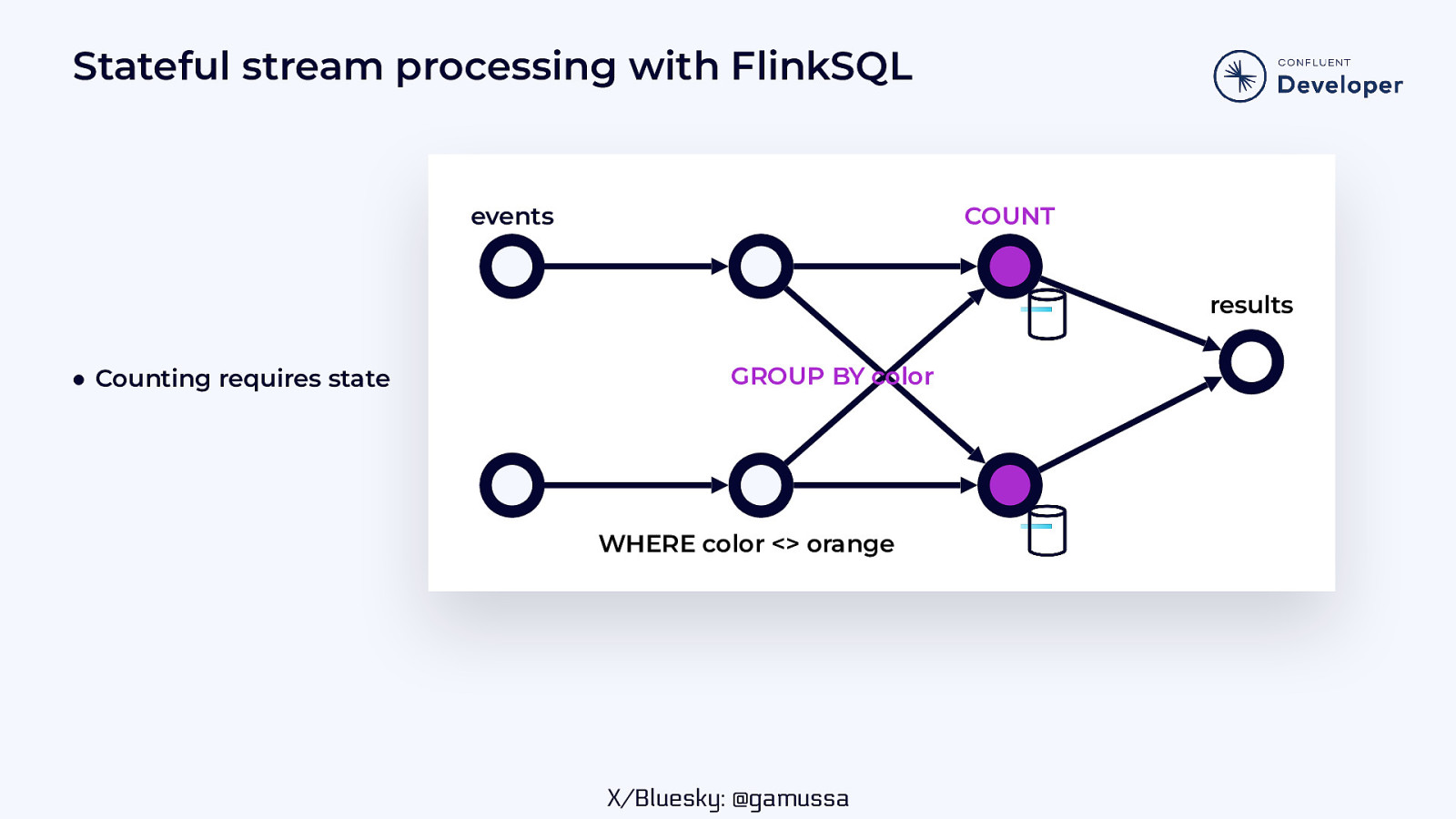

Stateful stream processing with FlinkSQL events COUNT results ● Counting requires state GROUP BY color WHERE color <> orange X/Bluesky: @gamussa

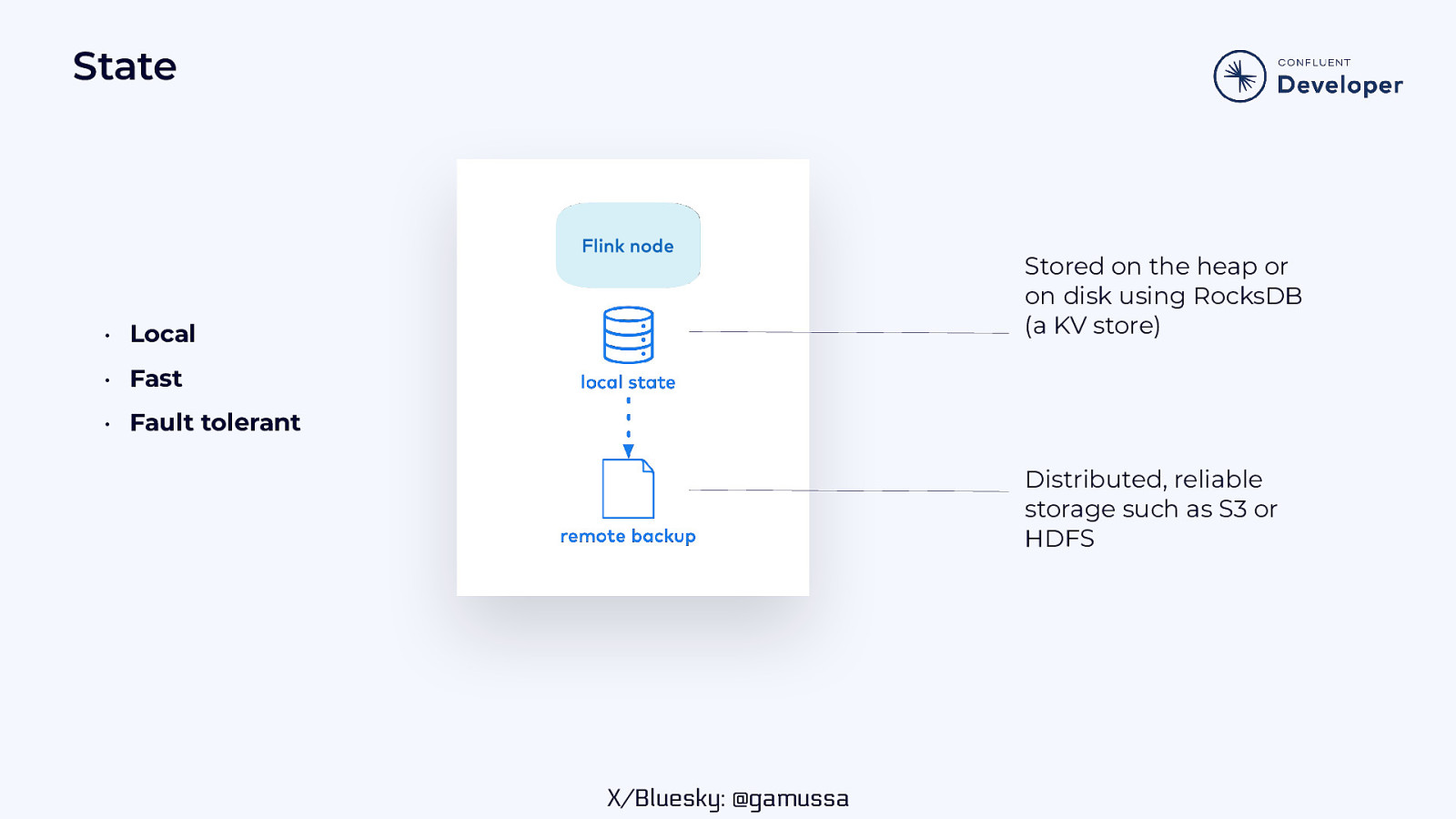

State Stored on the heap or on disk using RocksDB (a KV store) • Local • Fast • Fault tolerant Distributed, reliable storage such as S3 or HDFS X/Bluesky: @gamussa

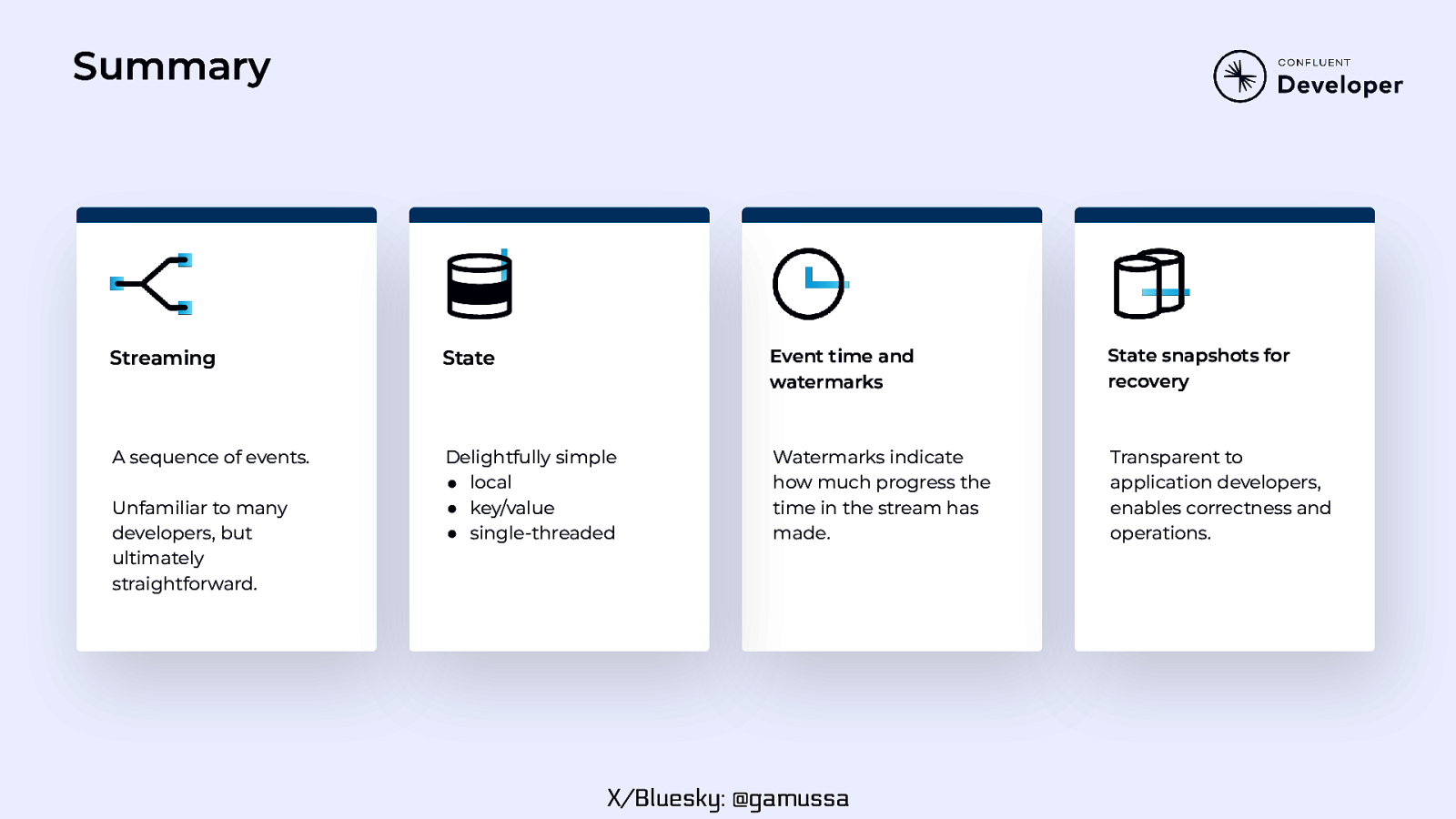

Summary Streaming State Event time and watermarks State snapshots for recovery A sequence of events. Delightfully simple ● local ● key/value ● single-threaded Watermarks indicate how much progress the time in the stream has made. Transparent to application developers, enables correctness and operations. Unfamiliar to many developers, but ultimately straightforward. X/Bluesky: @gamussa

Demo Time?! X/Bluesky: @gamussa

As Always Have a Nice Day X/Bluesky: @gamussa Github: @gamussa LinkedIn: vikgamov https://gamov.dev/rel http://gamov.dev/YouTube X and Bluesky: @gamussa
