Painting Painting With With the theWeb Web →Matthias Ott Beyond Tellerrand Düsseldorf 2025
A presentation at beyond tellerrand Düsseldorf 2025 in May 2025 in Düsseldorf, Germany by Matthias Ott
Painting Painting With With the theWeb Web →Matthias Ott Beyond Tellerrand Düsseldorf 2025
! Matthias Ott User Experience Designer Web Design Engineer Teacher for Interface Prototyping, Muthesius University of Fine Arts and Design @matthiasott@mastodon.social https://matthiasott.com

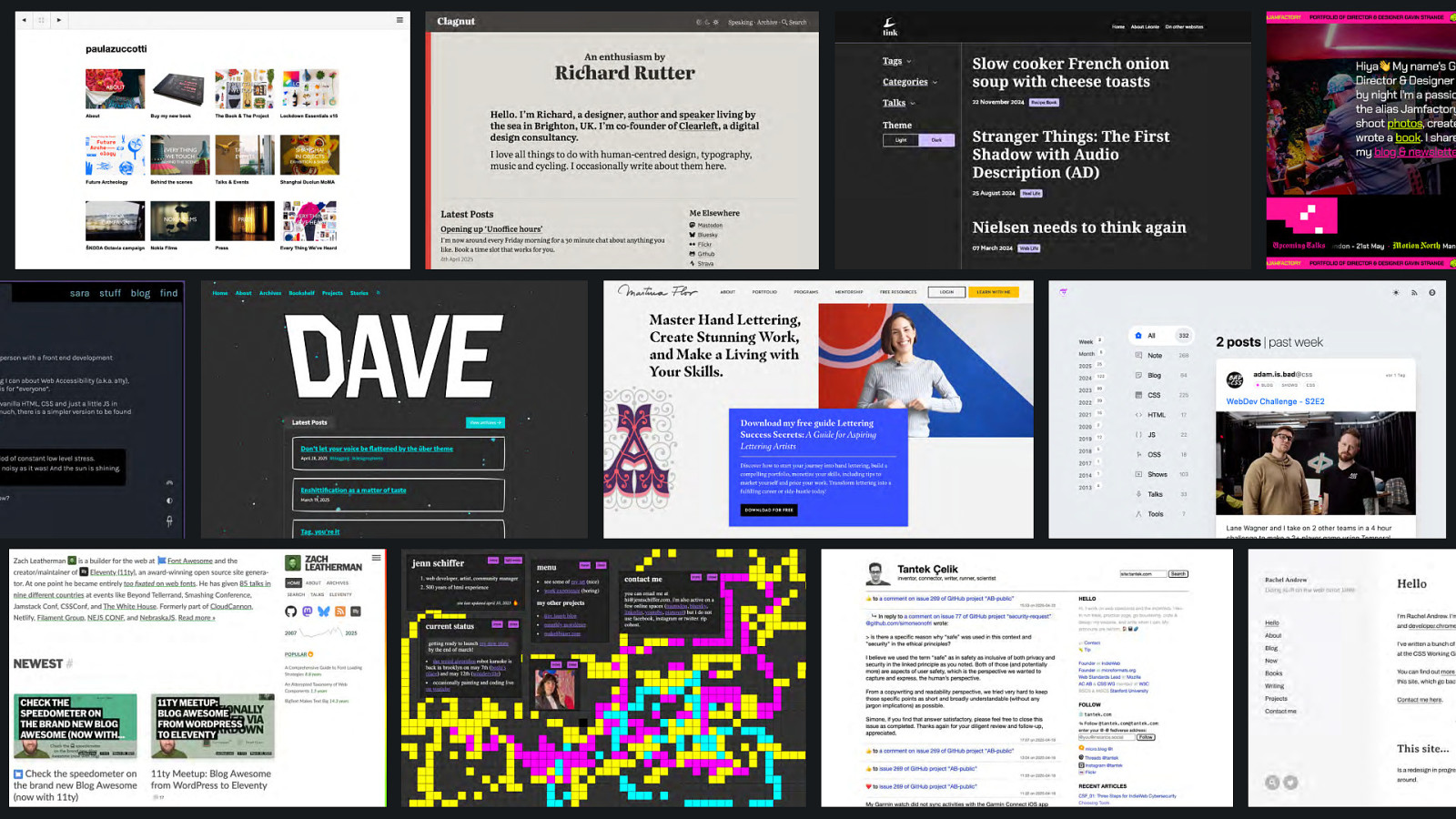

ow n e t i s . b e w yo u r
The ultimate creative process. A constant conversation.
The Canvas

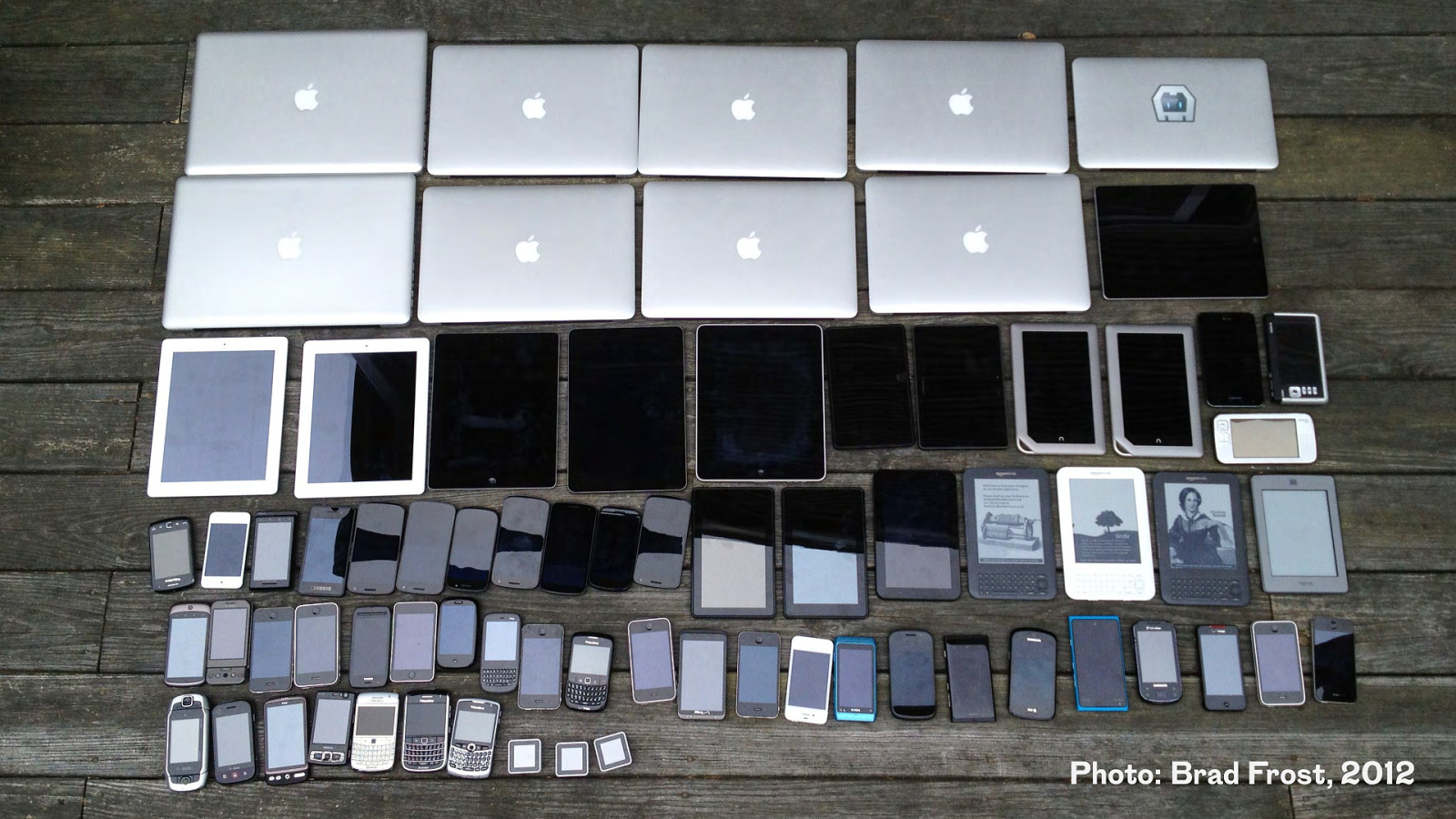

Photo: Brad Frost, 2012

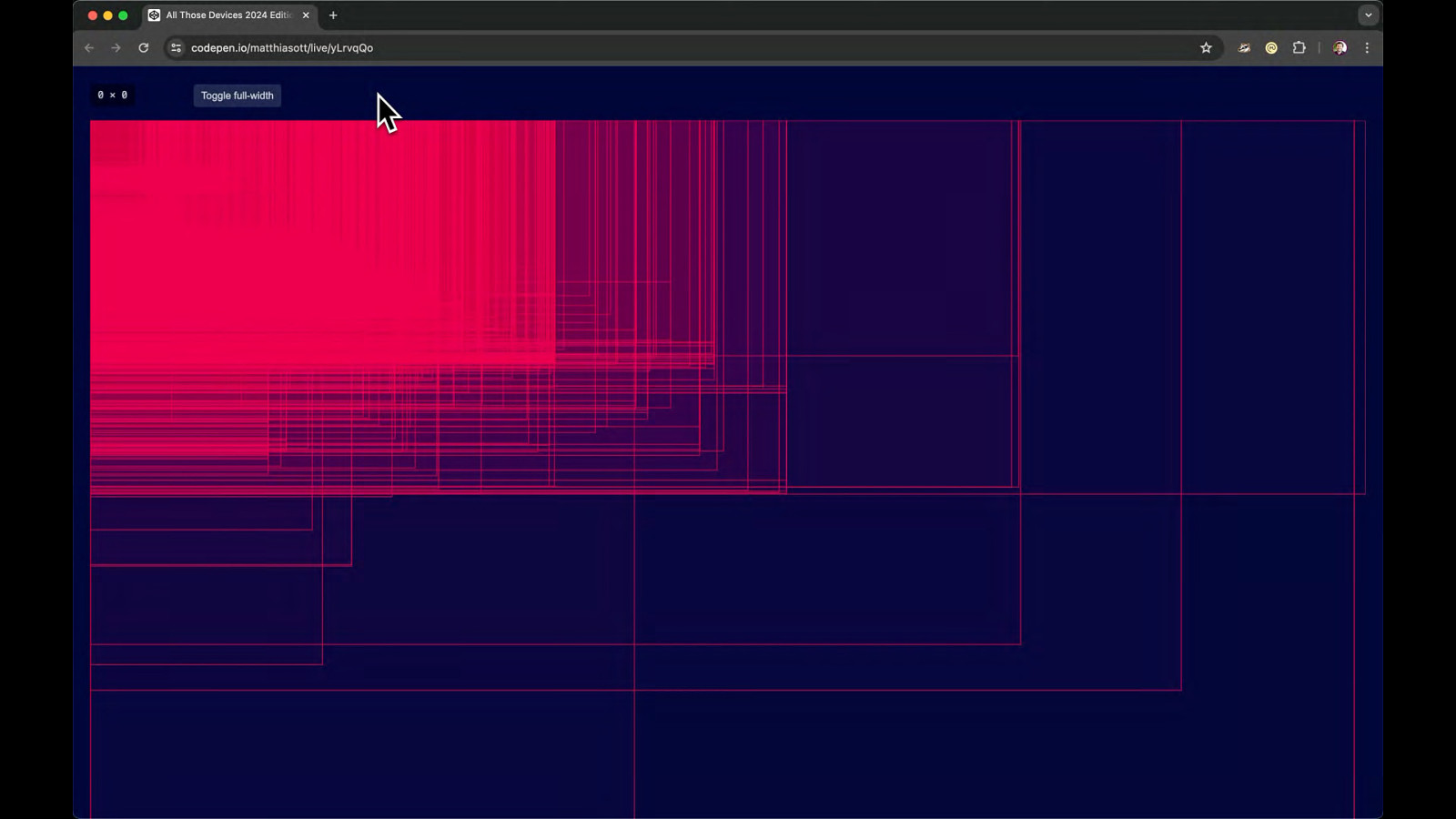

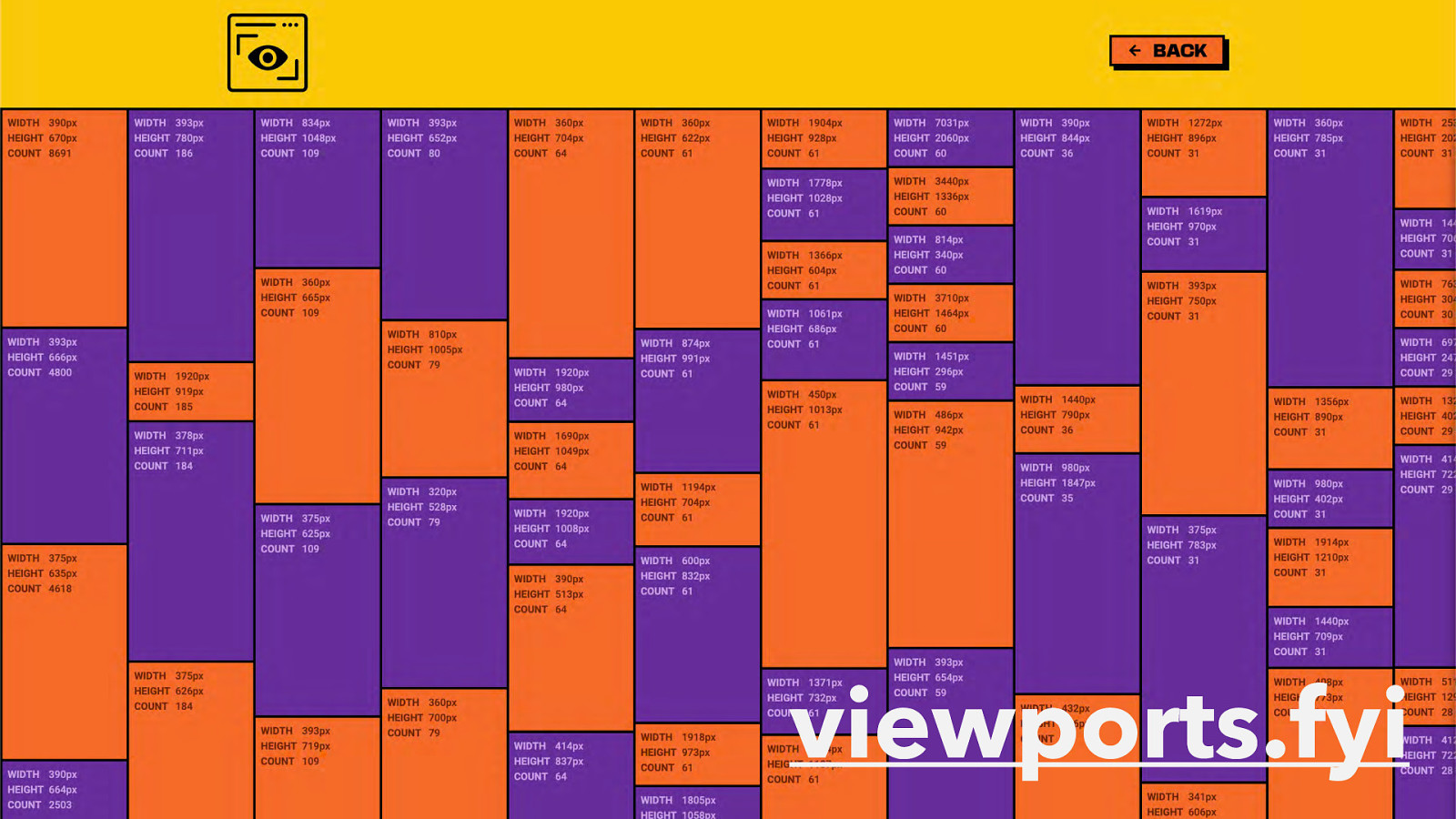

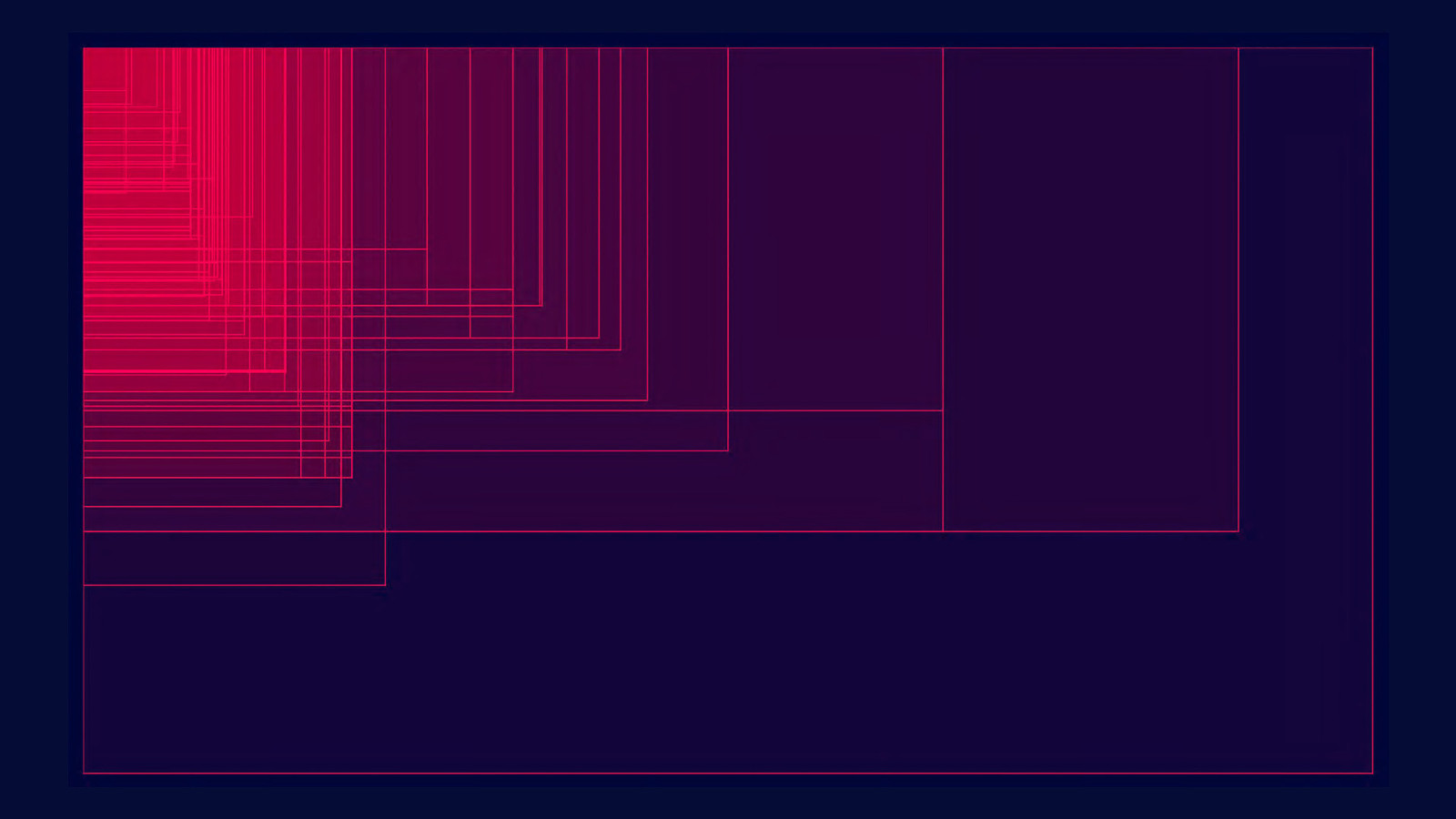

viewports.fyi

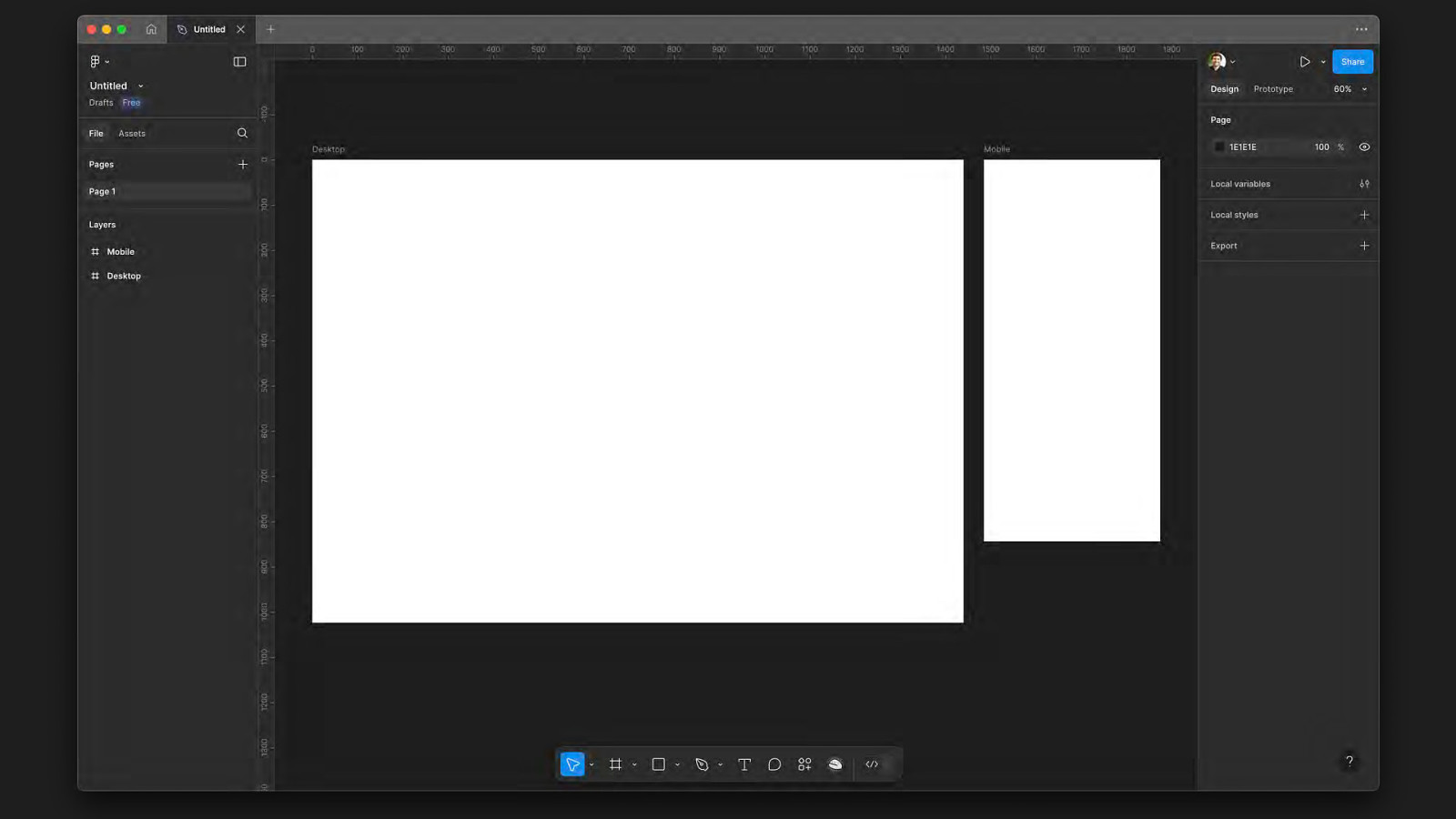

We are still static painting pretty pictures of websites
We are still static painting pretty pictures of components websites
The Material
We have a broken relationship with the material

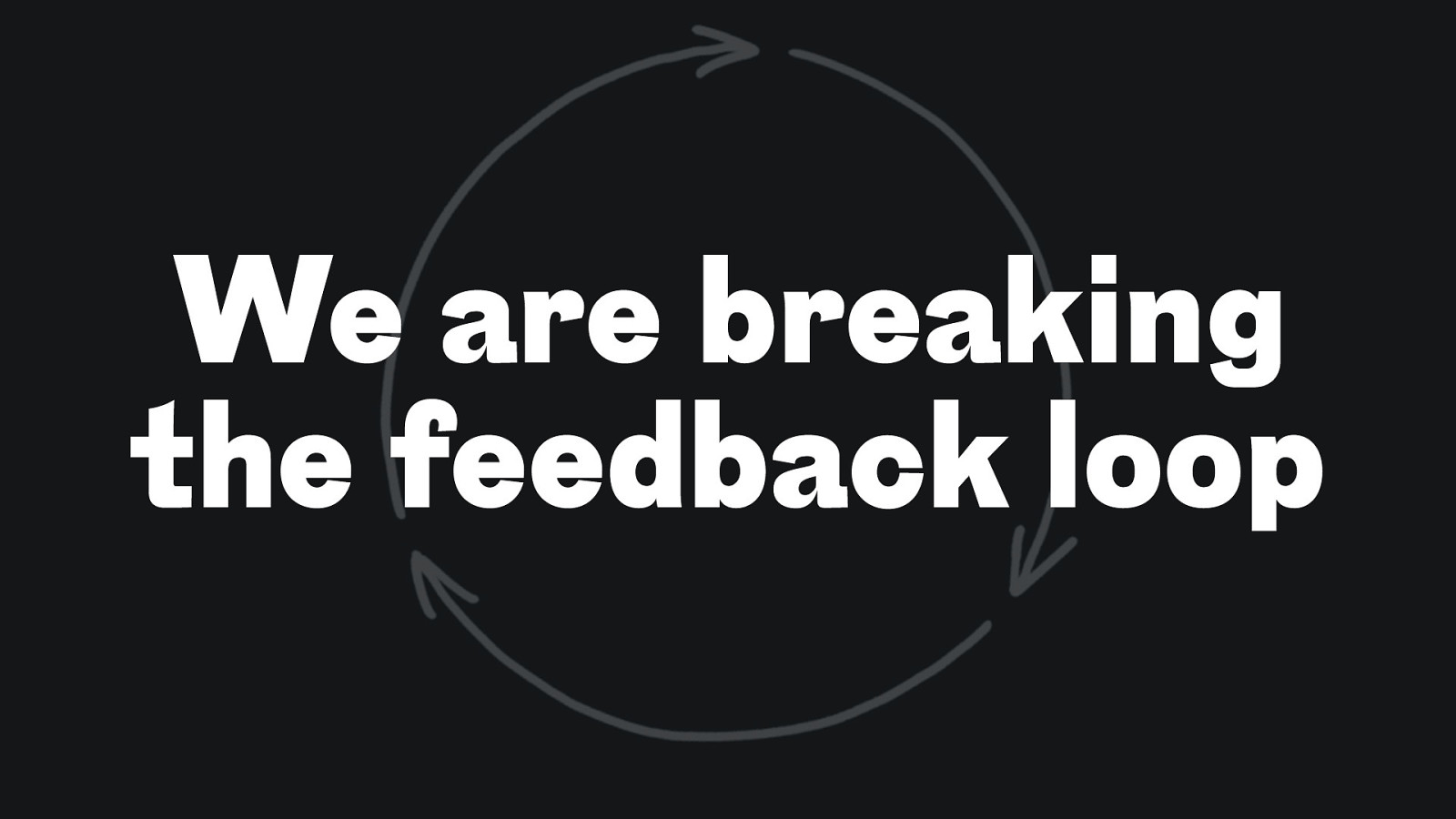

We are breaking the feedback loop

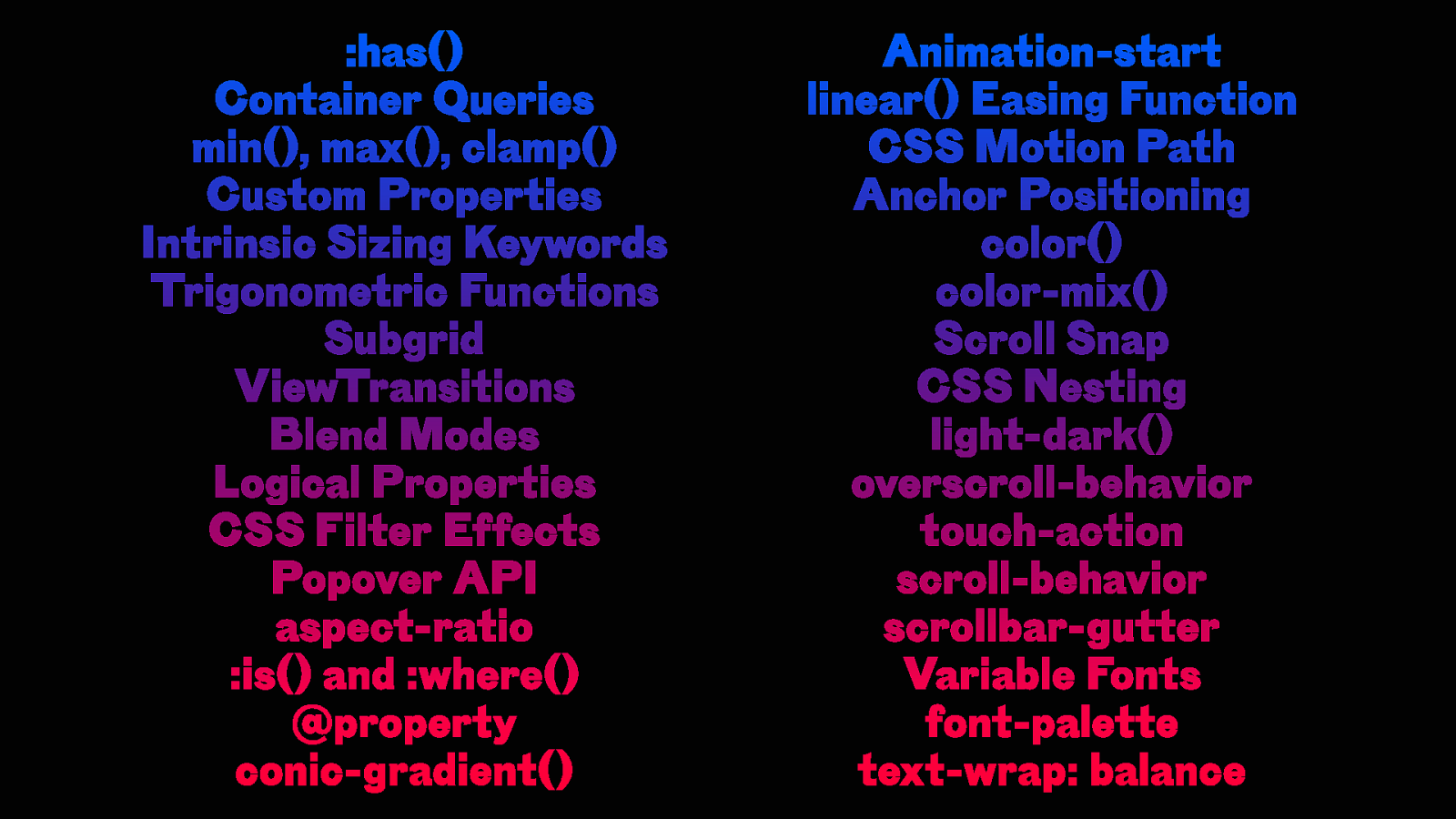

:has() Container Queries min(), max(), clamp() Custom Properties Intrinsic Sizing Keywords Trigonometric Functions Subgrid ViewTransitions Blend Modes Logical Properties CSS Filter Effects Popover API aspect-ratio :is() and :where() @property conic-gradient() Animation-start linear() Easing Function CSS Motion Path Anchor Positioning color() color-mix() Scroll Snap CSS Nesting light-dark() overscroll-behavior touch-action scroll-behavior scrollbar-gutter Variable Fonts font-palette text-wrap: balance
CSS is now CSS is now the most powerful the most powerful design tool design tool for the Web. for the Web.
What designers design What’s possible with the Web platform today
“ What would happen if we stopped treating the Web like a blank canvas to paint on, and started treating it like a material to build with?” Frank Chimero, “The Web’s Grain” https://frankchimero.com/blog/2015/the-webs-grain/
The Web as a design material?

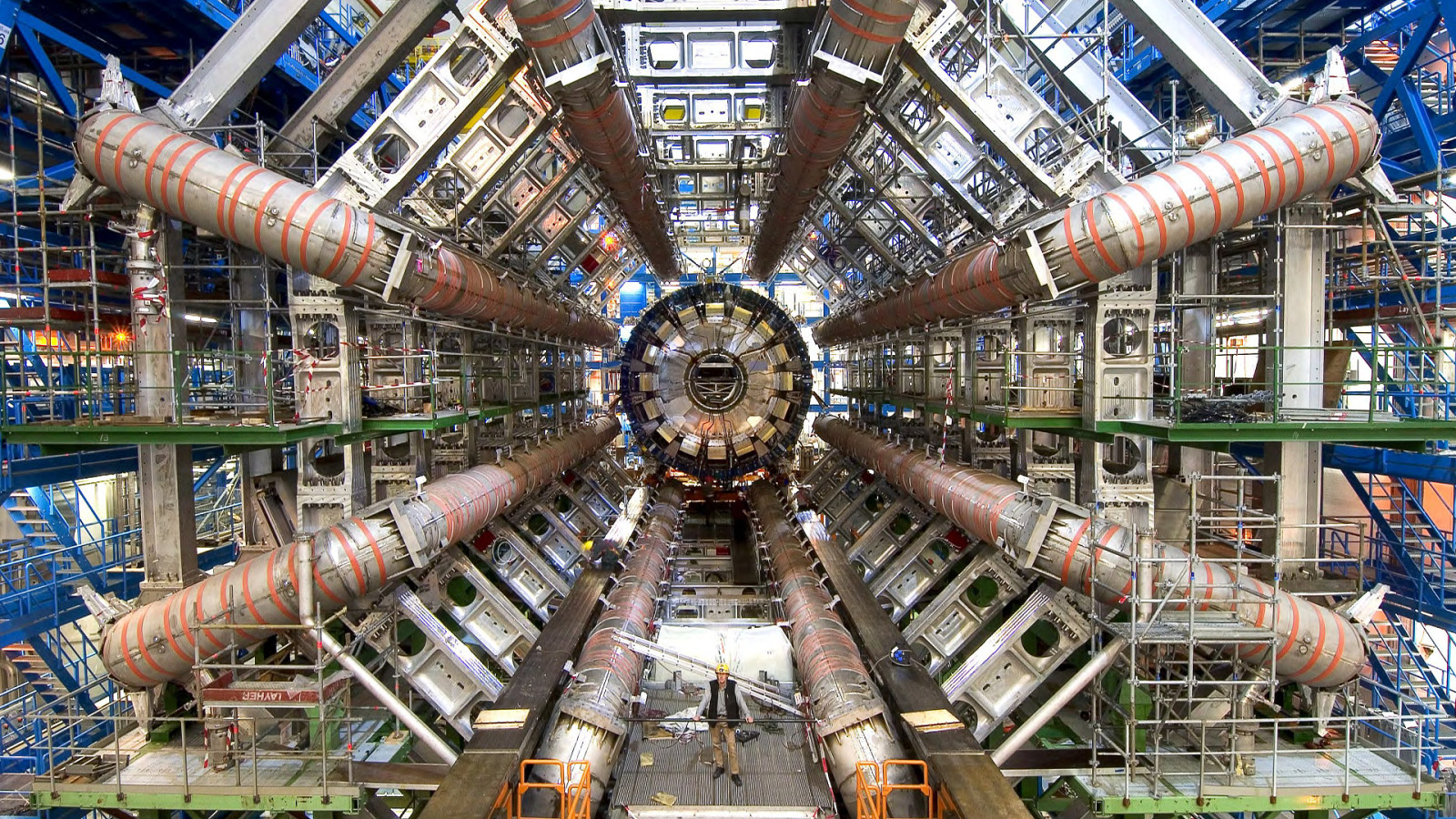

Tim Berners-Lee
Tim Berners-Lee We should work toward a universal linked information system, in which generality and portability are more important than fancy graphics techniques and complex extra facilities. Information Management: A Proposal, 1989
Tim Berners-Lee
Tim Berners-Lee Håkon Wium Lie

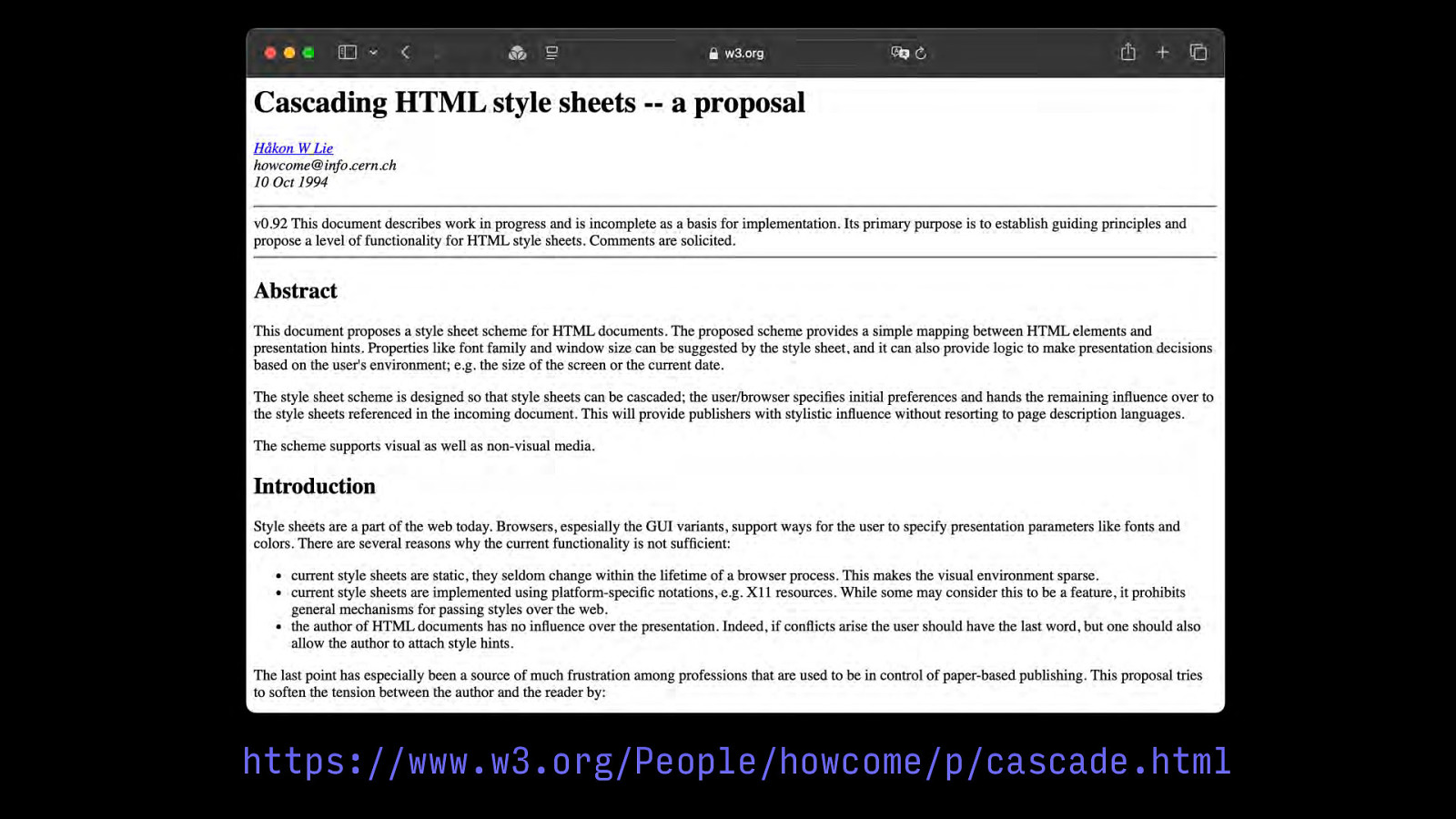

https://www.w3.org/People/howcome/p/cascade.html
“Negotiating between the needs and wishes of readers and authors was one of the main ambitions of CSS. If successful, authors would get their fair share of influence over the presentation and would not feel compelled to use presentational HTML and other tricks. Readers, on the other hand, would be served documents in a form in which they could choose between accepting the author’s suggested presentation or specify their own.” Håkon Wium Lie Cascading Style Sheets (PhD Thesis) https://www.wiumlie.no/2006/phd/

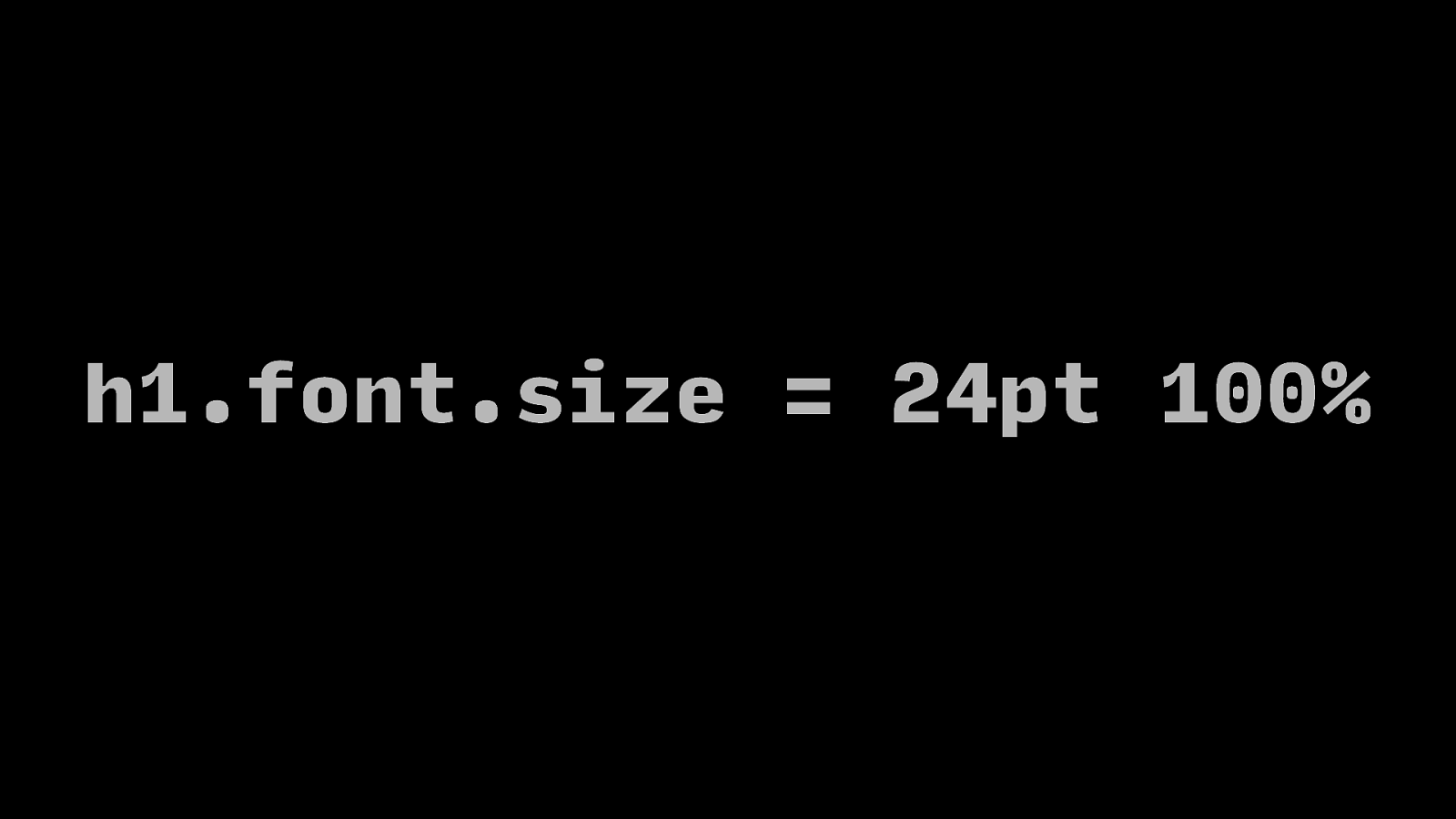

h1.font.size = 24pt 100%
24pt 100%

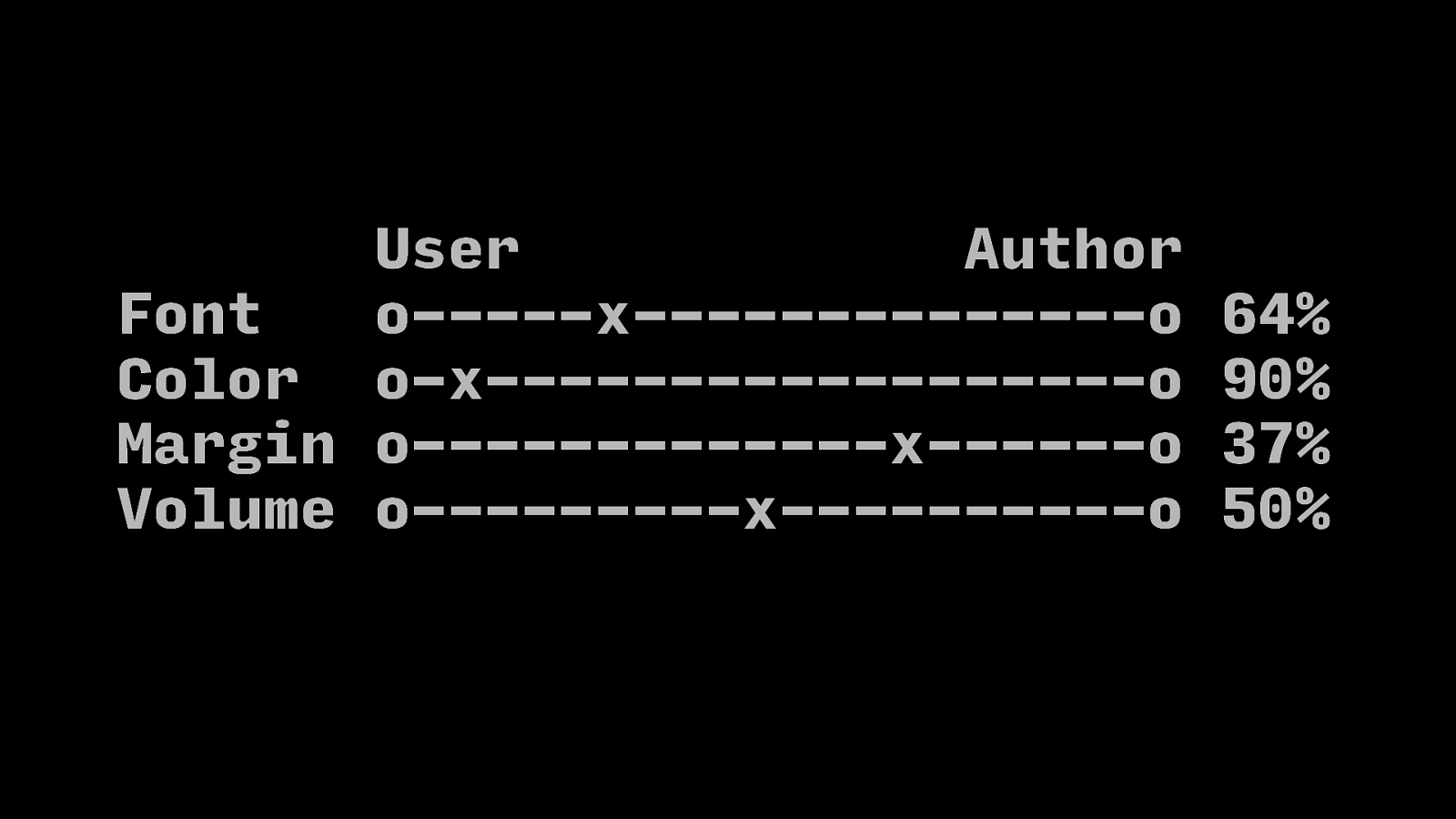

User Author Font o——-x———————o Color o-x—————————o Margin o——————-x———o Volume o————-x—————o 64% 90% 37% 50%

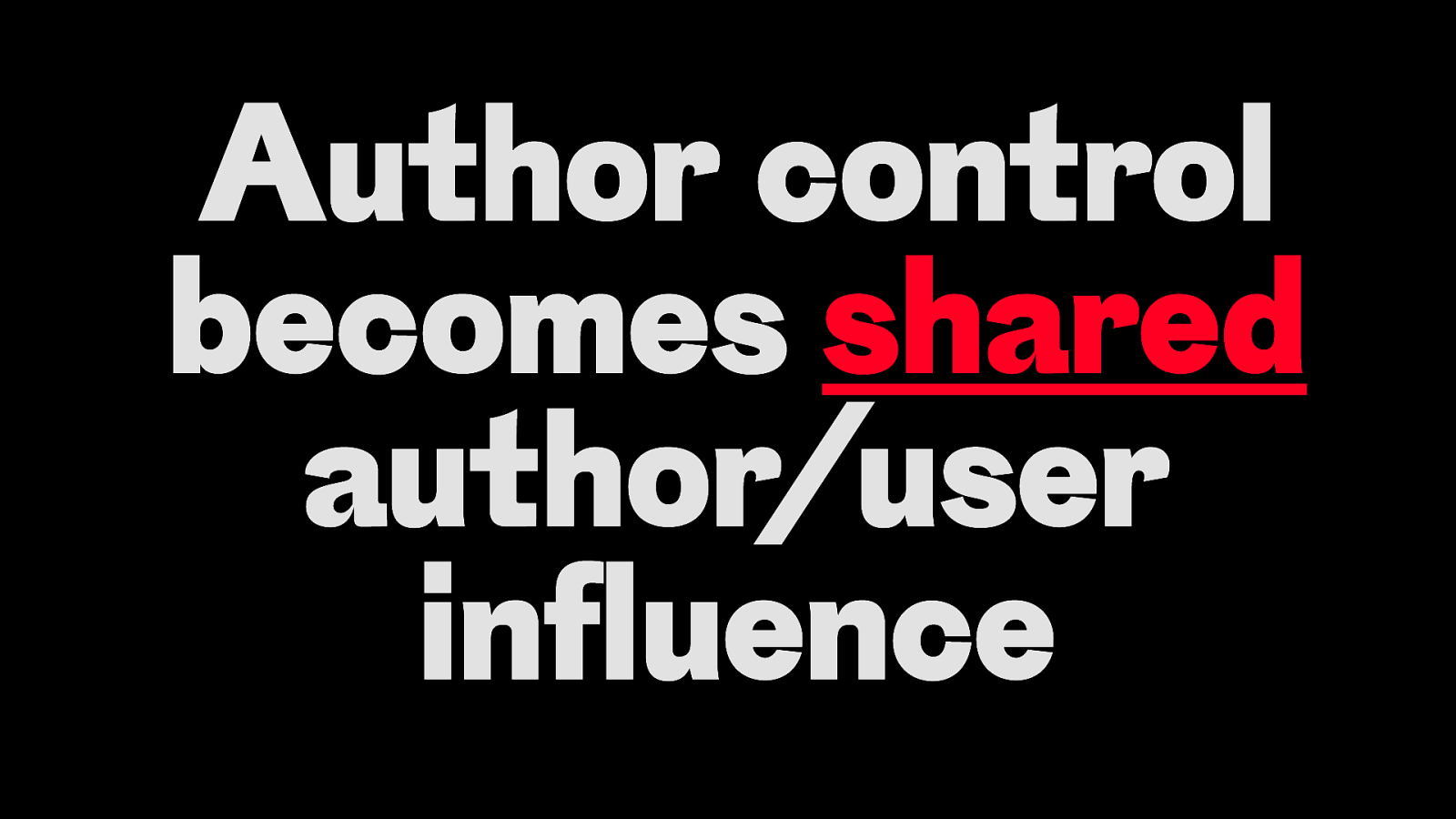

Author control becomes shared author/user influence

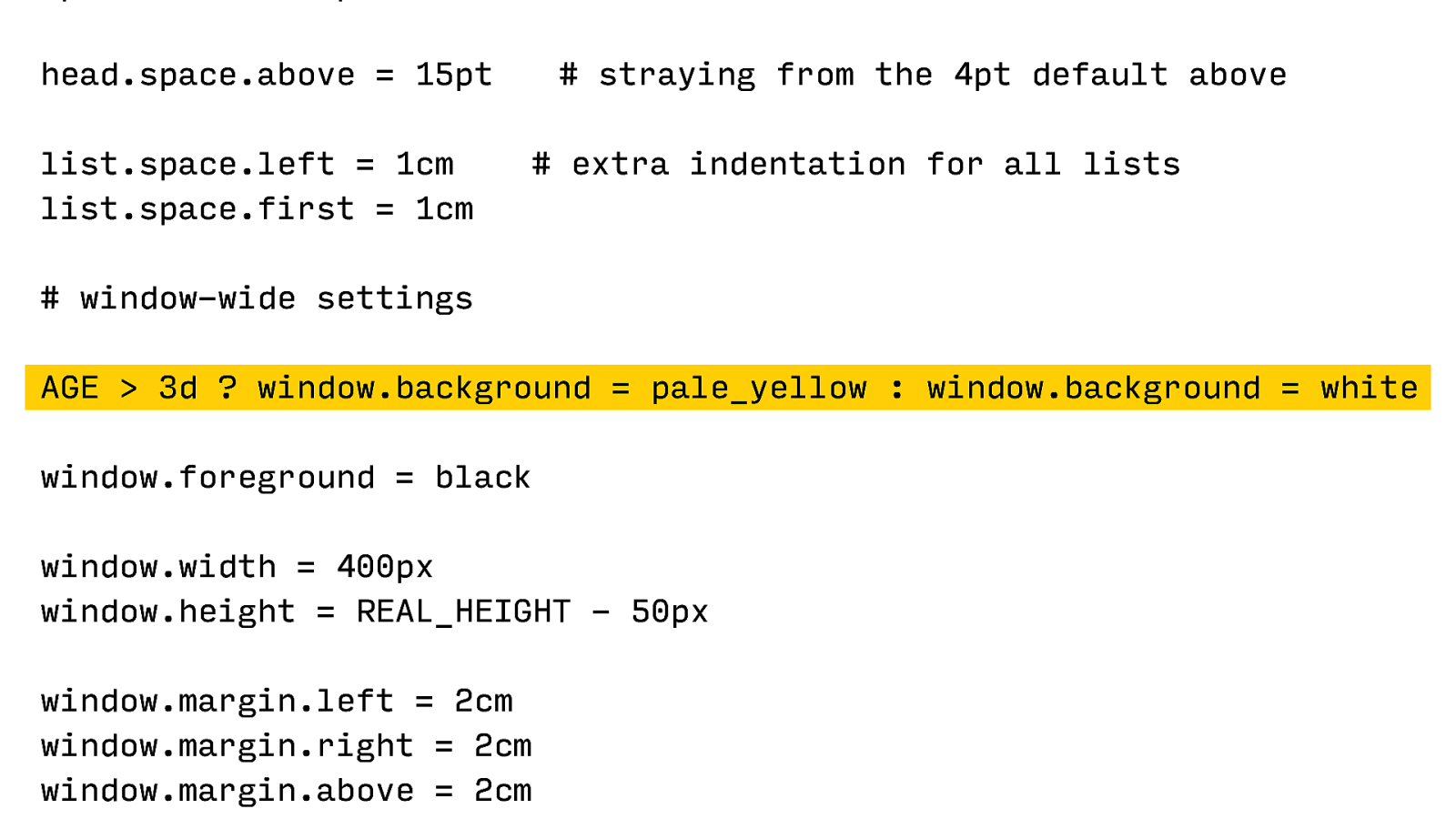

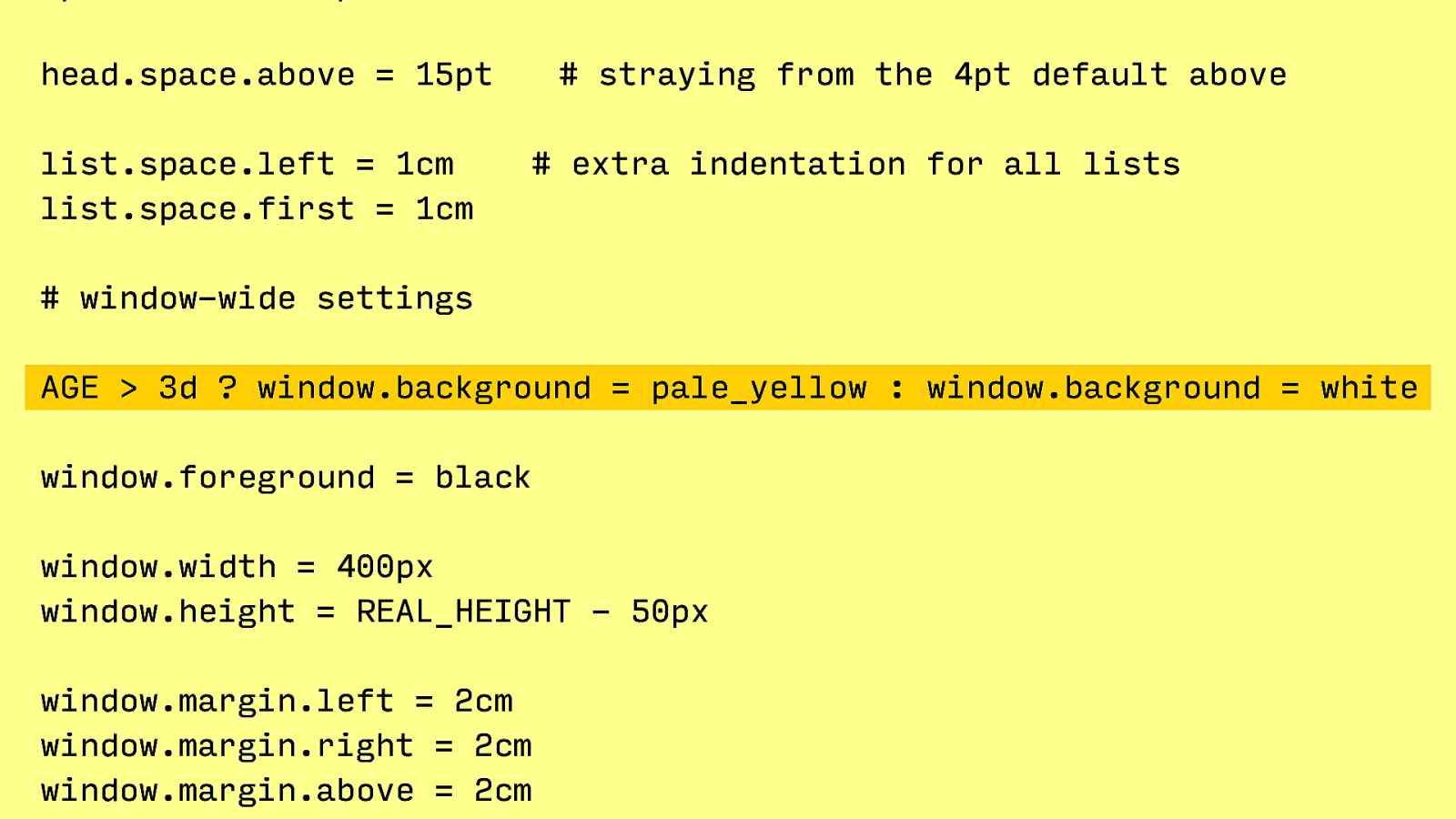

head.space.above = 15pt list.space.left = 1cm list.space.first = 1cm
head.space.above = 15pt list.space.left = 1cm list.space.first = 1cm
The browser The user Web authors

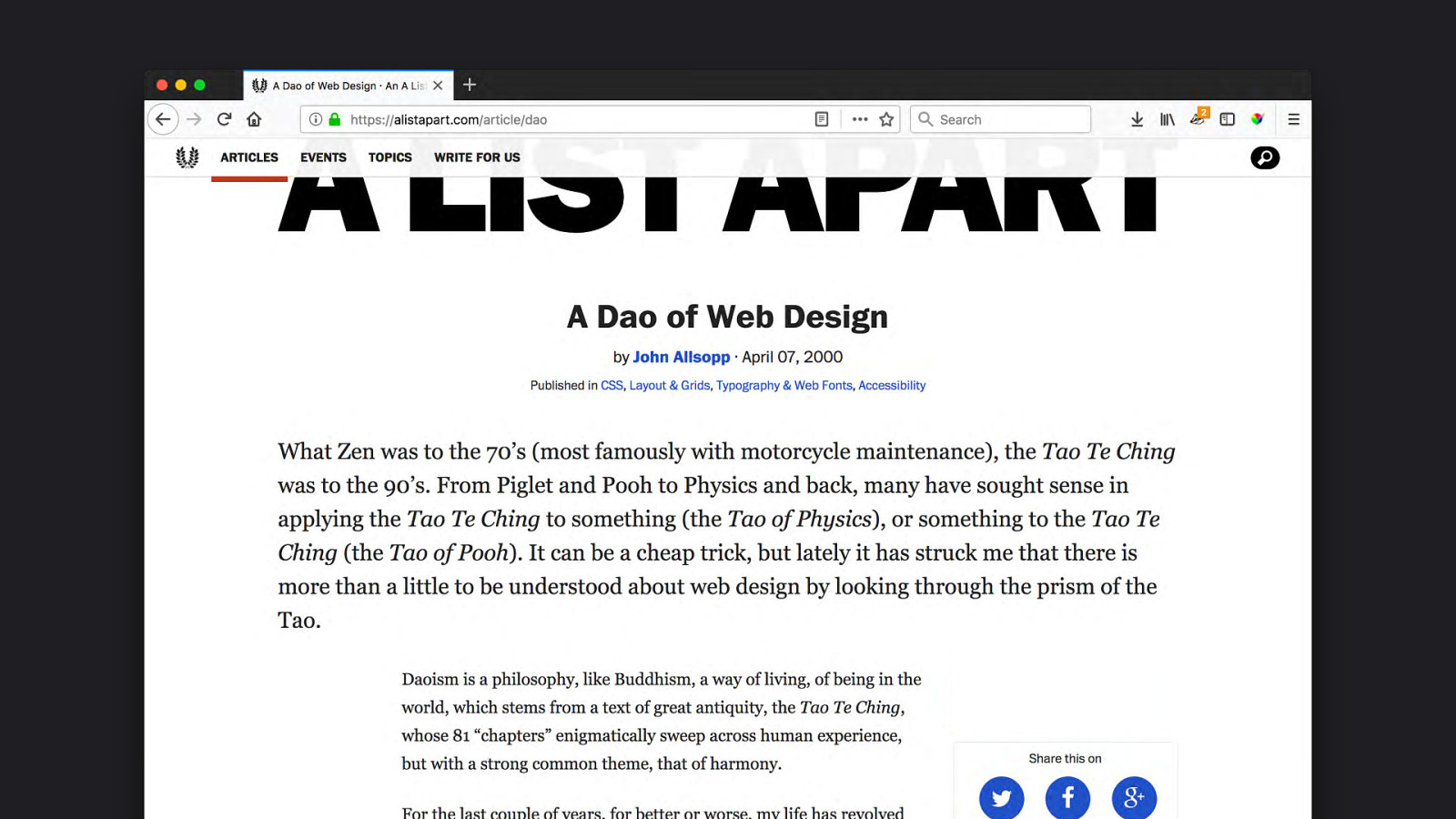

“ If you use style sheets properly, to suggest the appearance of a page, not to control the appearance of a page, and you don’t rely on your style sheet to convey information, then your pages will work fine in any browser, past or future.” John Allsopp, “A Dao of Web Design” https://alistapart.com/article/dao/
Declarative Design Jeremy Keith Photo by Stefan Nitzsche
ARIA javascript() .css <html>
Typo graphy

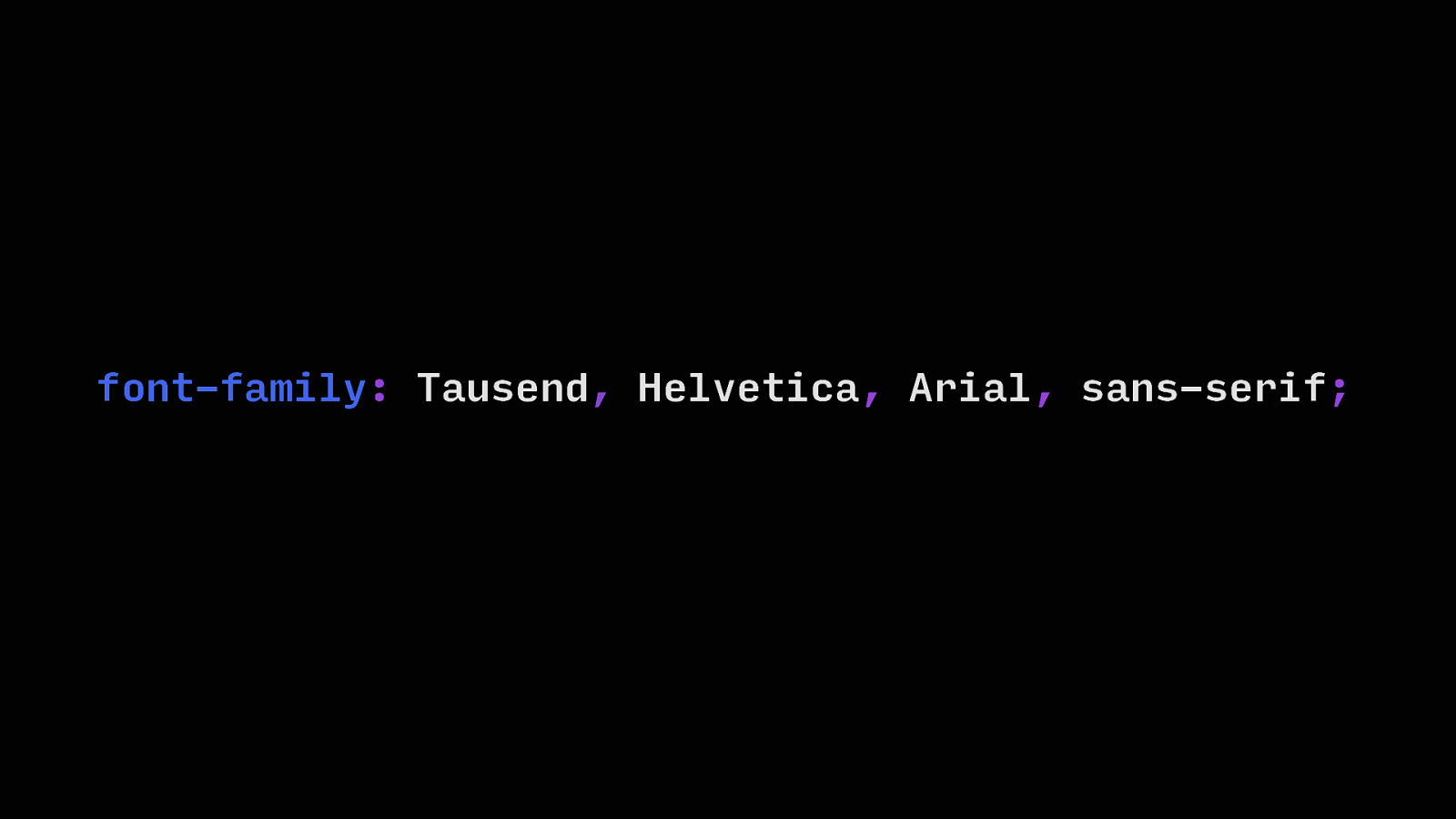

font-family: Tausend, Helvetica, Arial, sans-serif;

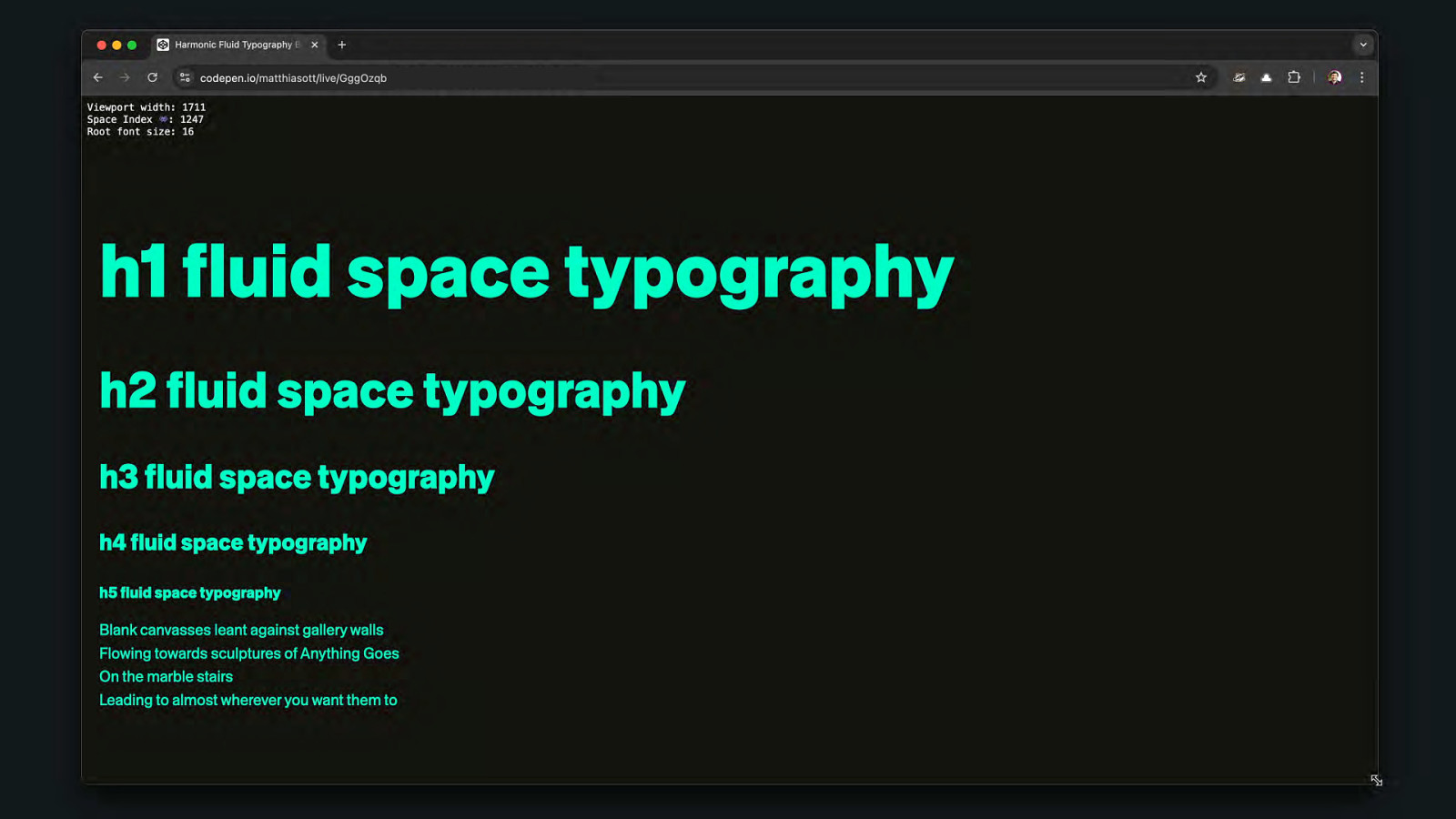

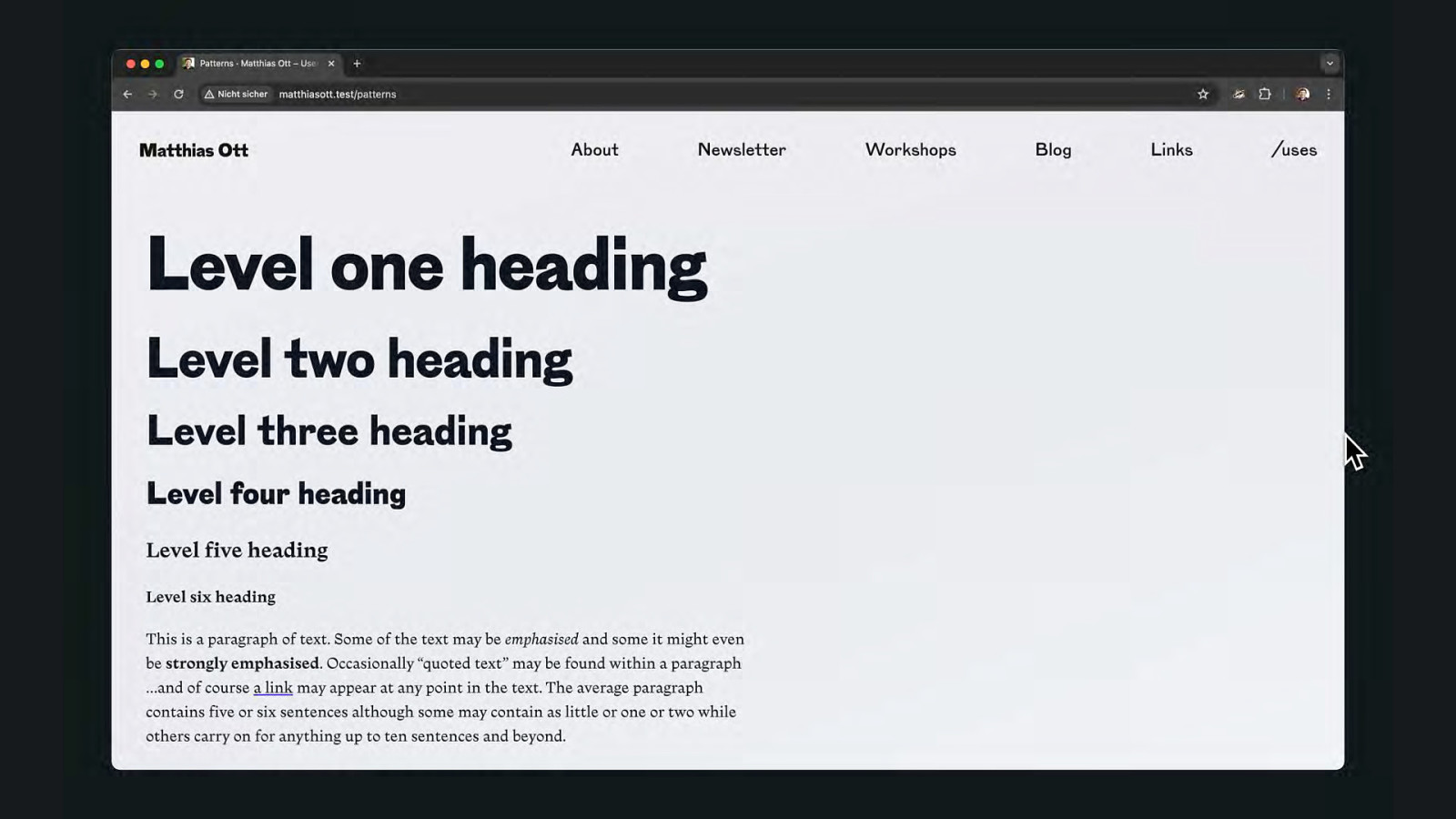

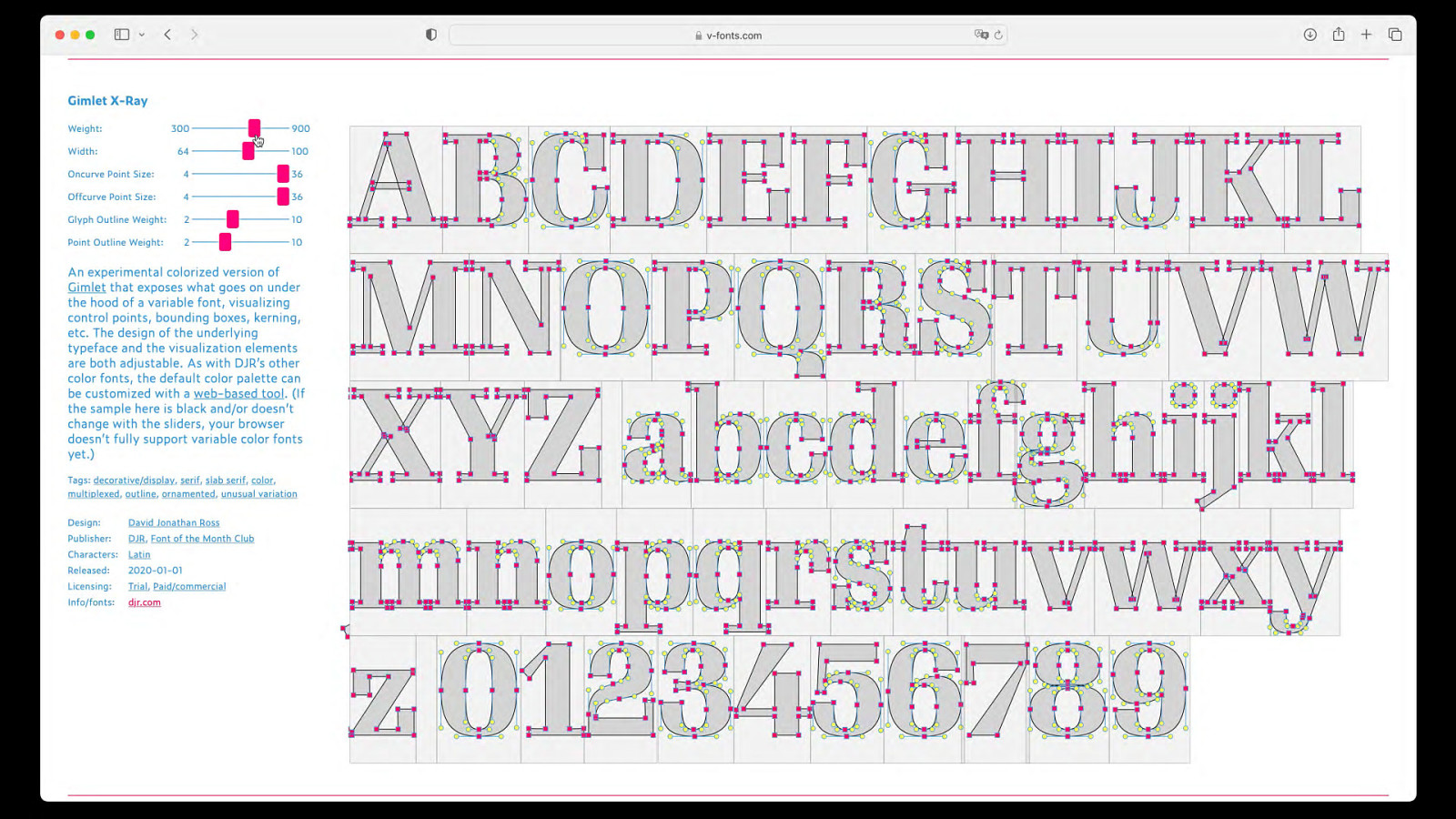

Fluid Web Typography

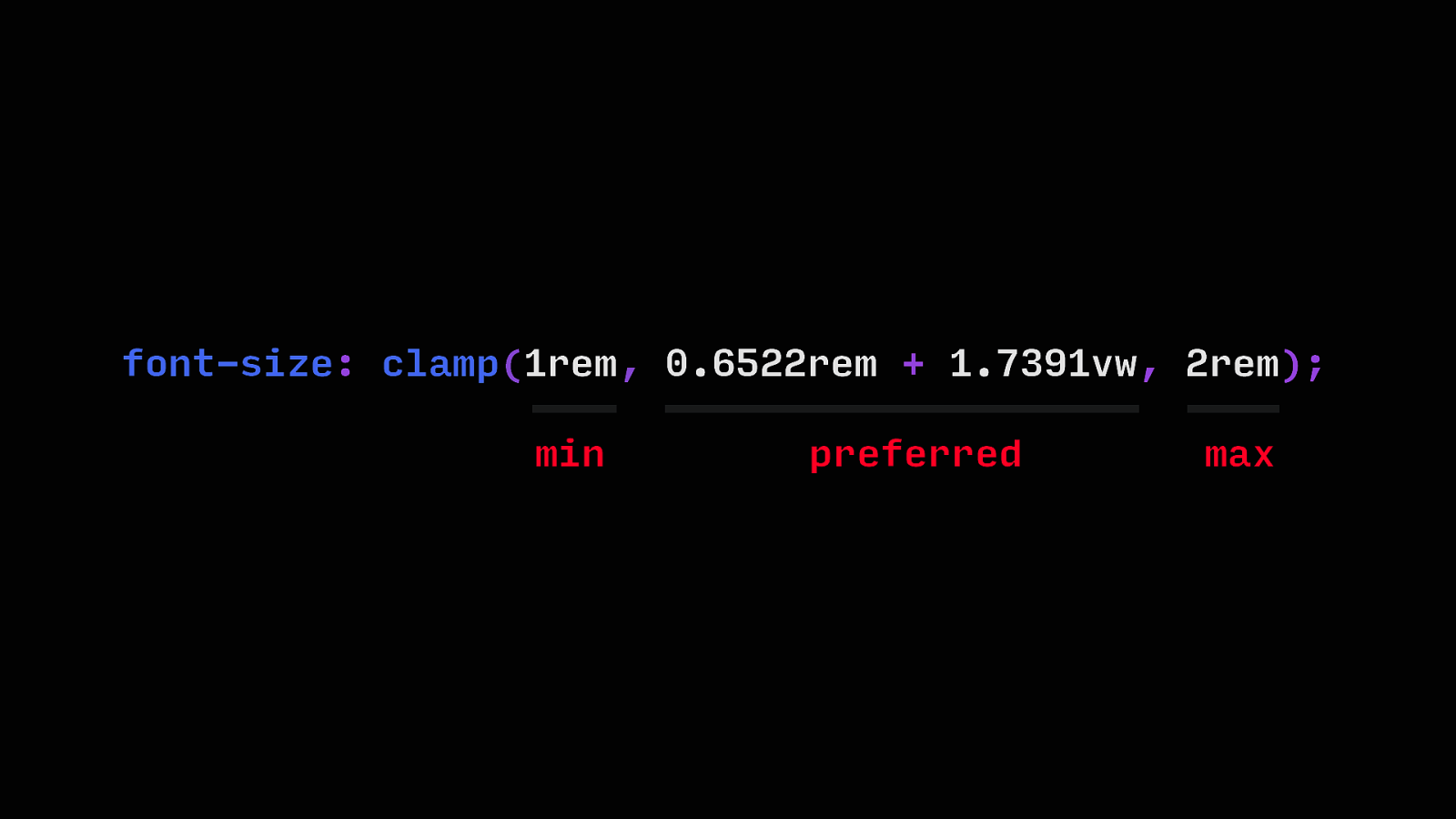

font-size: clamp(1rem, 0.6522rem + 1.7391vw, 2rem); min preferred max

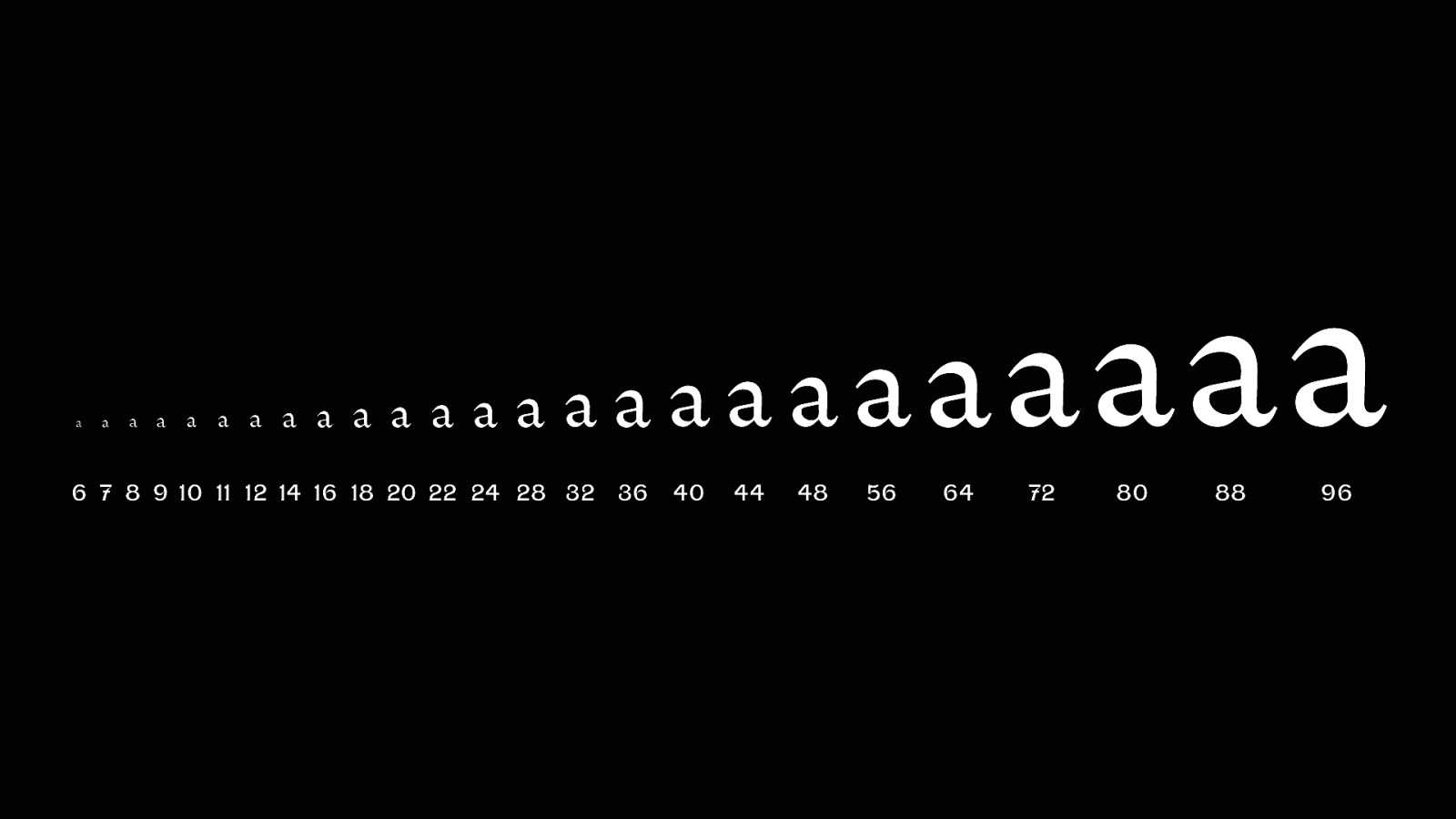

a a a a a a a a a a a a aa aaaaa 6 7 8 9 10 11 12 14 16 18 20 22 24 28 32 36 40 44 48 aaaaa 56 64 72 80 88 a 96

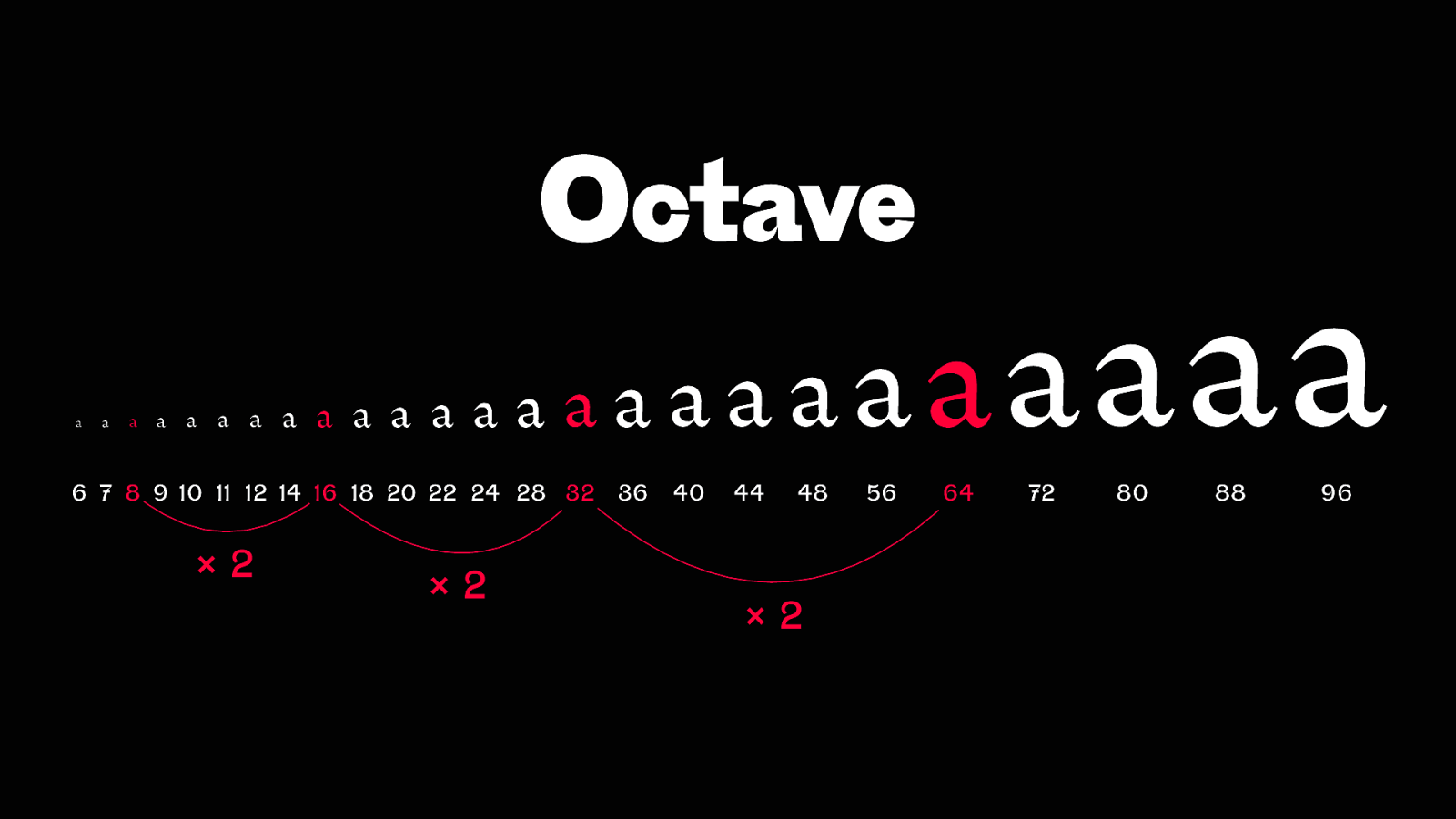

Octave a a a a a a a a a a a a aa aaaaa 6 7 8 9 10 11 12 14 16 18 20 22 24 28 32 ×2 ×2 36 40 44 48 ×2 aaaaa 56 64 72 80 88 a 96

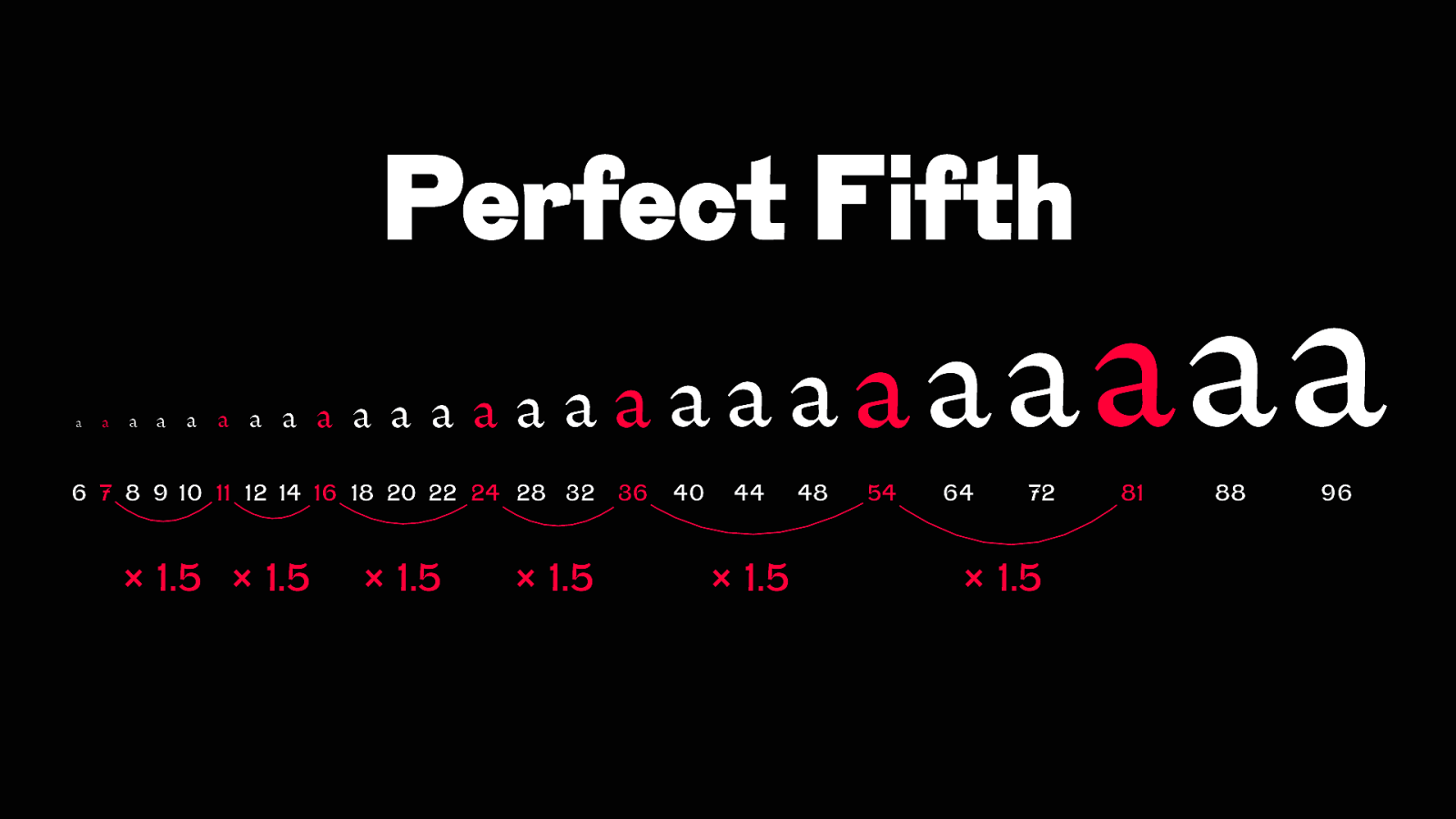

Perfect Fifth a a a a a a a a a a a a aa aaaaa 6 7 8 9 10 11 12 14 16 18 20 22 24 28 32 × 1.5 × 1.5 × 1.5 × 1.5 36 40 44 × 1.5 48 aaaa 54 64 72 × 1.5 81 aa 88 96

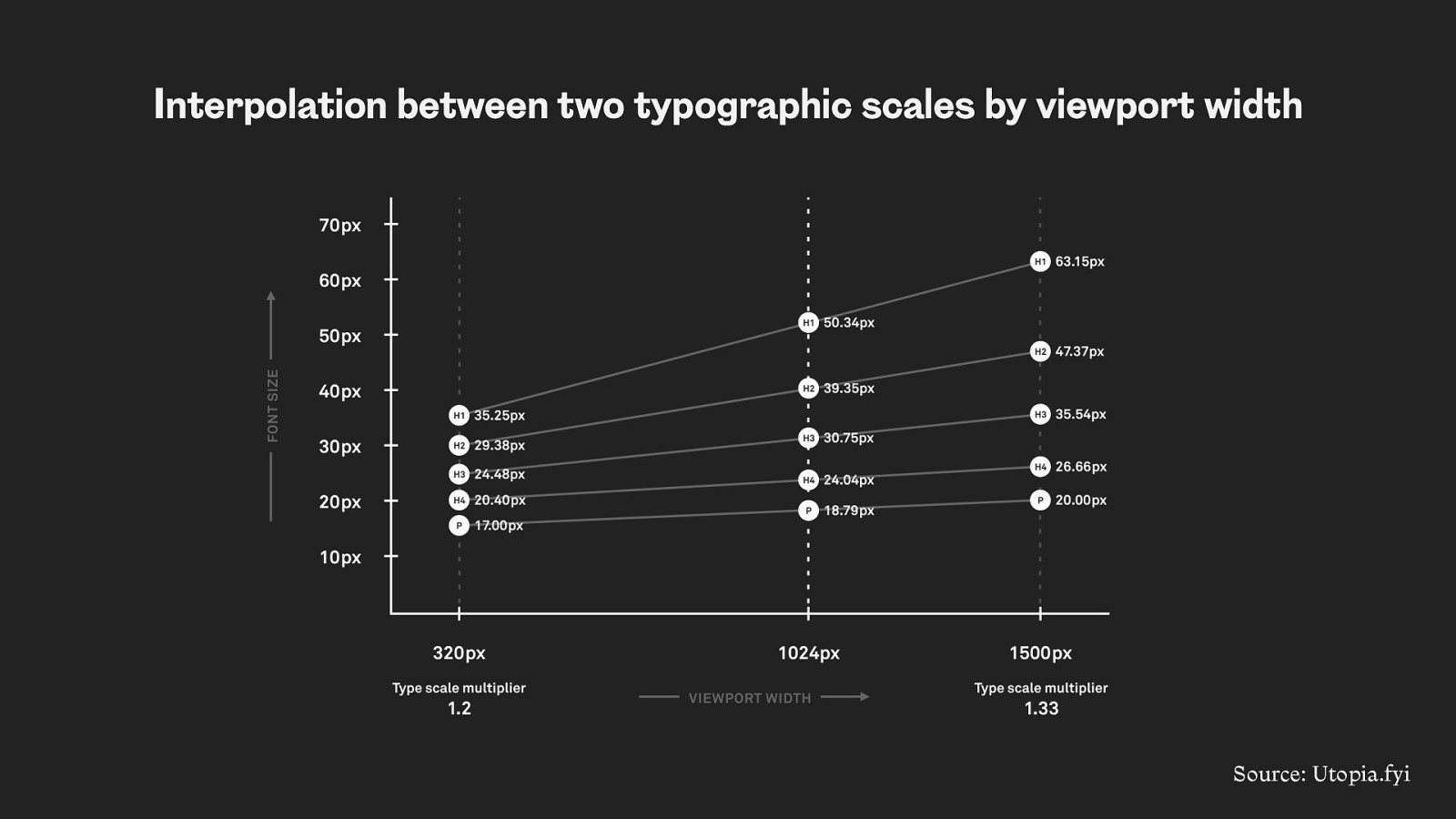

Interpolation between two typographic scales by viewport width Source: Utopia.fyi

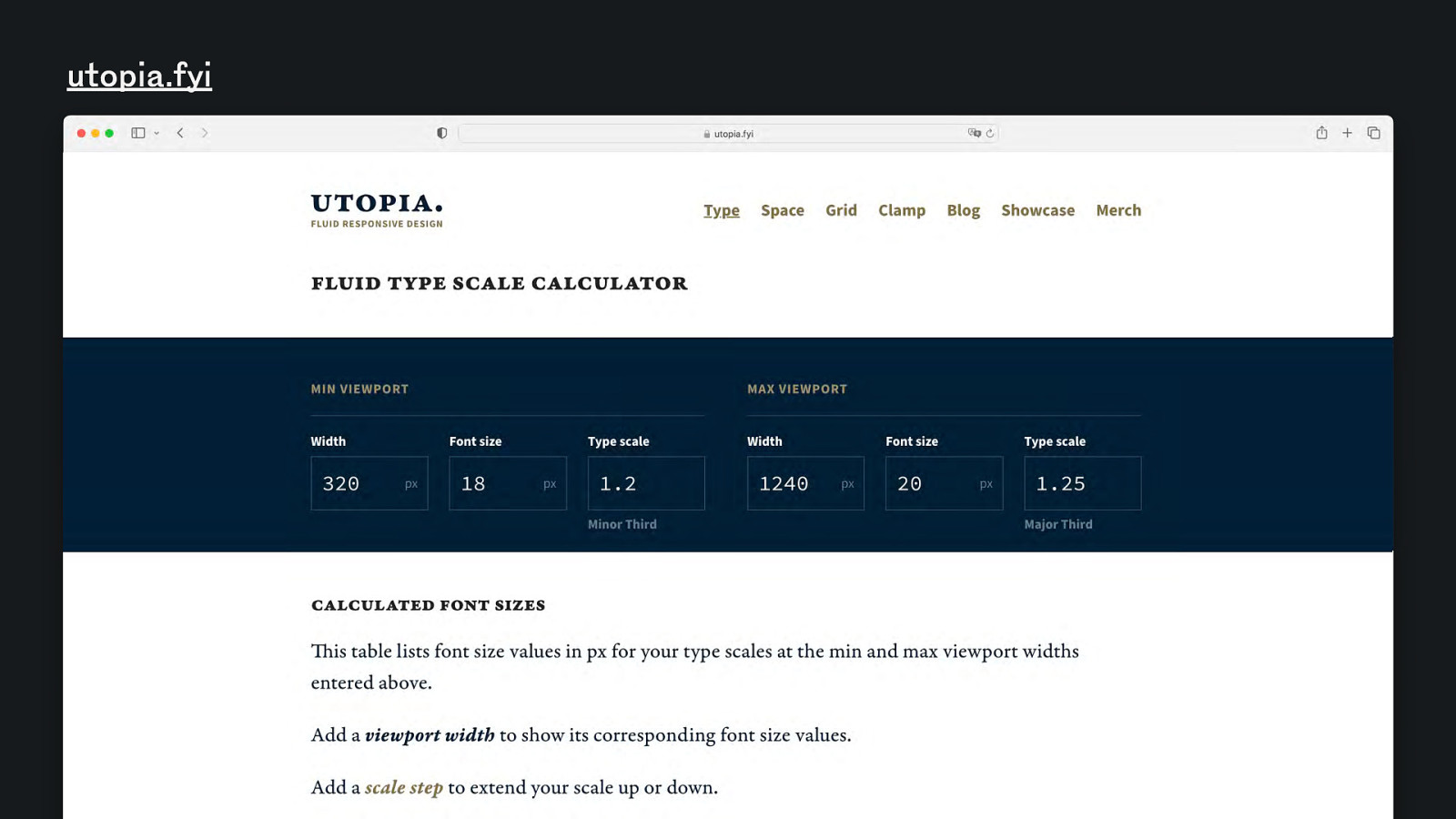

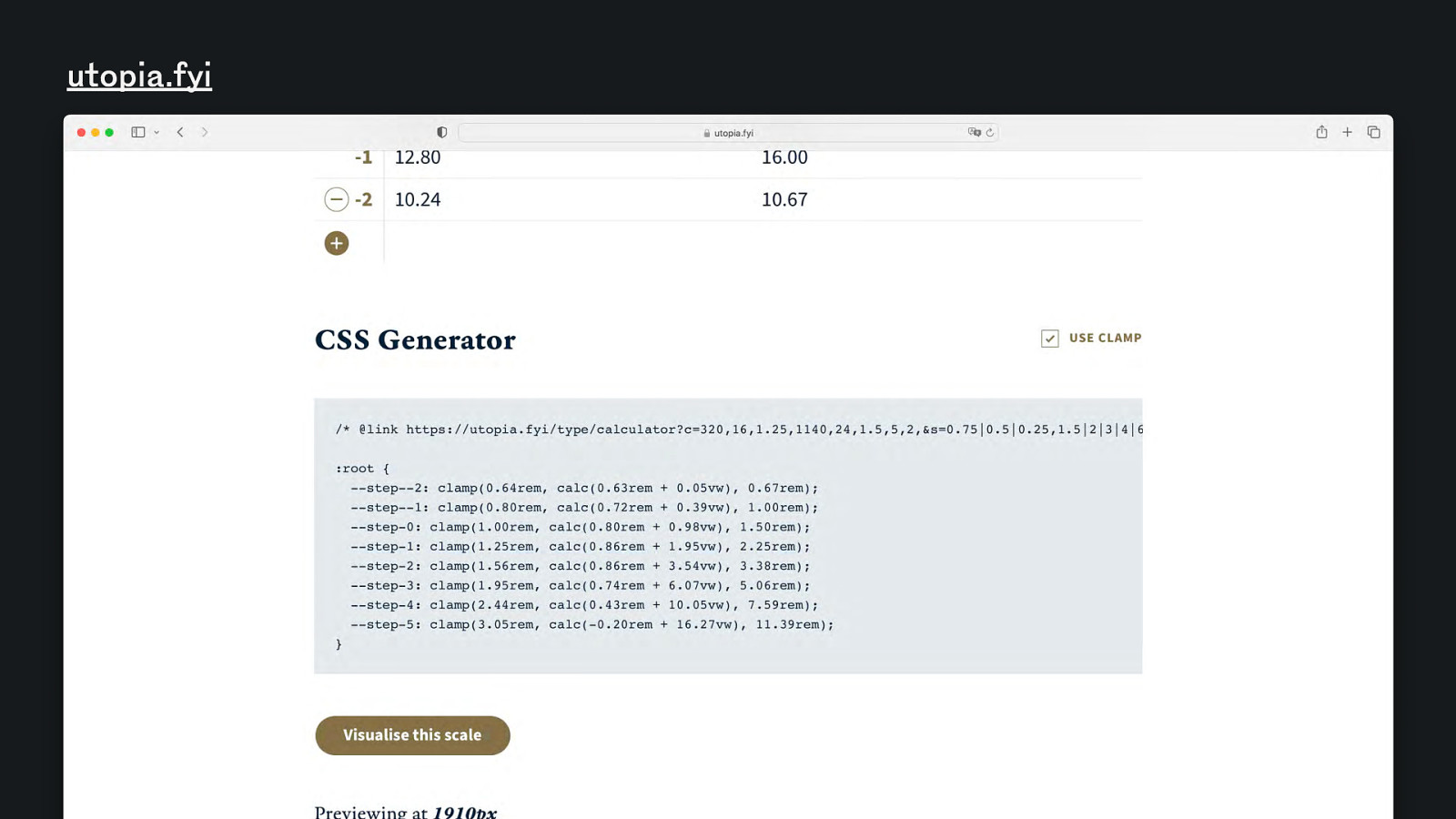

utopia.fyi
utopia.fyi

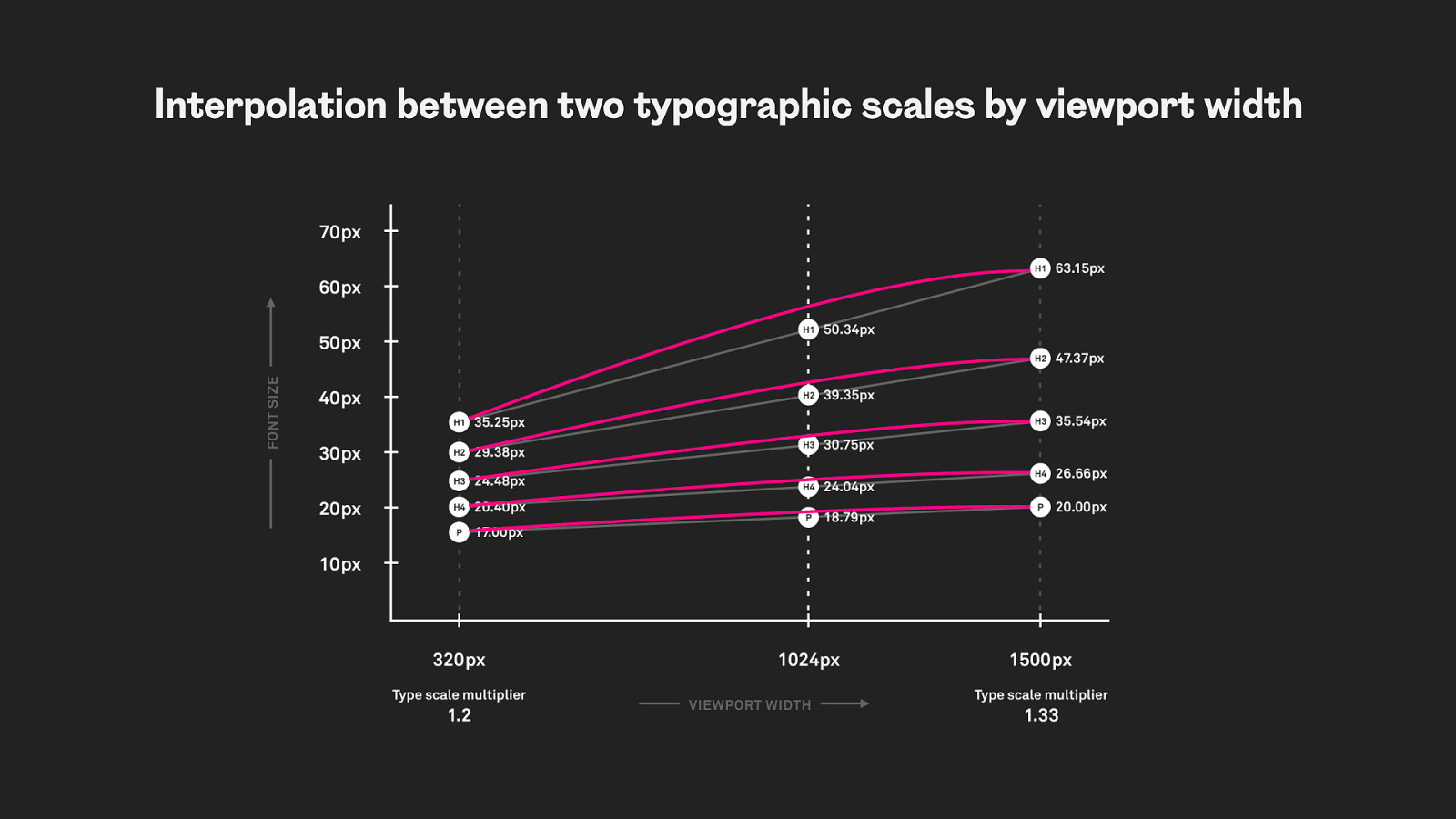

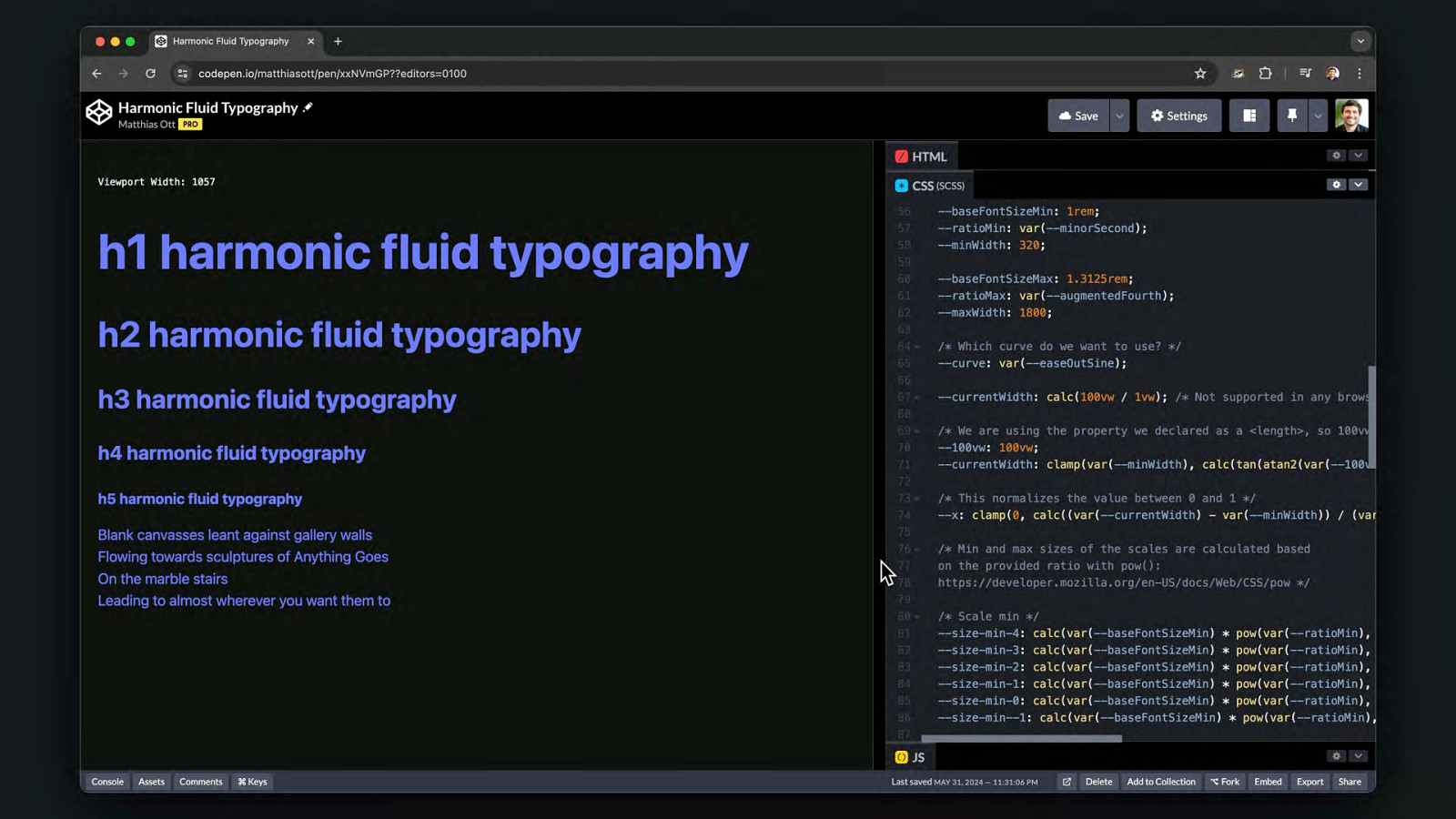

Interpolation between two typographic scales by viewport width

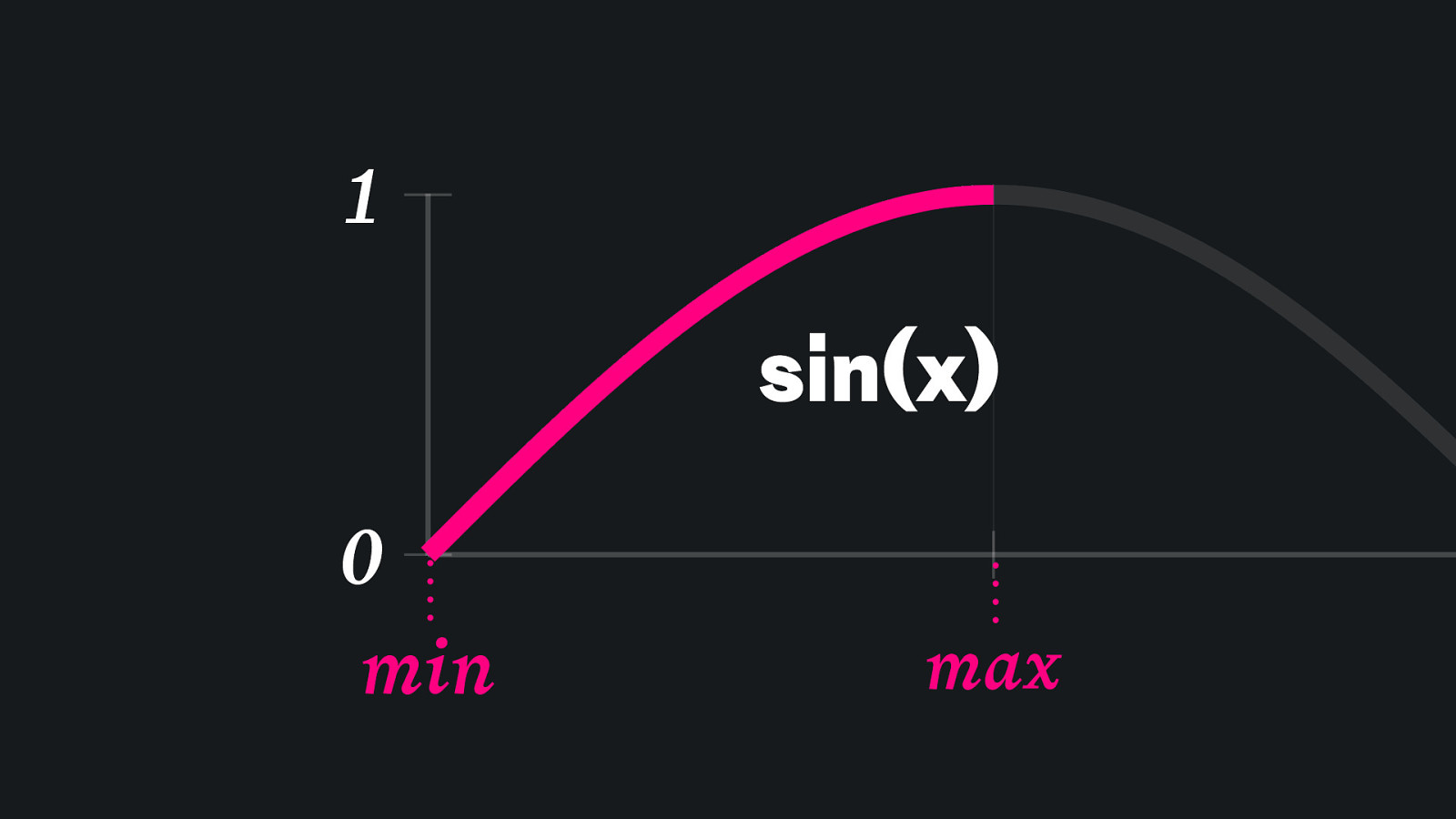

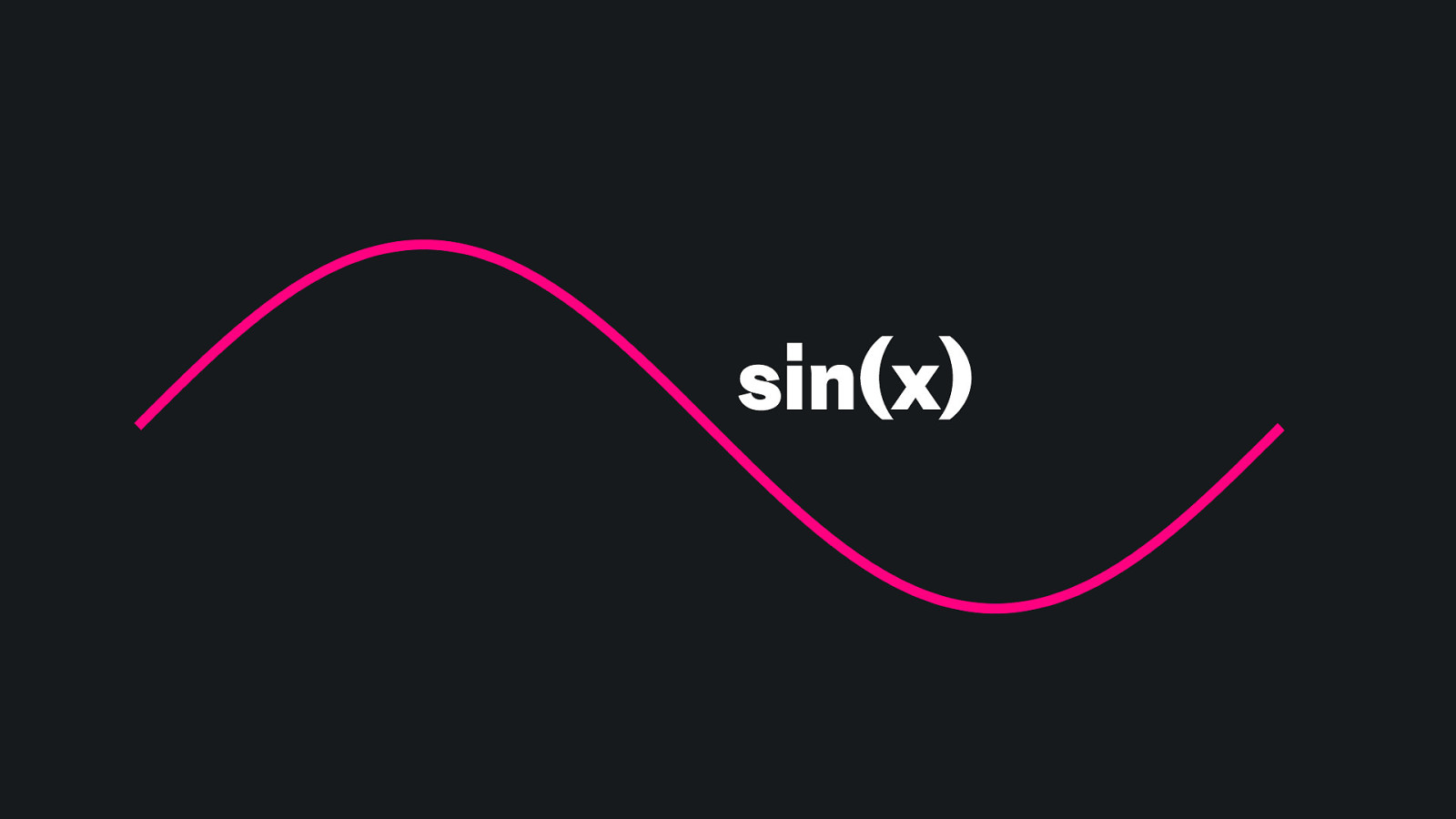

sin(x)
1 sin(x) 0 min max

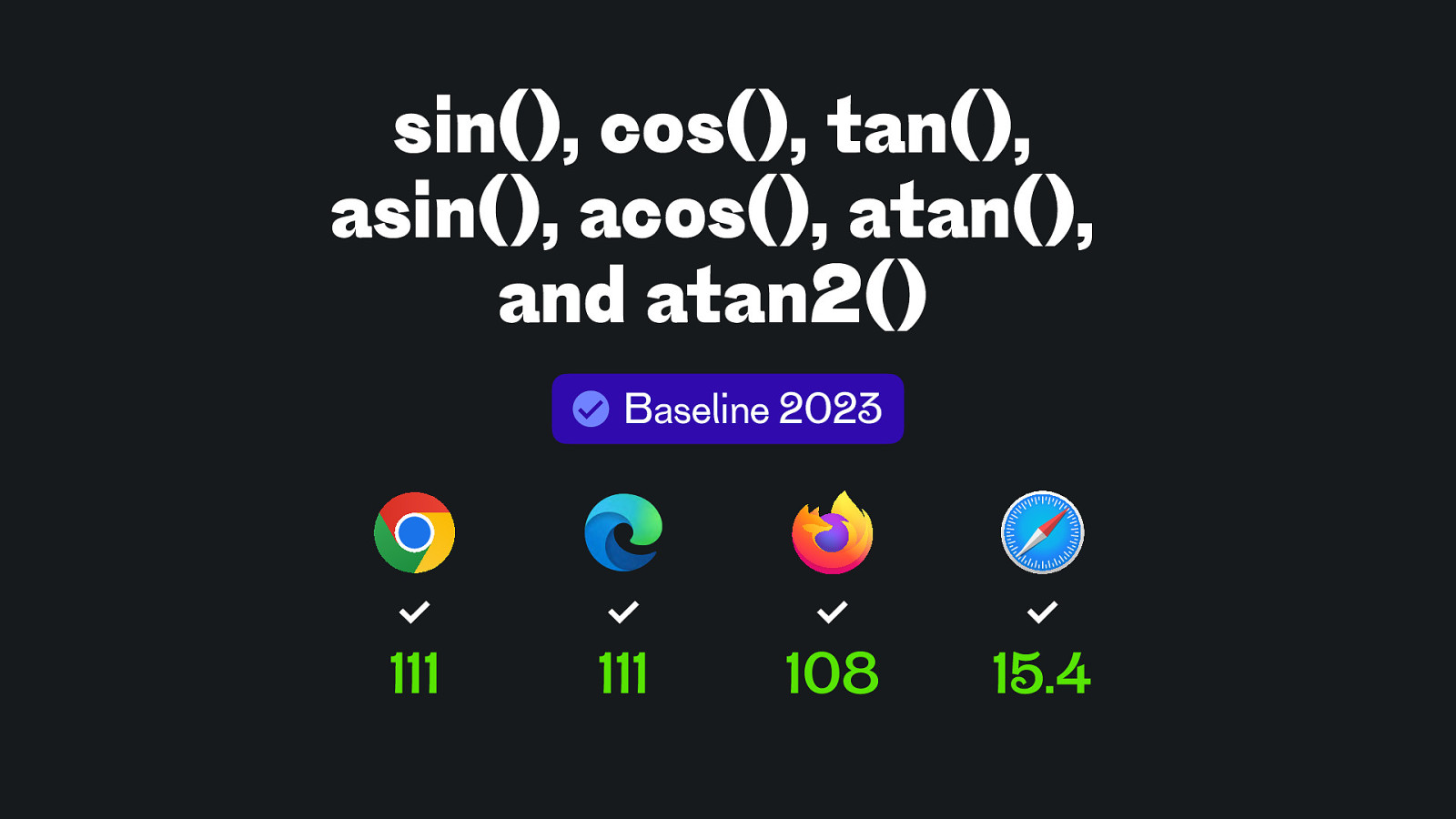

sin(), cos(), tan(), asin(), acos(), atan(), and atan2() Baseline 2023 111 111 108 15.4

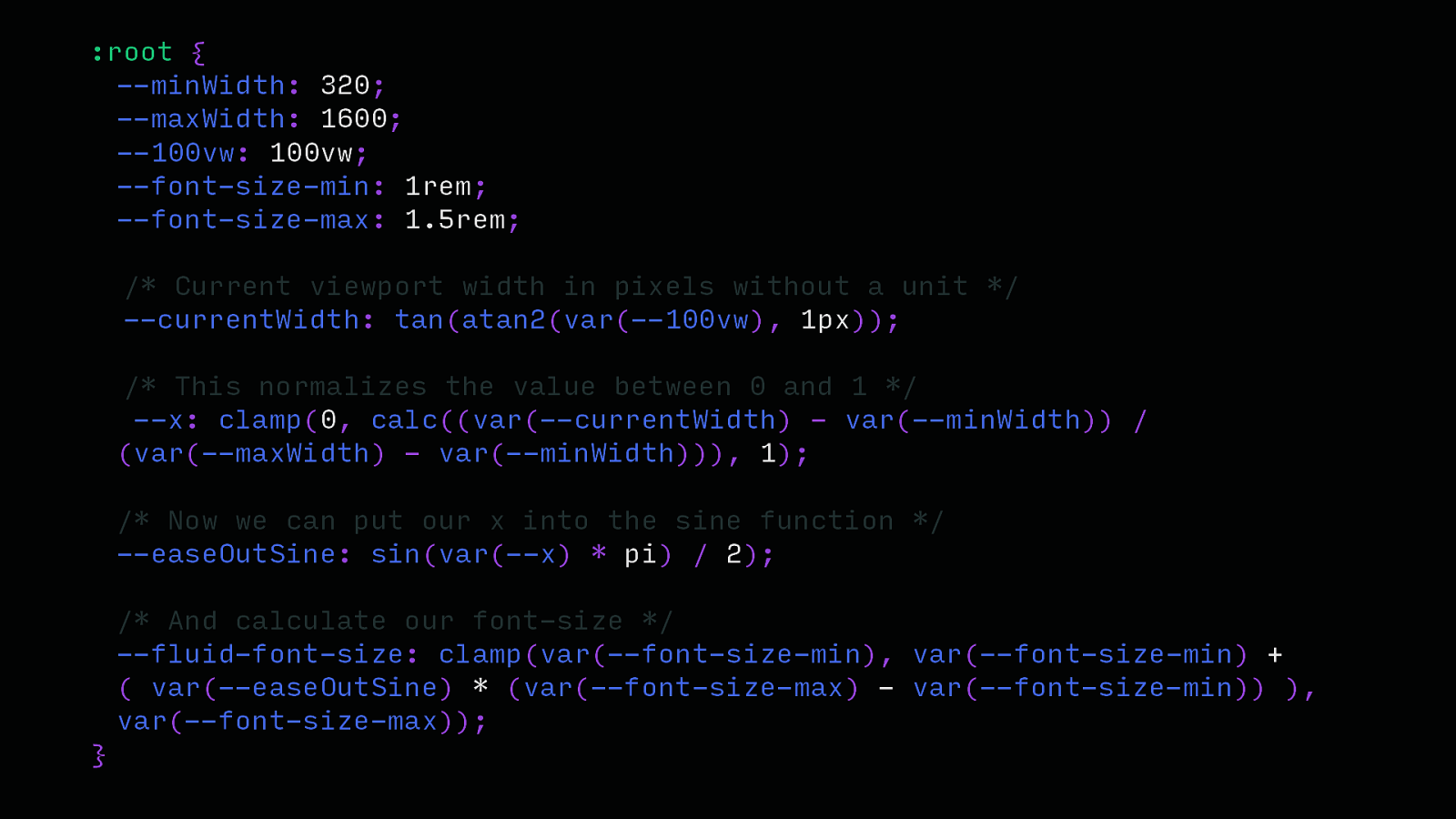

:root { —minWidth: 320; —maxWidth: 1600; —100vw: 100vw; —font-size-min: 1rem; —font-size-max: 1.5rem; /* Current viewport width in pixels without a unit / —currentWidth: tan(atan2(var(—100vw), 1px)); / This normalizes the value between 0 and 1 / —x: clamp(0, calc((var(—currentWidth) - var(—minWidth)) / (var(—maxWidth) - var(—minWidth))), 1); / Now we can put our x into the sine function / —easeOutSine: sin(var(—x) * pi) / 2); / And calculate our font-size */ —fluid-font-size: clamp(var(—font-size-min), var(—font-size-min) + ( var(—easeOutSine) * (var(—font-size-max) - var(—font-size-min)) ), var(—font-size-max)); }

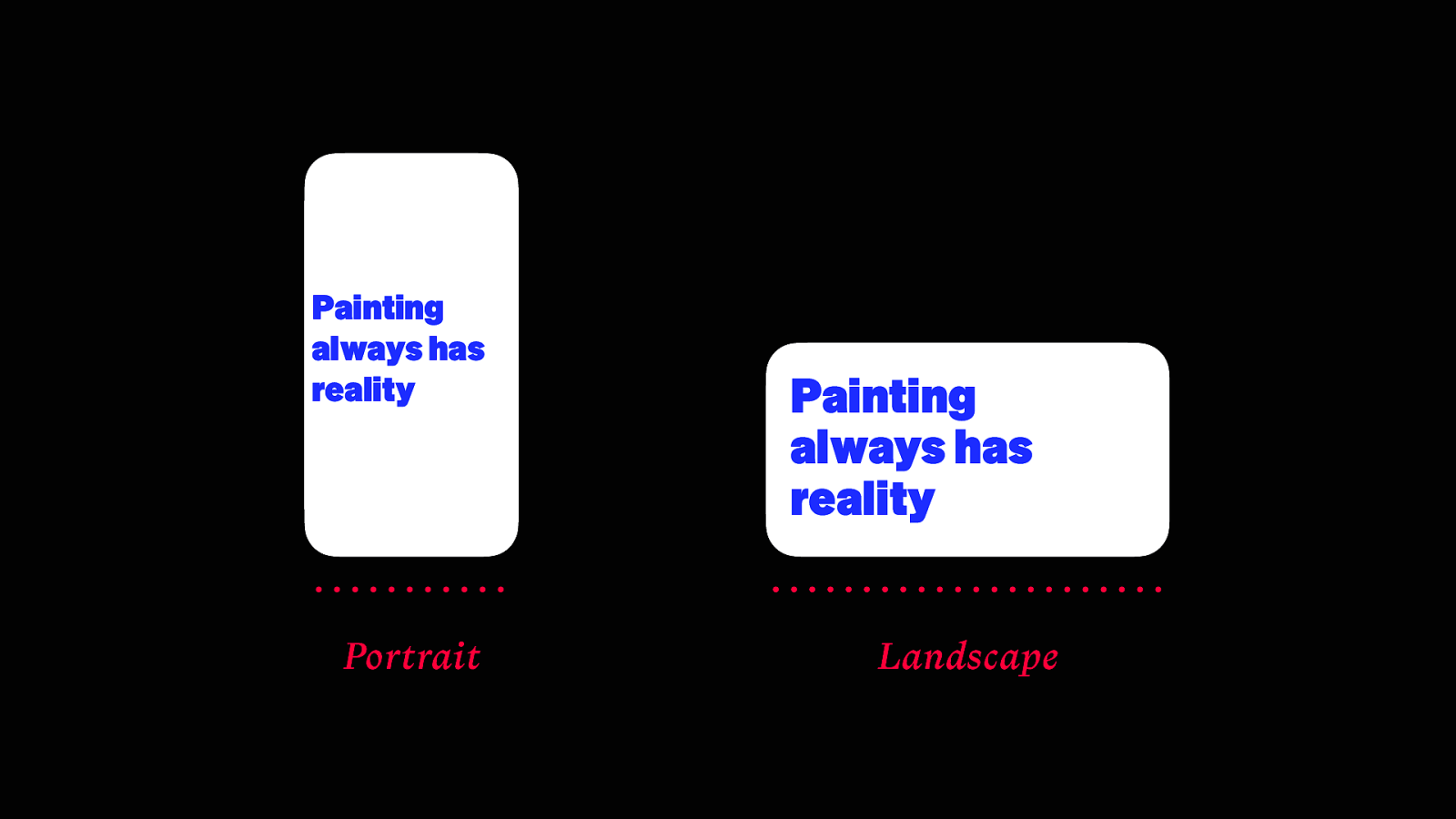

Painting always has reality Portrait Painting always has reality Landscape

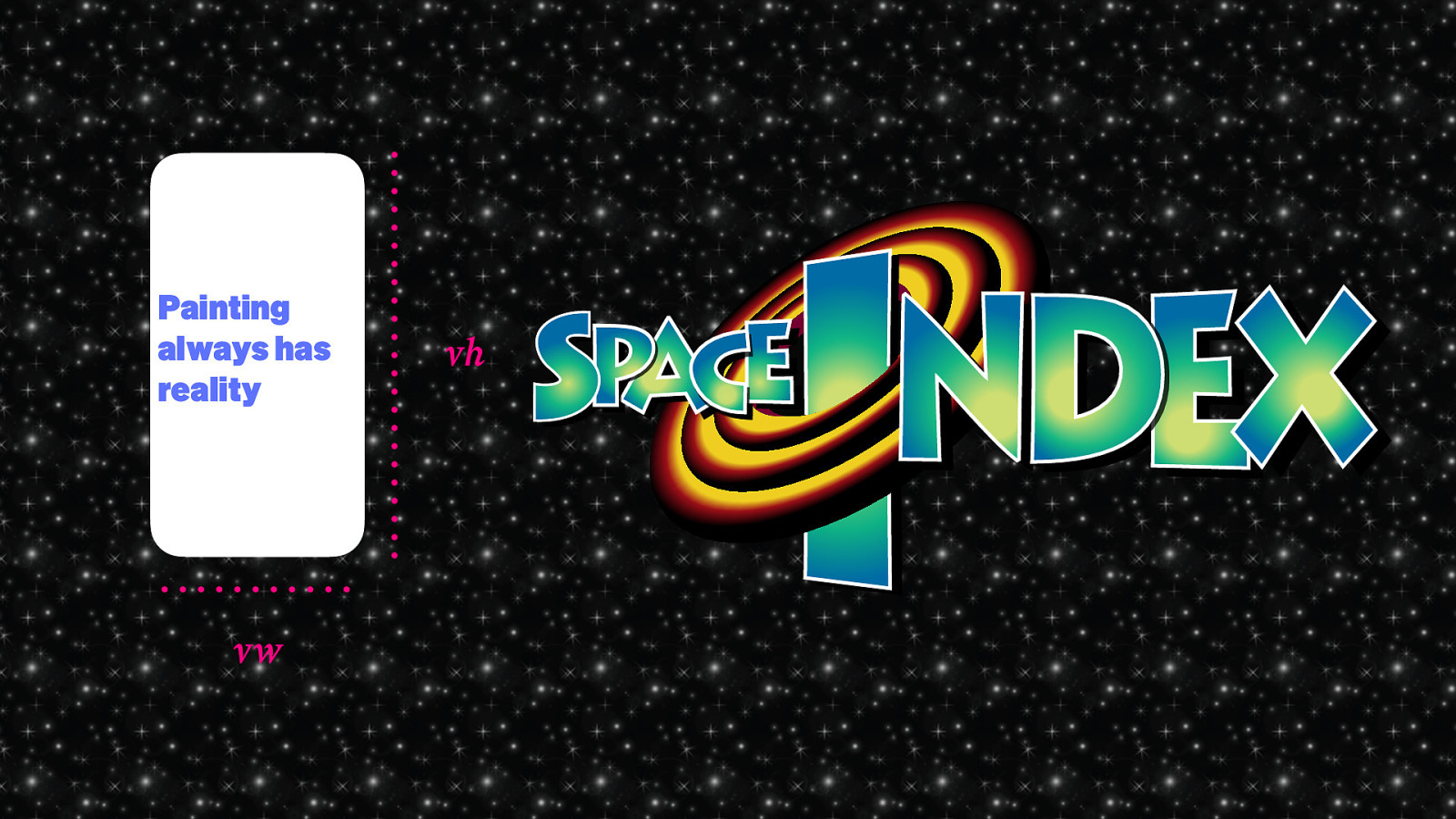

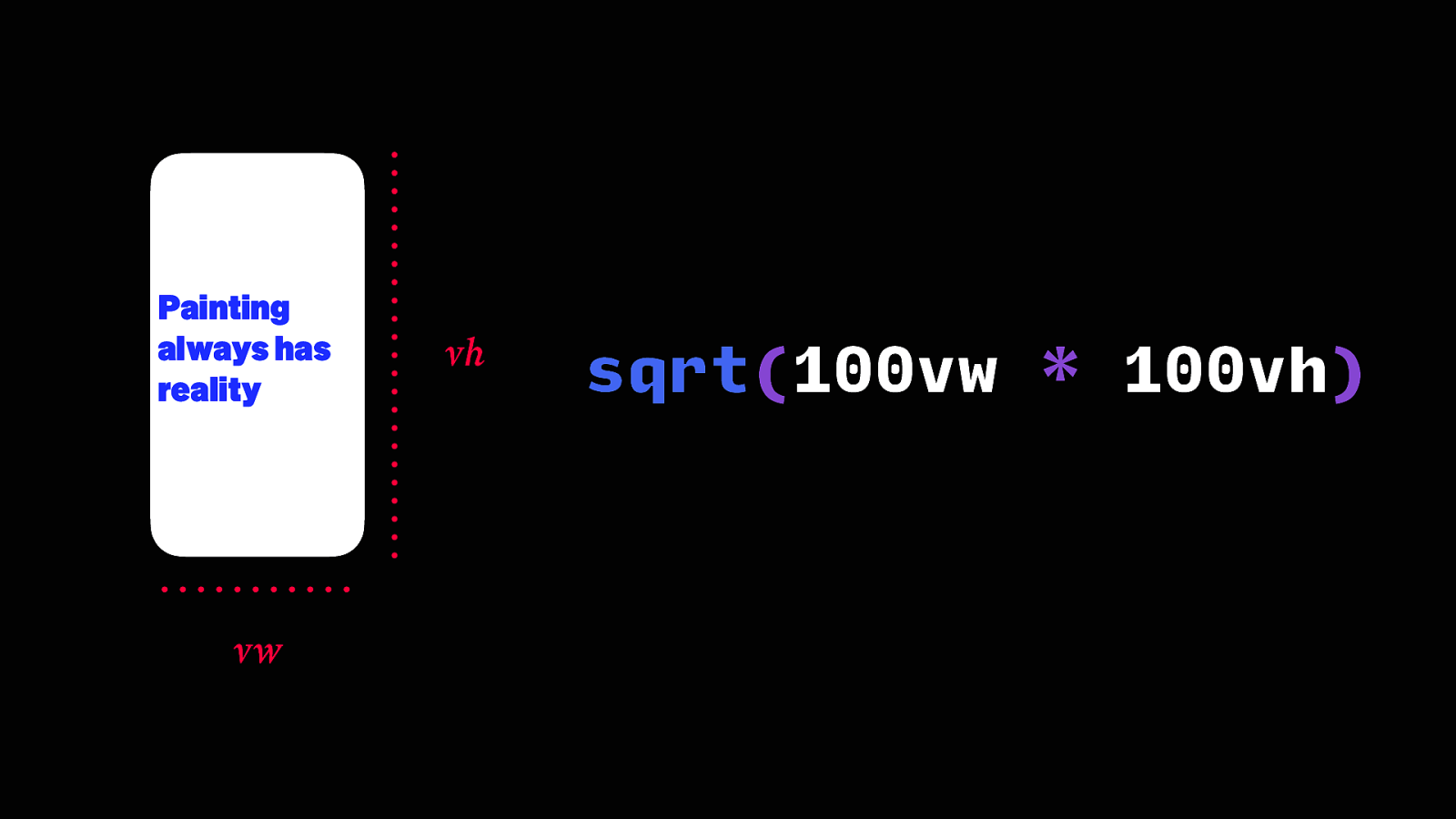

Painting always has reality vw vh sqrt(100vw * 100vh)
Painting always has reality vw vh
Color

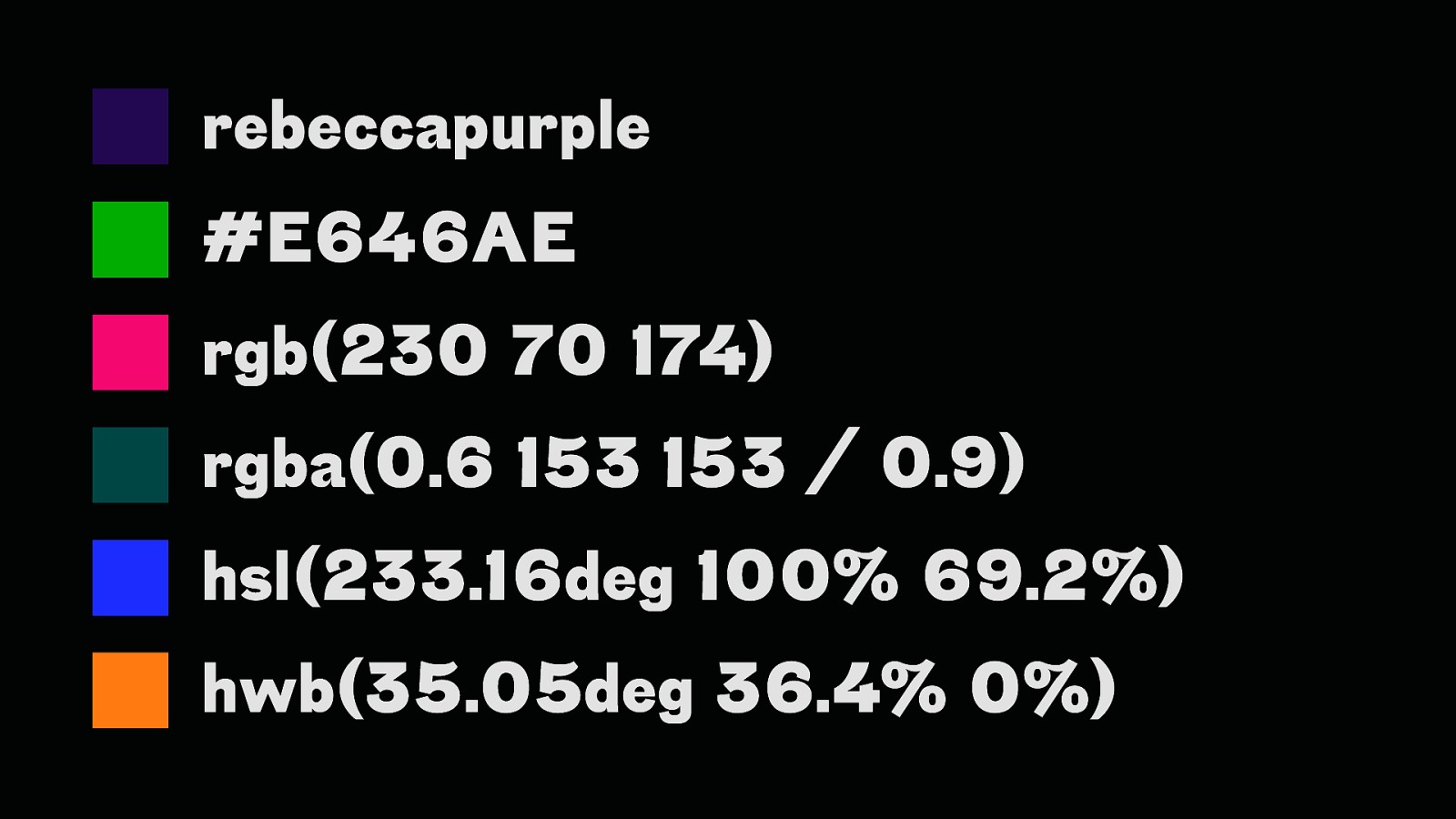

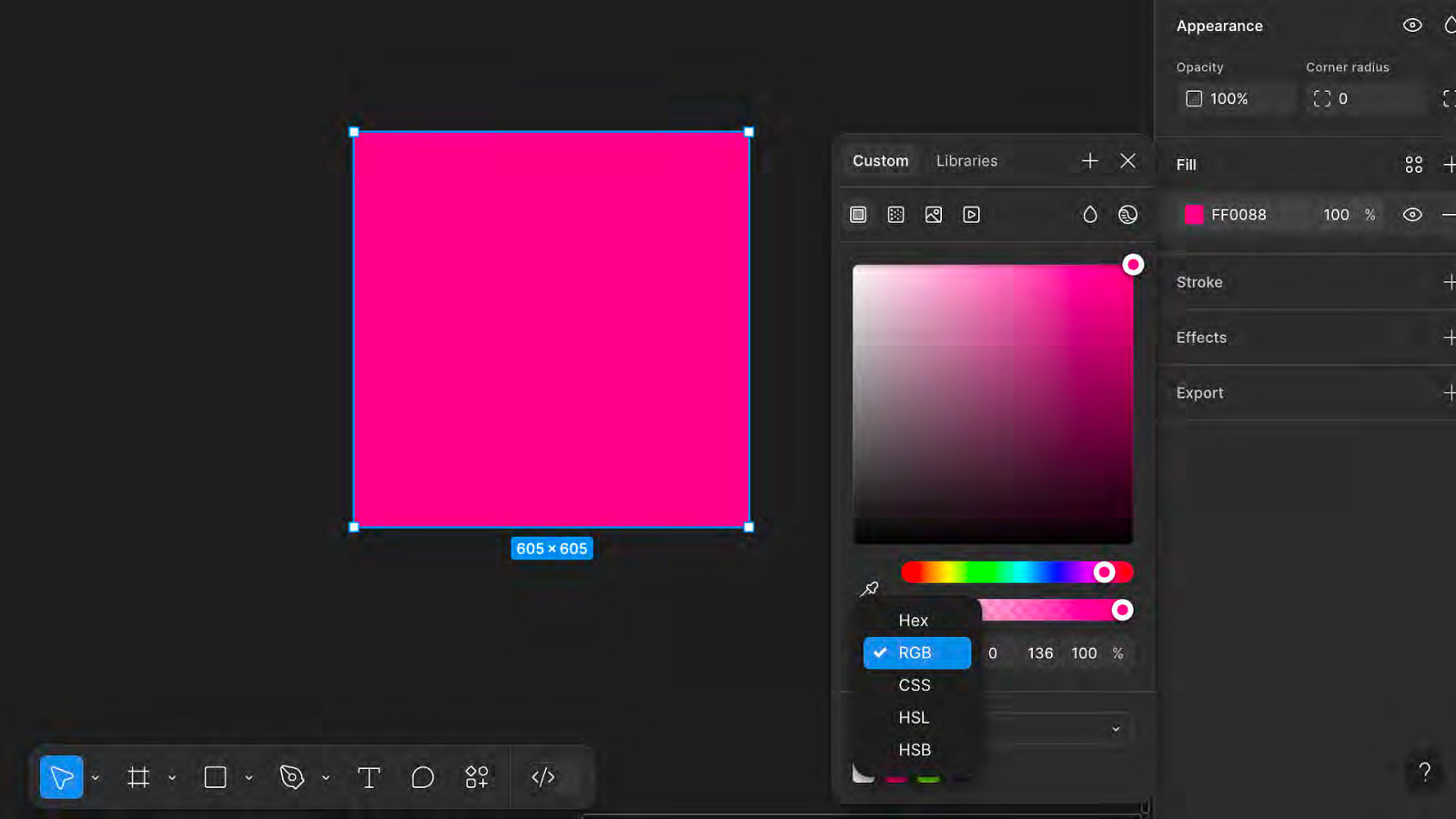

rebeccapurple #E646AE rgb(230 70 174) rgba(0.6 153 153 / 0.9) hsl(233.16deg 100% 69.2%) hwb(35.05deg 36.4% 0%)

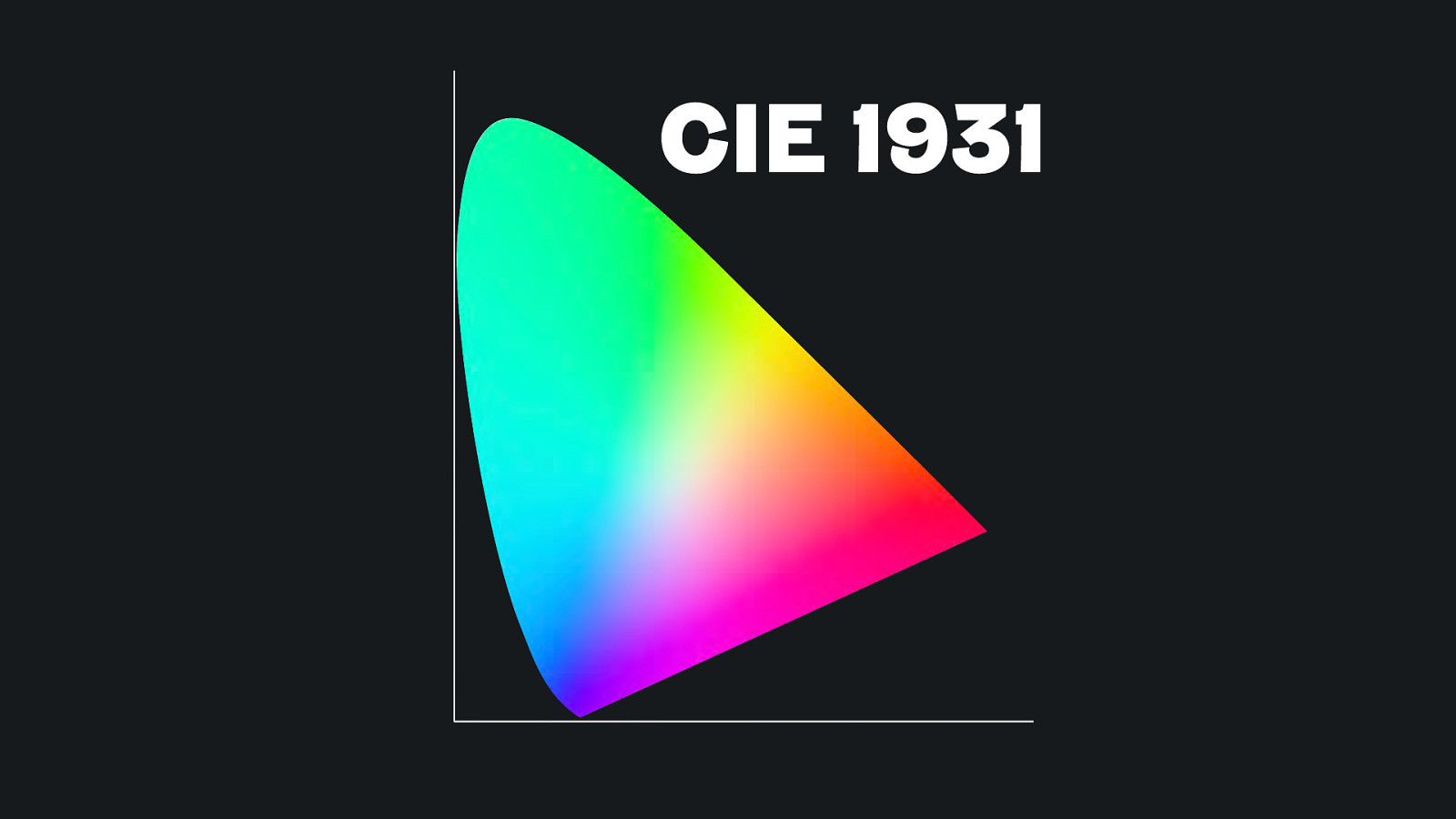

CIE 1931

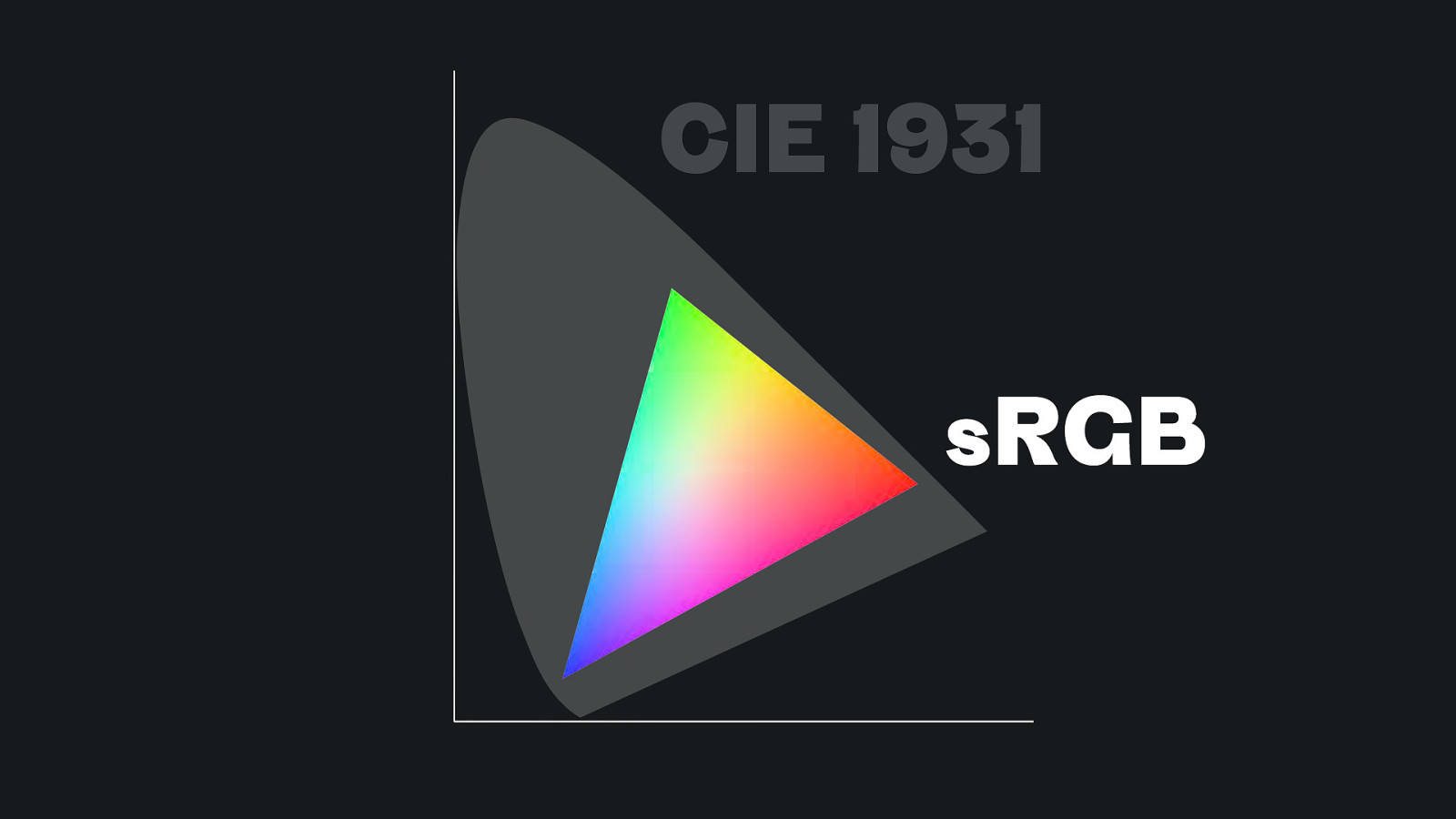

CIE 1931 sRGB

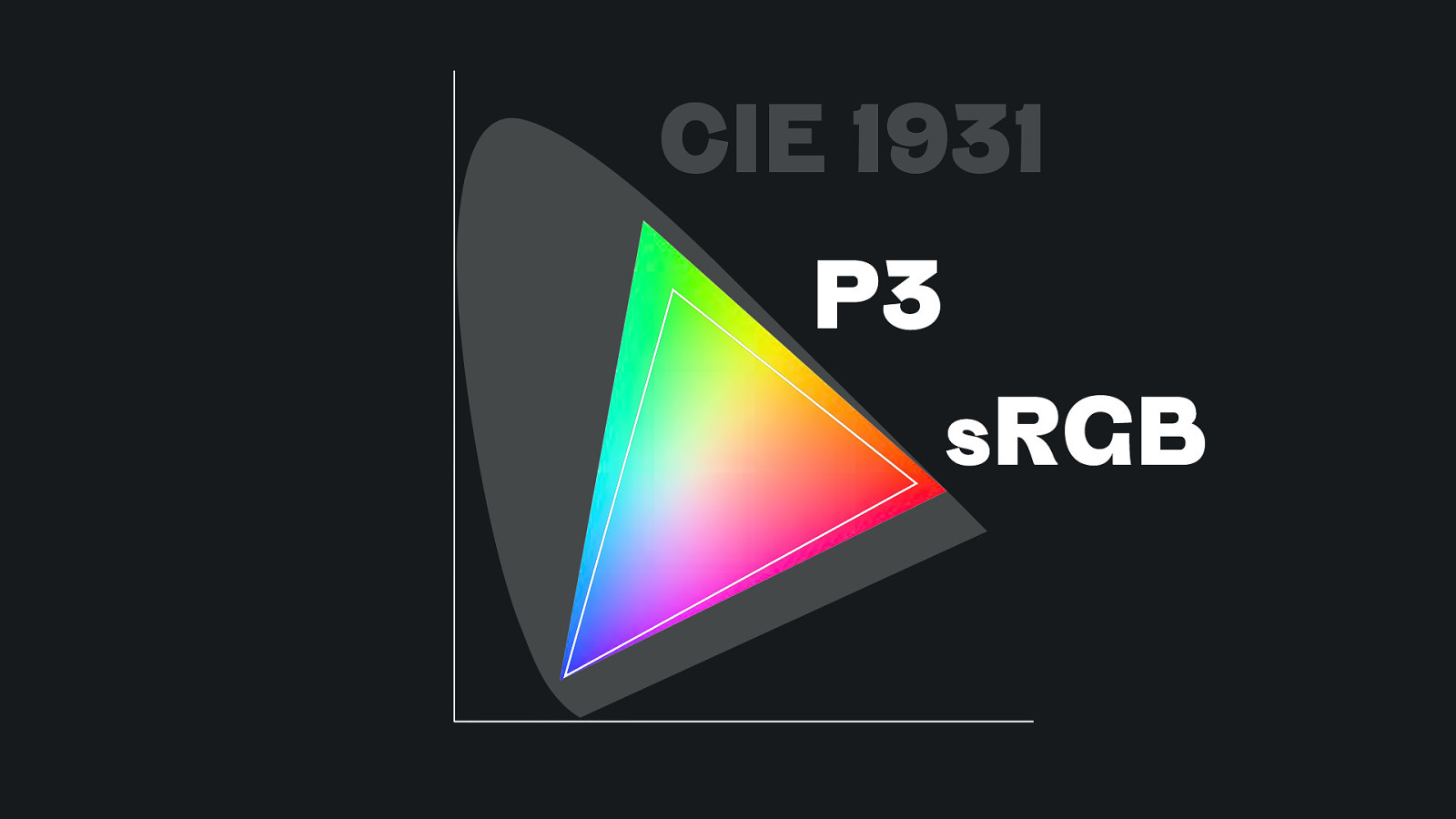

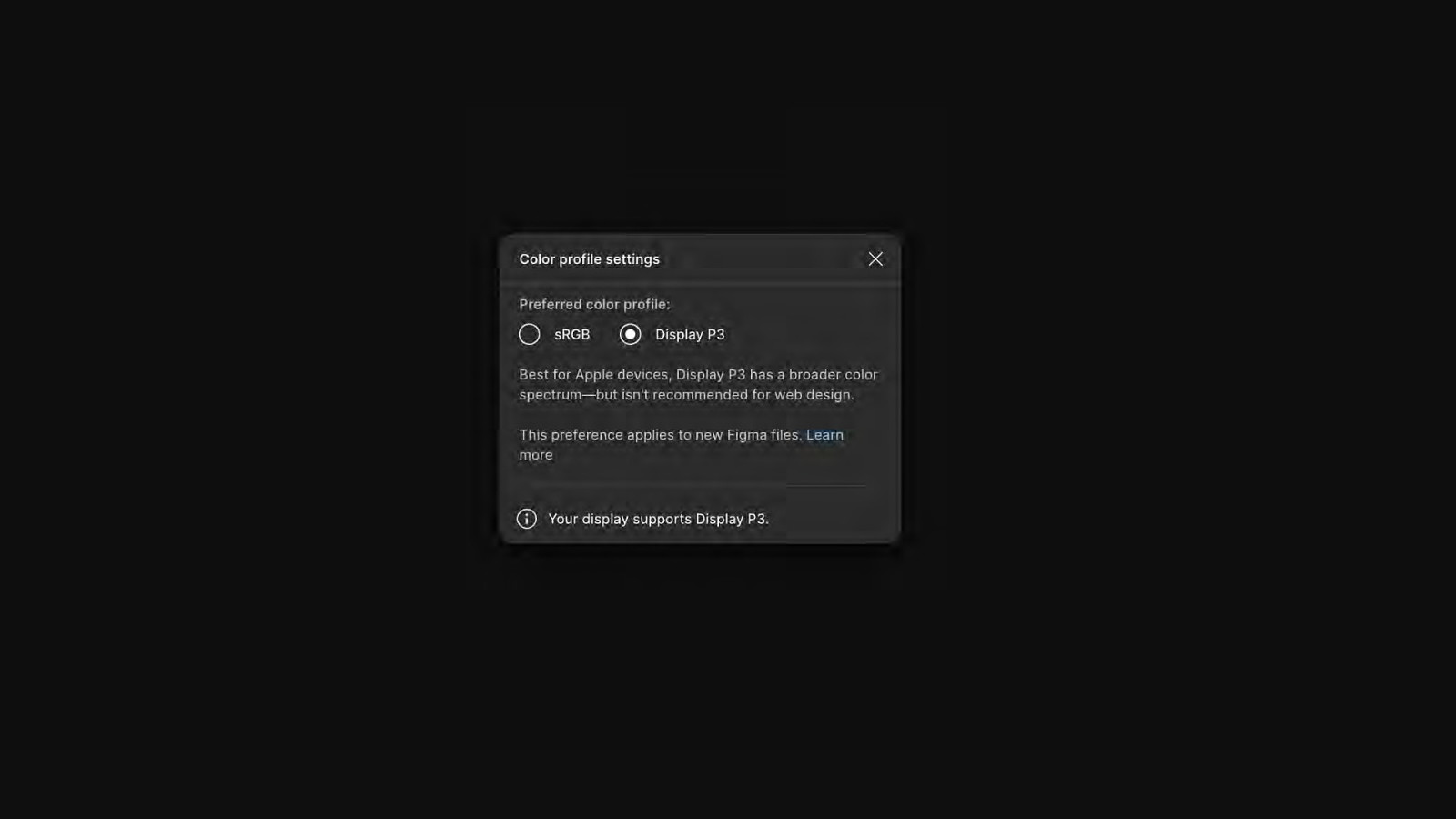

CIE 1931 P3 sRGB

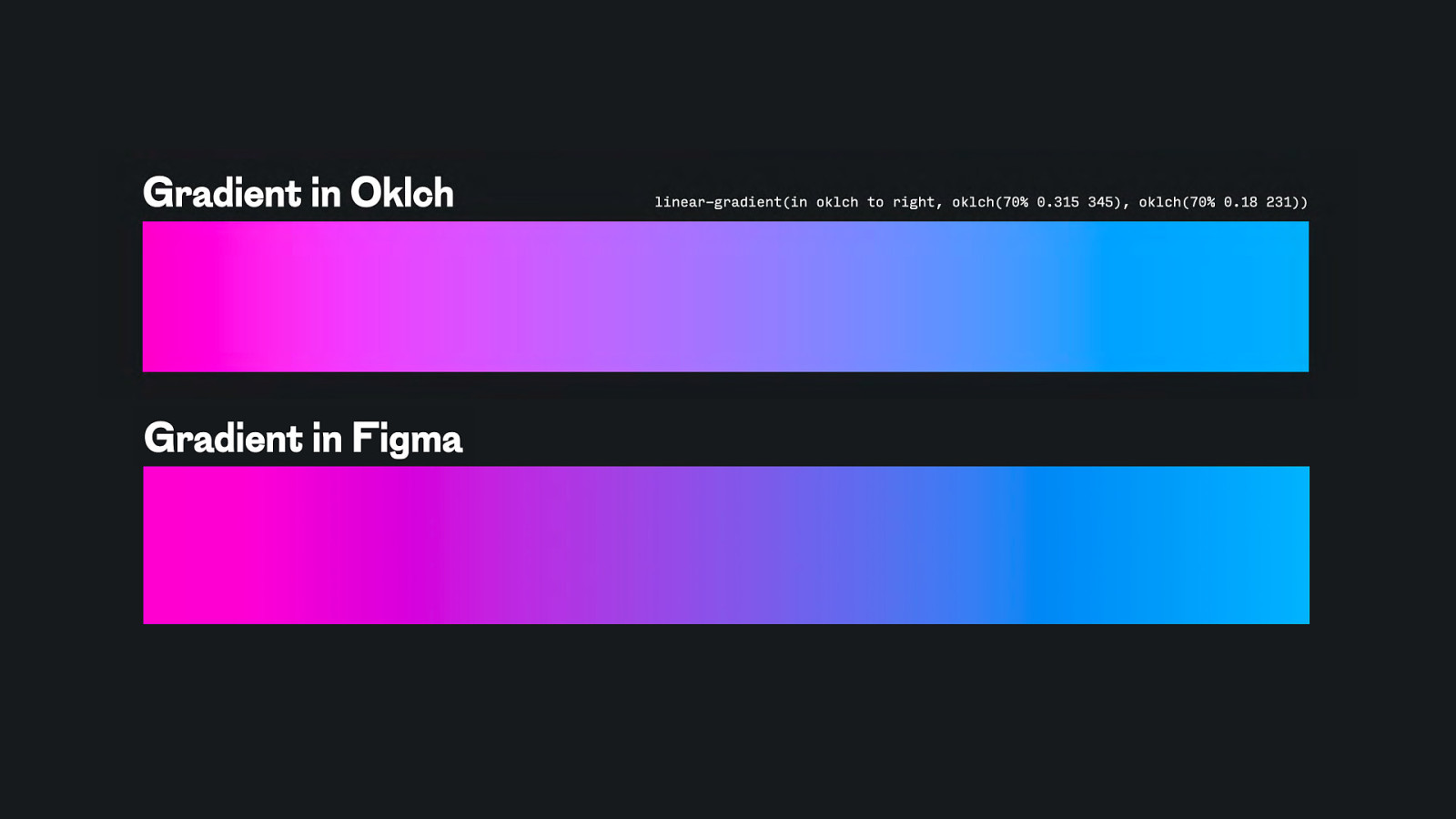

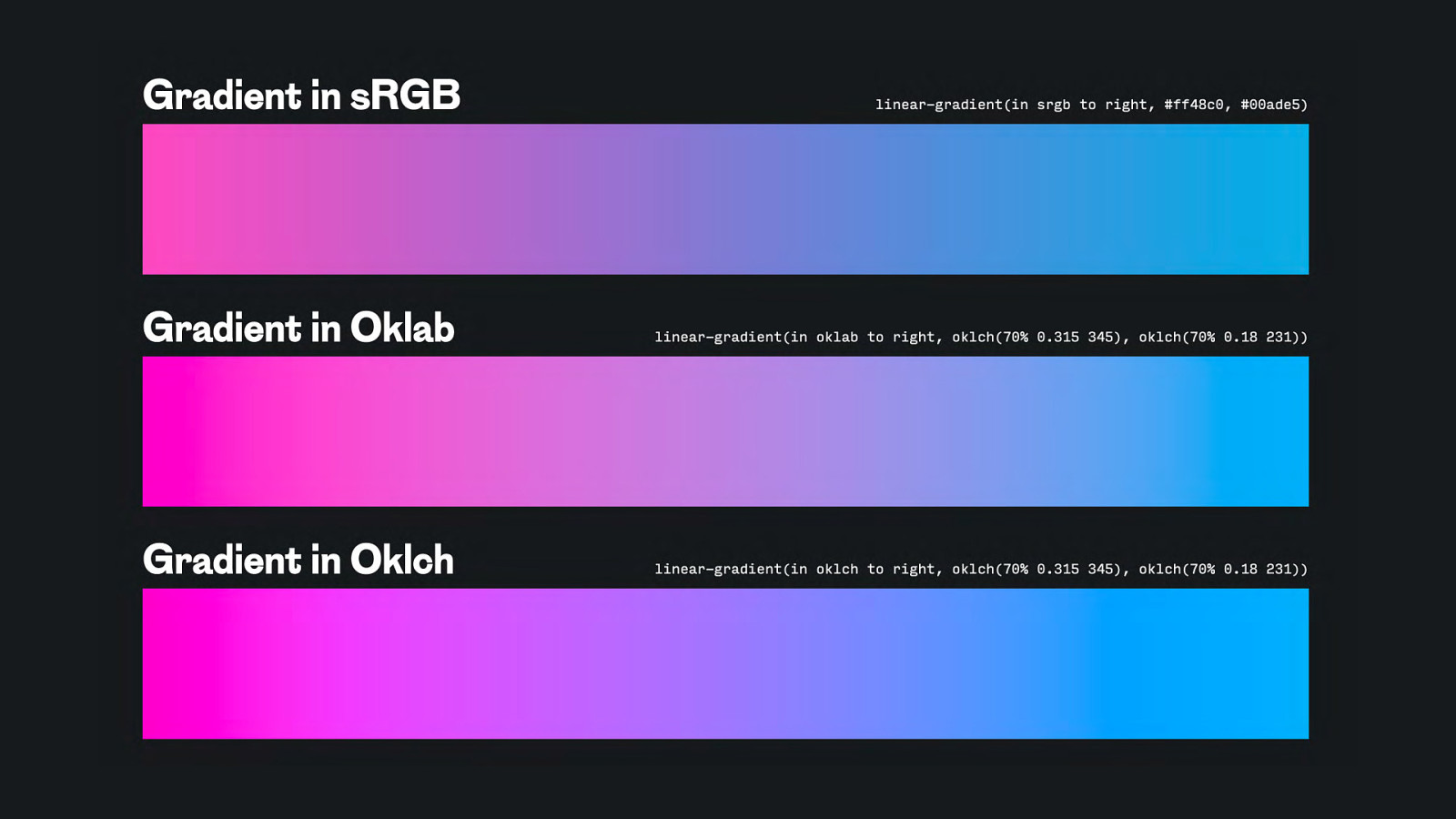

oklch

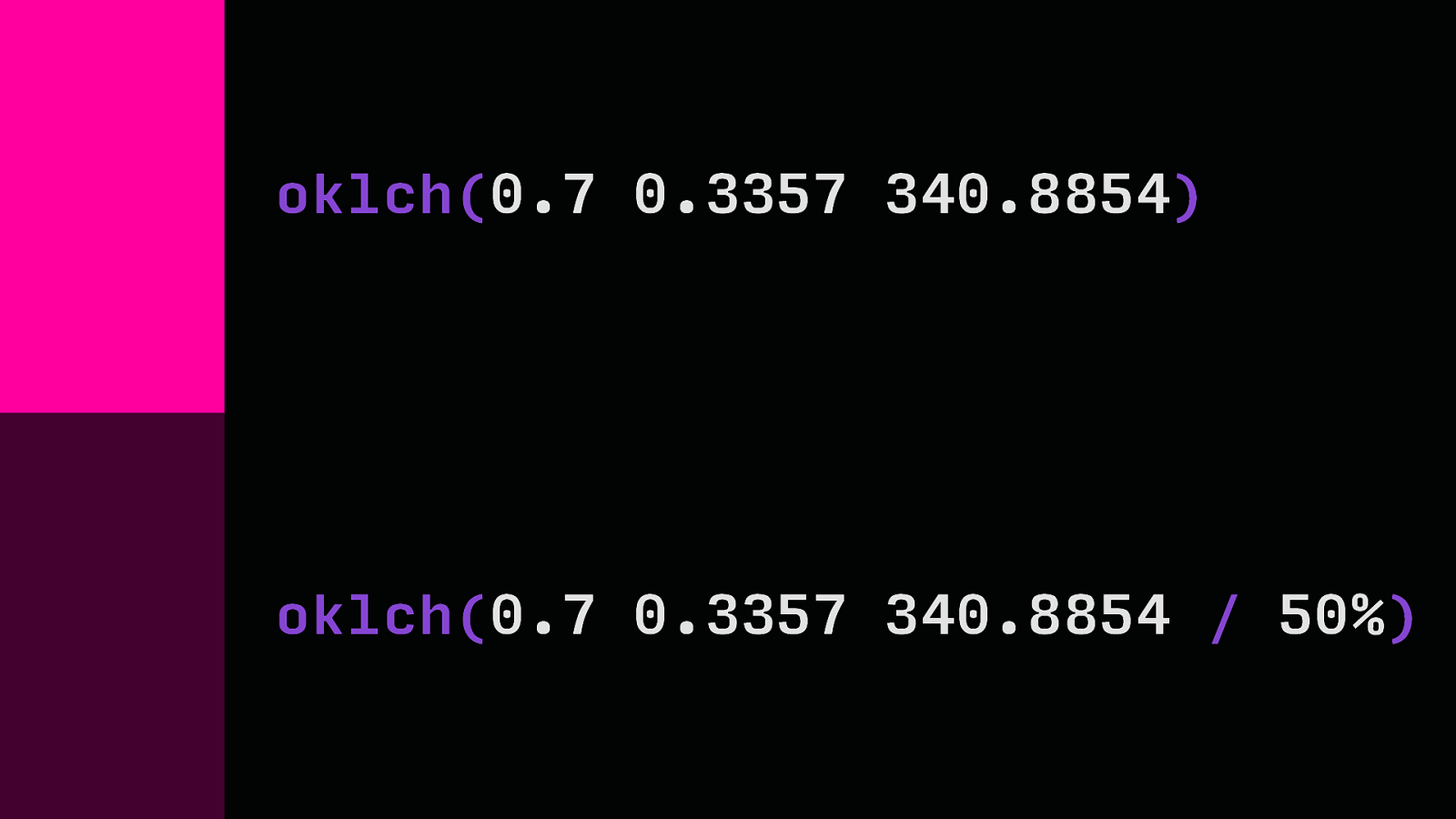

oklch(0.7 0.3357 340.8854) oklch(0.7 0.3357 340.8854 / 50%)

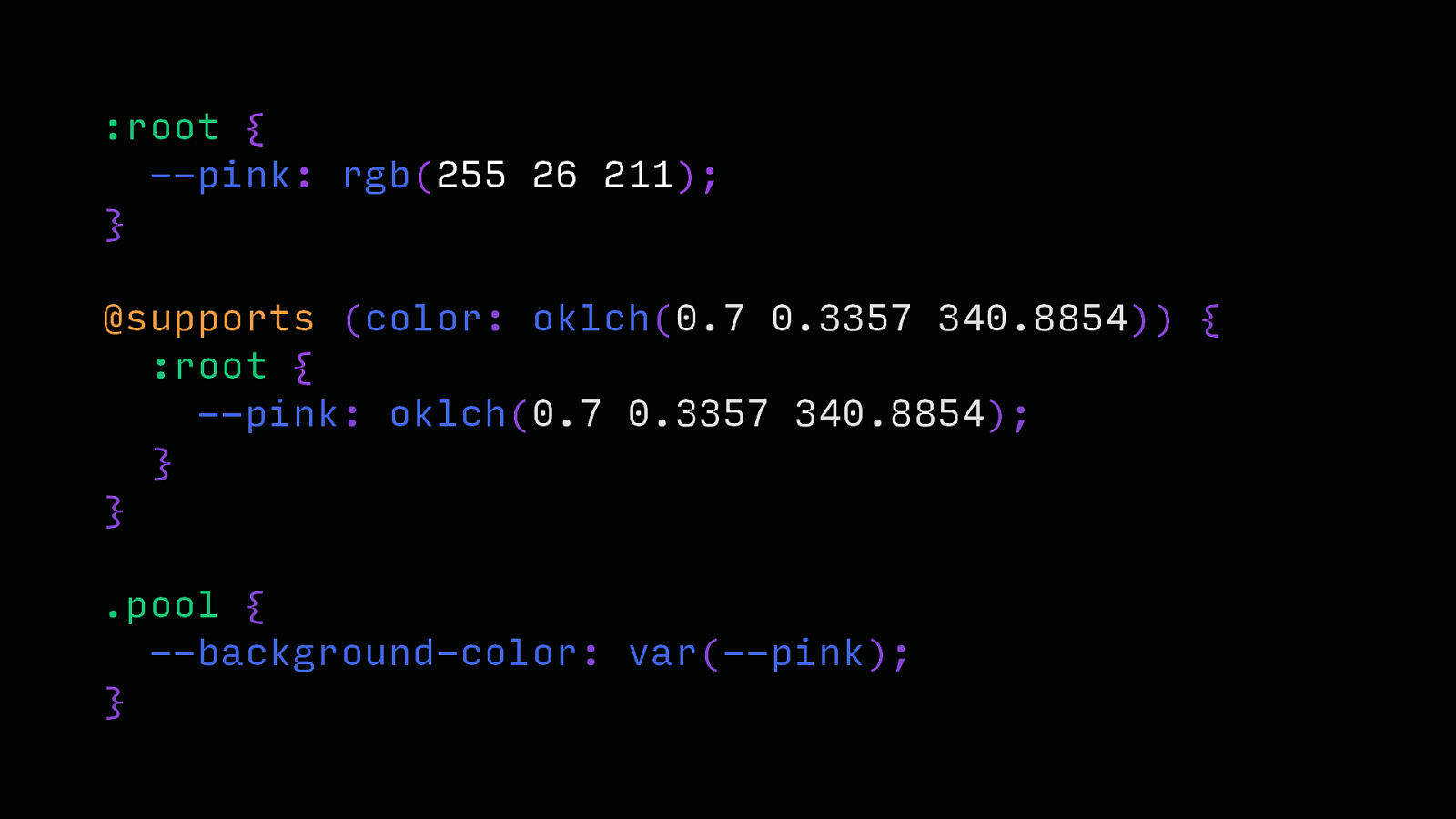

:root { —pink: rgb(255 26 211); } @supports (color: oklch(0.7 0.3357 340.8854)) { :root { —pink: oklch(0.7 0.3357 340.8854); } } .pool { —background-color: var(—pink); }

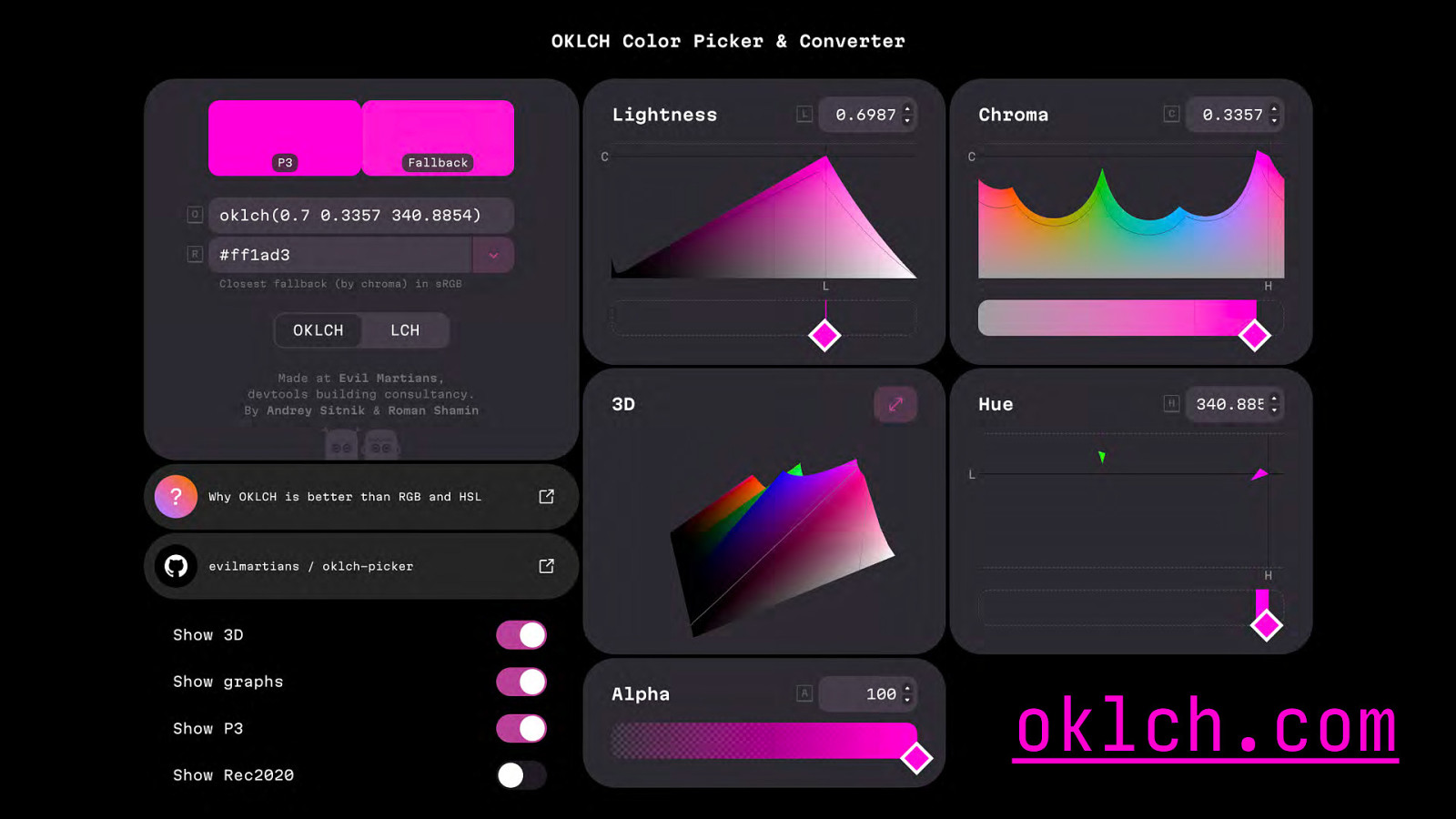

oklch.com

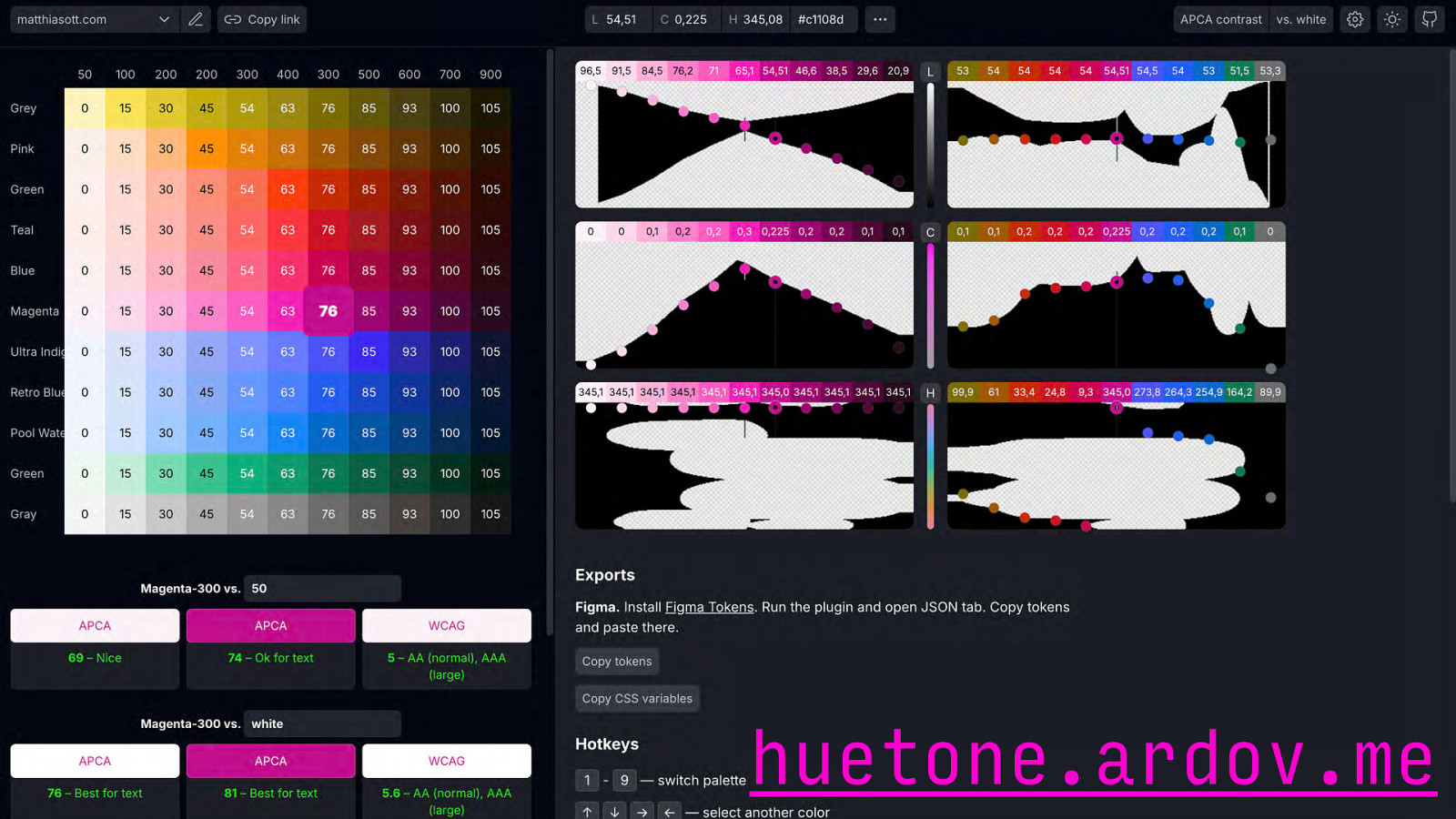

huetone.ardov.me

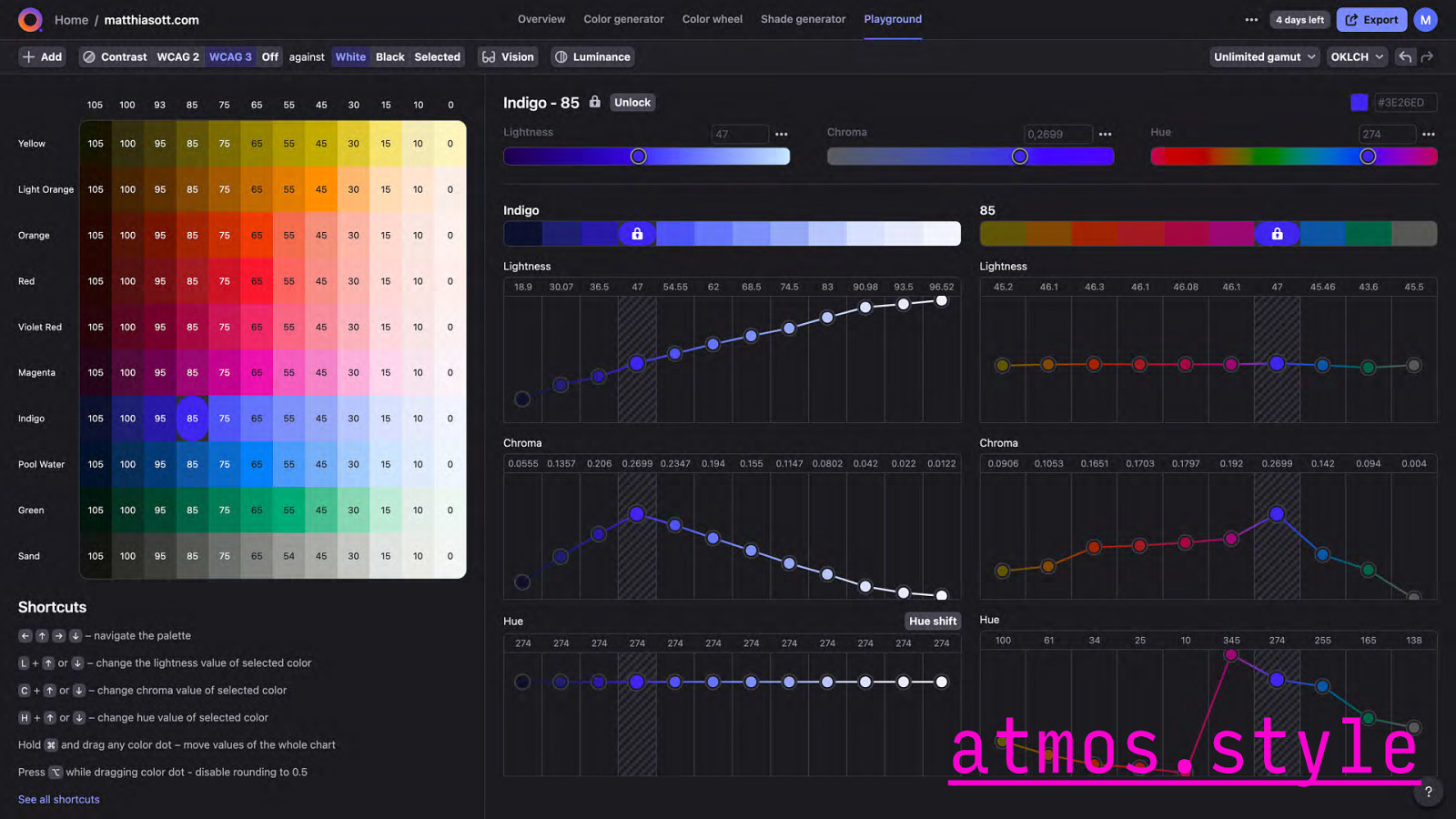

atmos.style https://huetone.ardov.me/

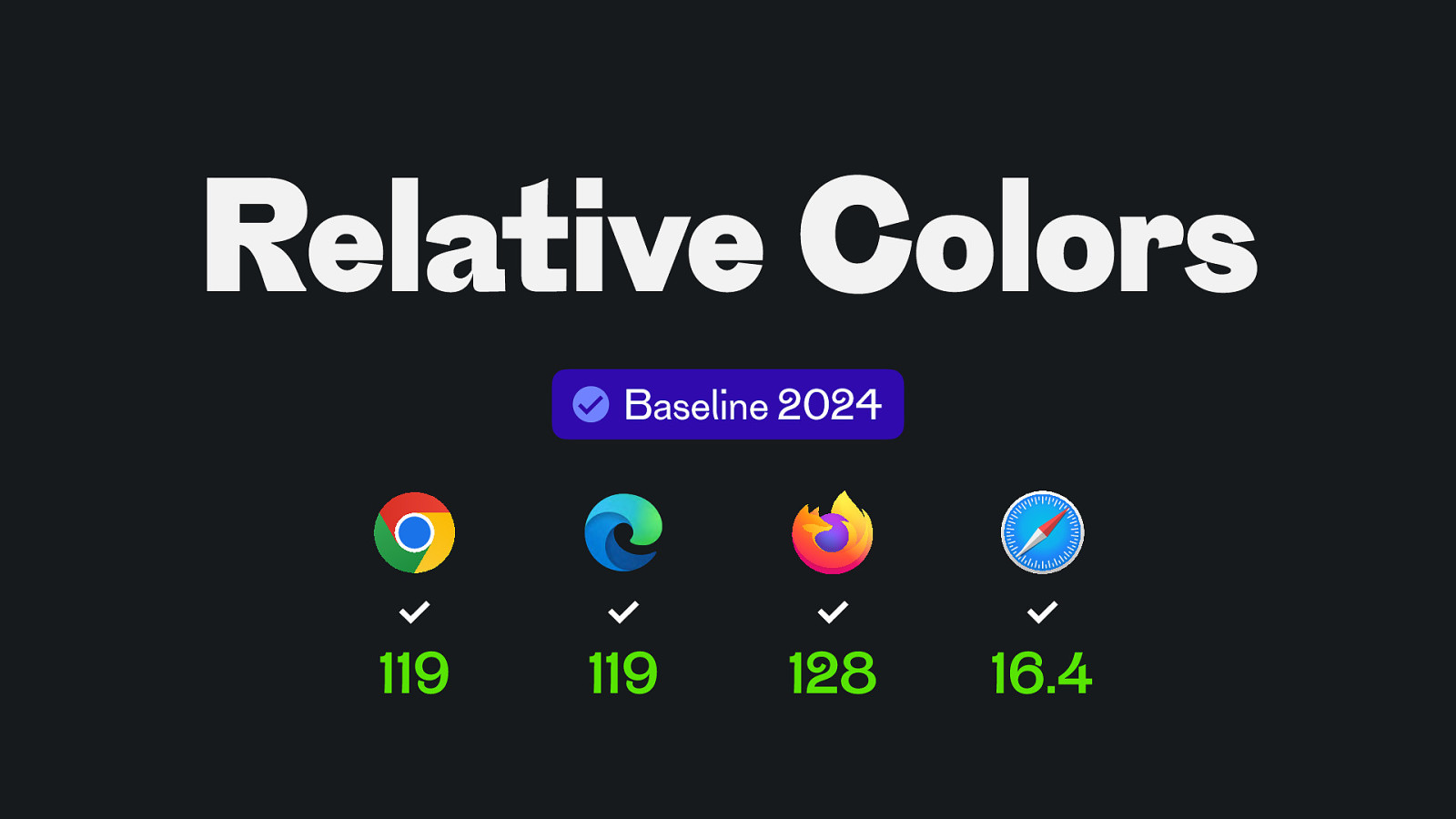

Relative Colors Baseline 2024 119 119 128 16.4

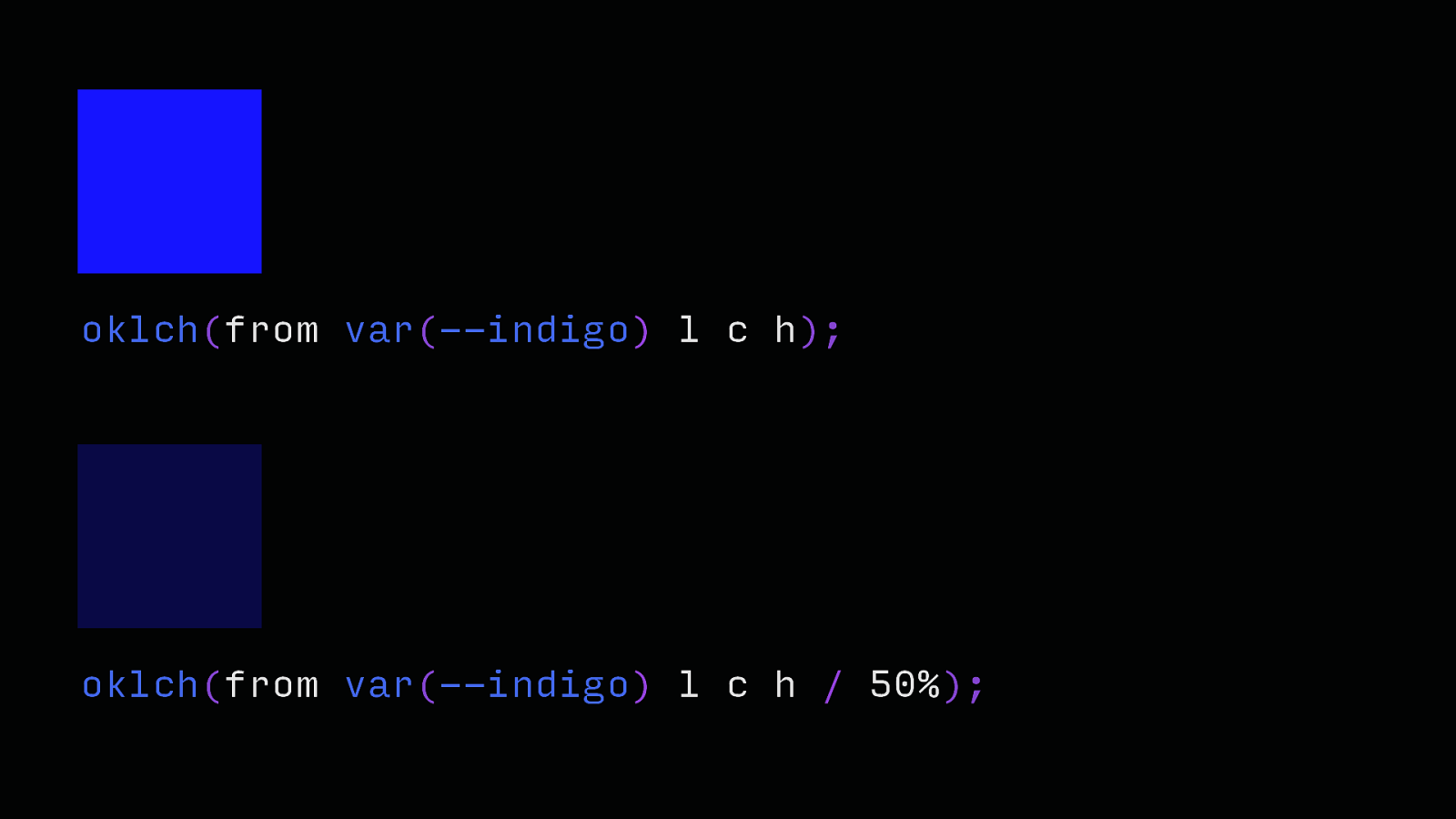

oklch(from var(—indigo) l c h); oklch(from var(—indigo) l c h / 50%);

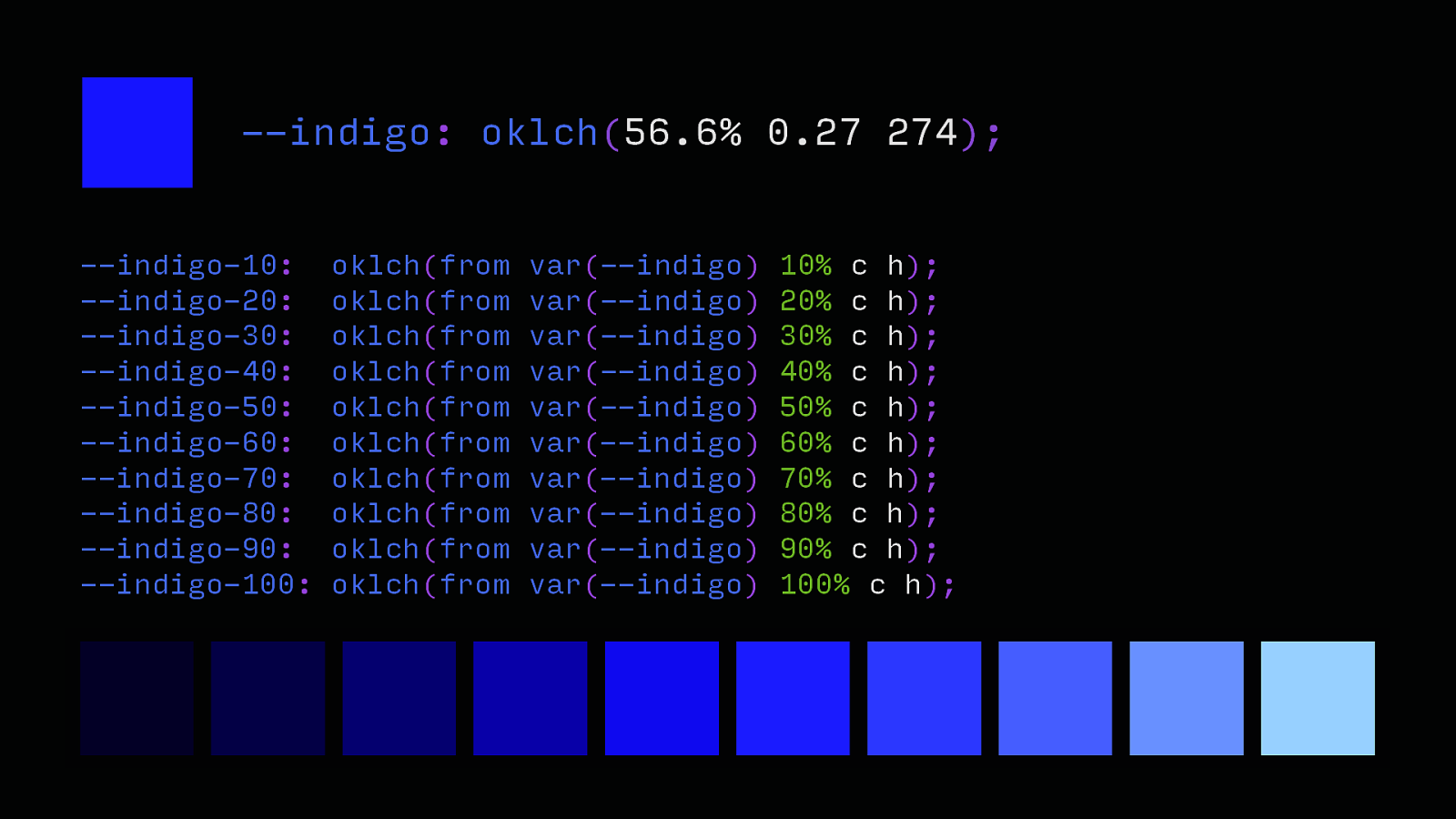

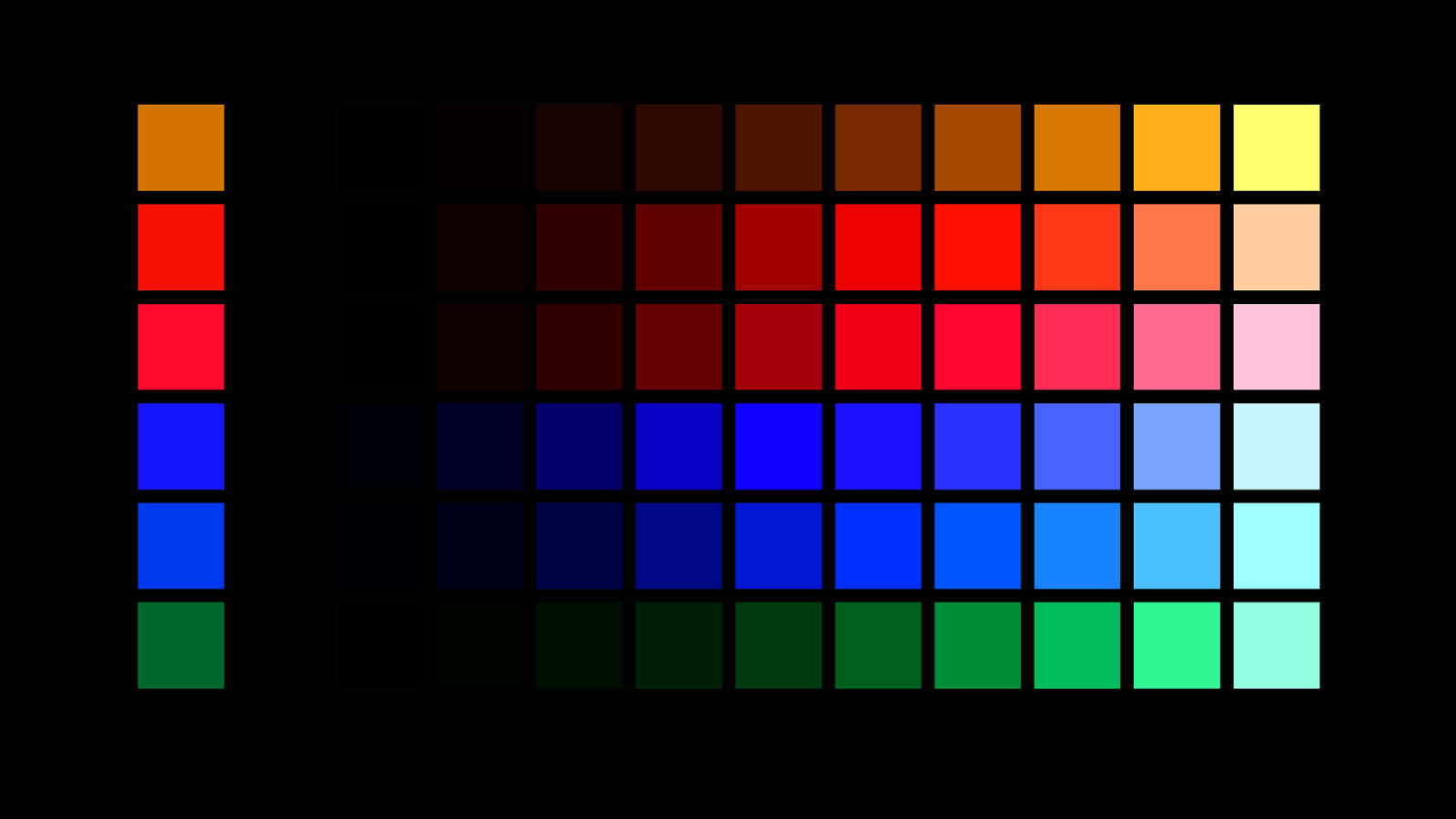

—indigo: oklch(56.6% 0.27 274); —indigo-10: —indigo-20: —indigo-30: —indigo-40: —indigo-50: —indigo-60: —indigo-70: —indigo-80: —indigo-90: —indigo-100: oklch(from oklch(from oklch(from oklch(from oklch(from oklch(from oklch(from oklch(from oklch(from oklch(from var(—indigo) var(—indigo) var(—indigo) var(—indigo) var(—indigo) var(—indigo) var(—indigo) var(—indigo) var(—indigo) var(—indigo) 10% c h); 20% c h); 30% c h); 40% c h); 50% c h); 60% c h); 70% c h); 80% c h); 90% c h); 100% c h);

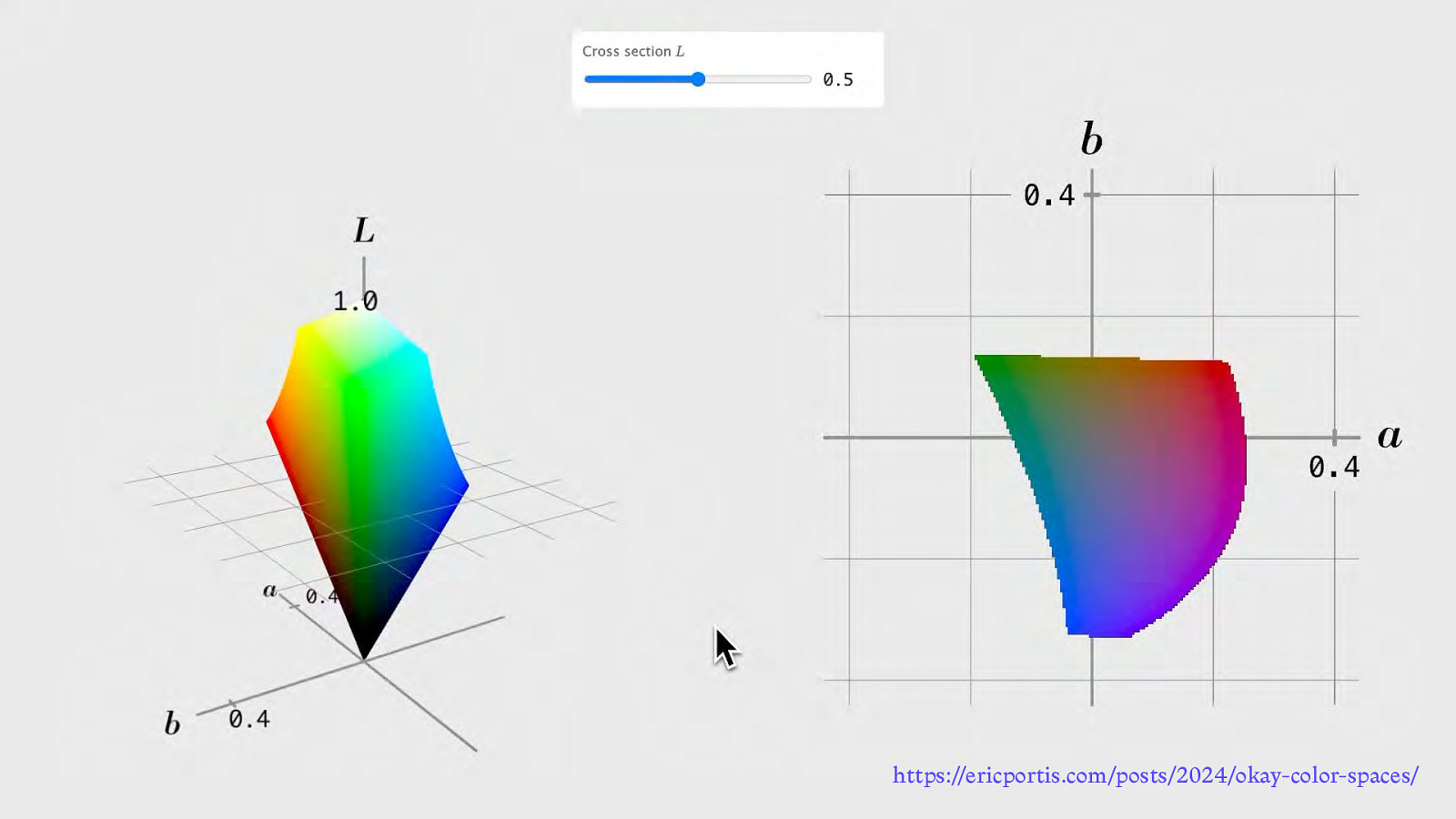

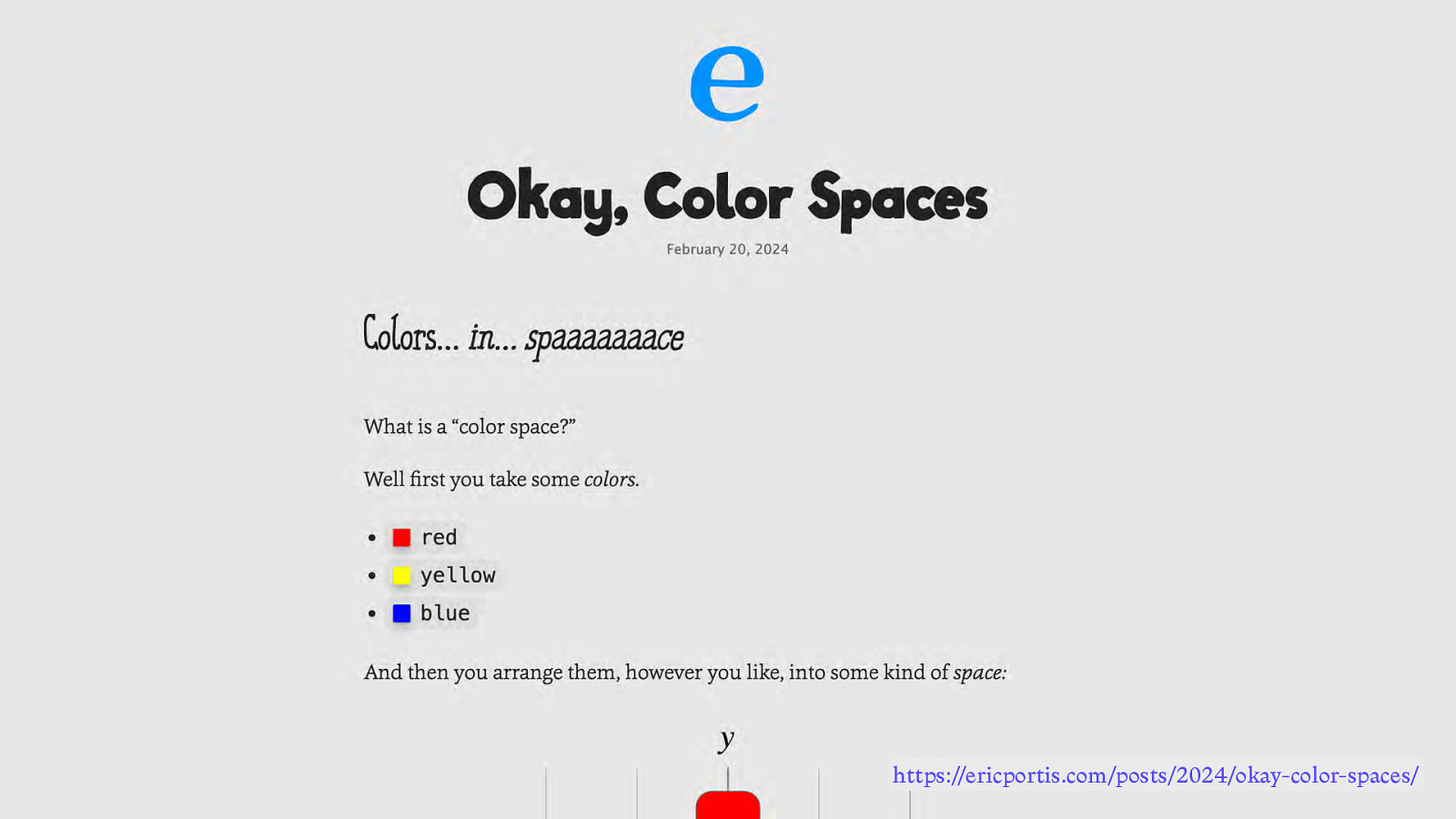

https://ericportis.com/posts/2024/okay-color-spaces/
https://ericportis.com/posts/2024/okay-color-spaces/
Layout

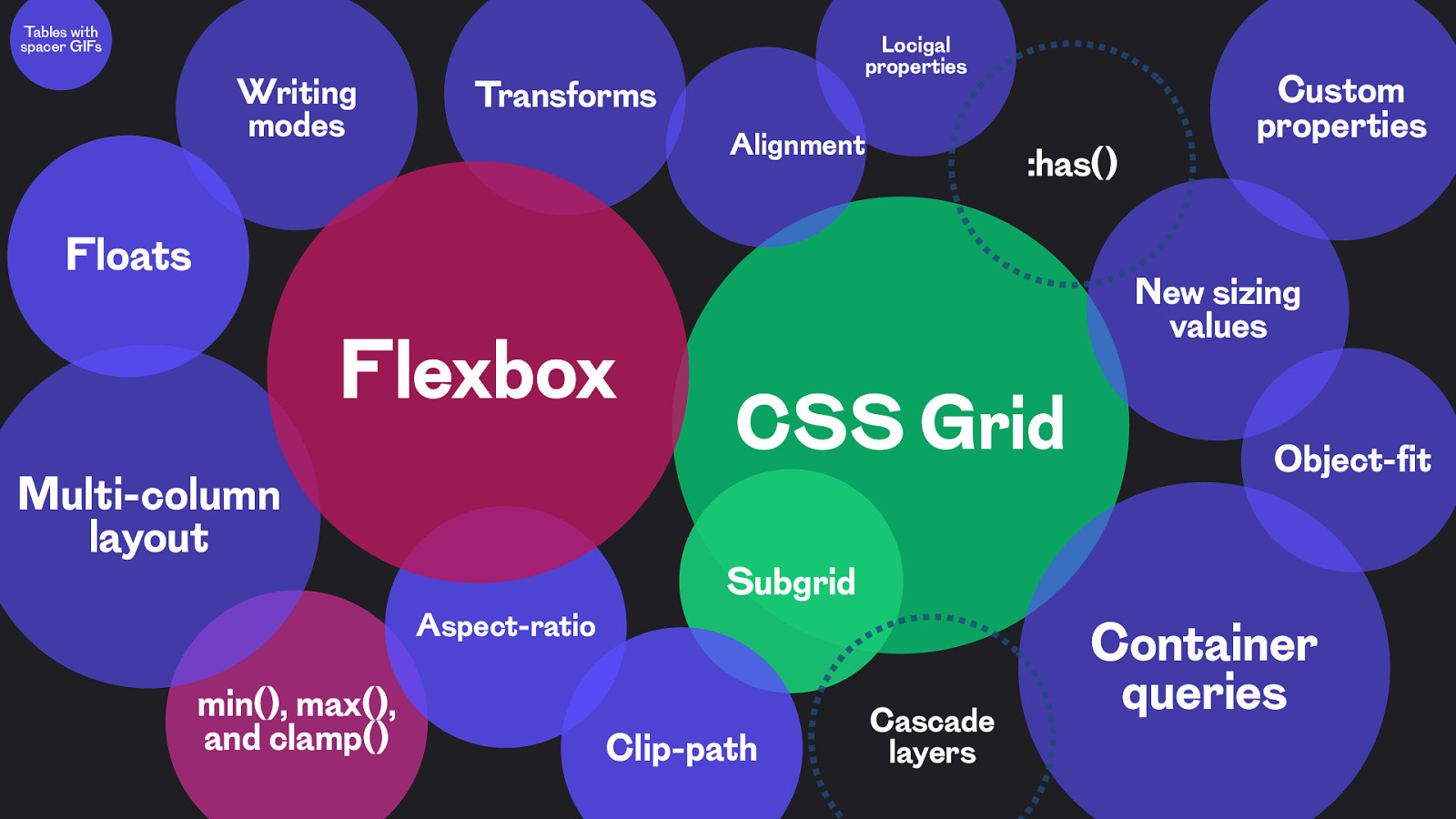

Tables with spacer GIFs Writing modes Transforms Locigal properties Alignment :has() Floats Flexbox Multi-column layout Aspect-ratio min(), max(), and clamp() Custom properties New sizing values CSS Grid Subgrid Clip-path Cascade layers Object-fit Container queries
CSS Grid
The majority of designers still has no idea of what’s possible with CSS Grid.

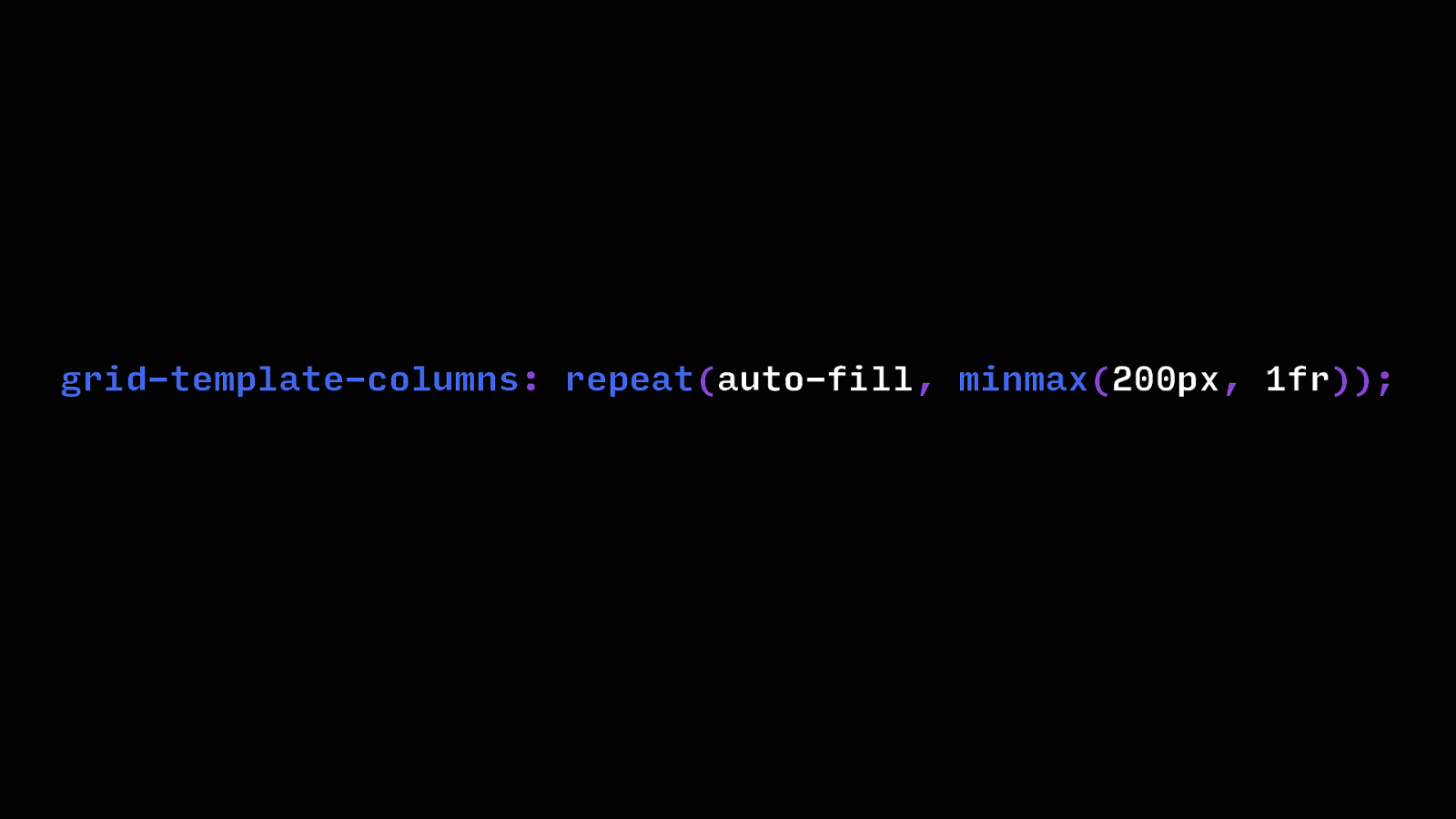

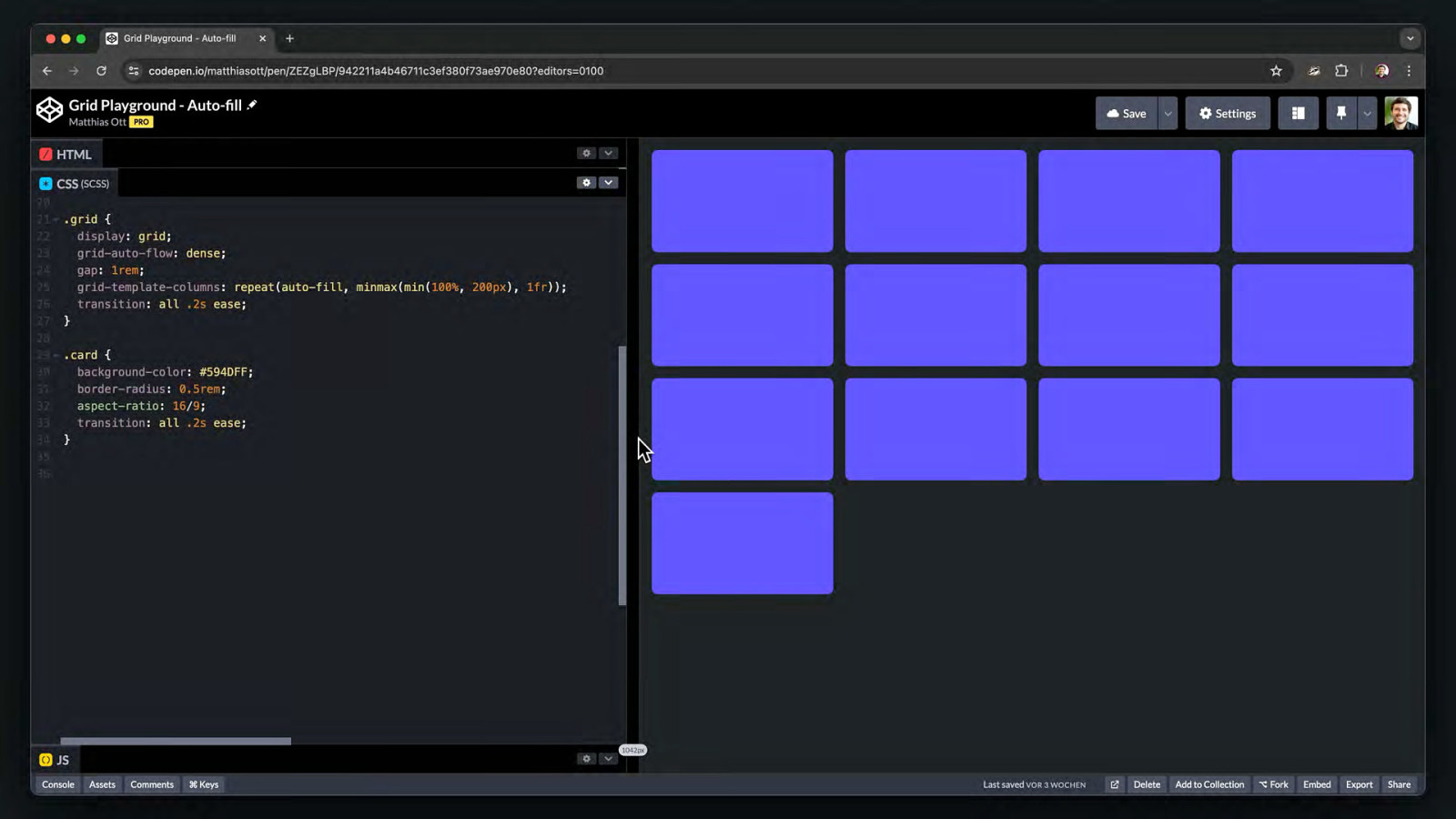

grid-template-columns: repeat(auto-fill, minmax(200px, 1fr));

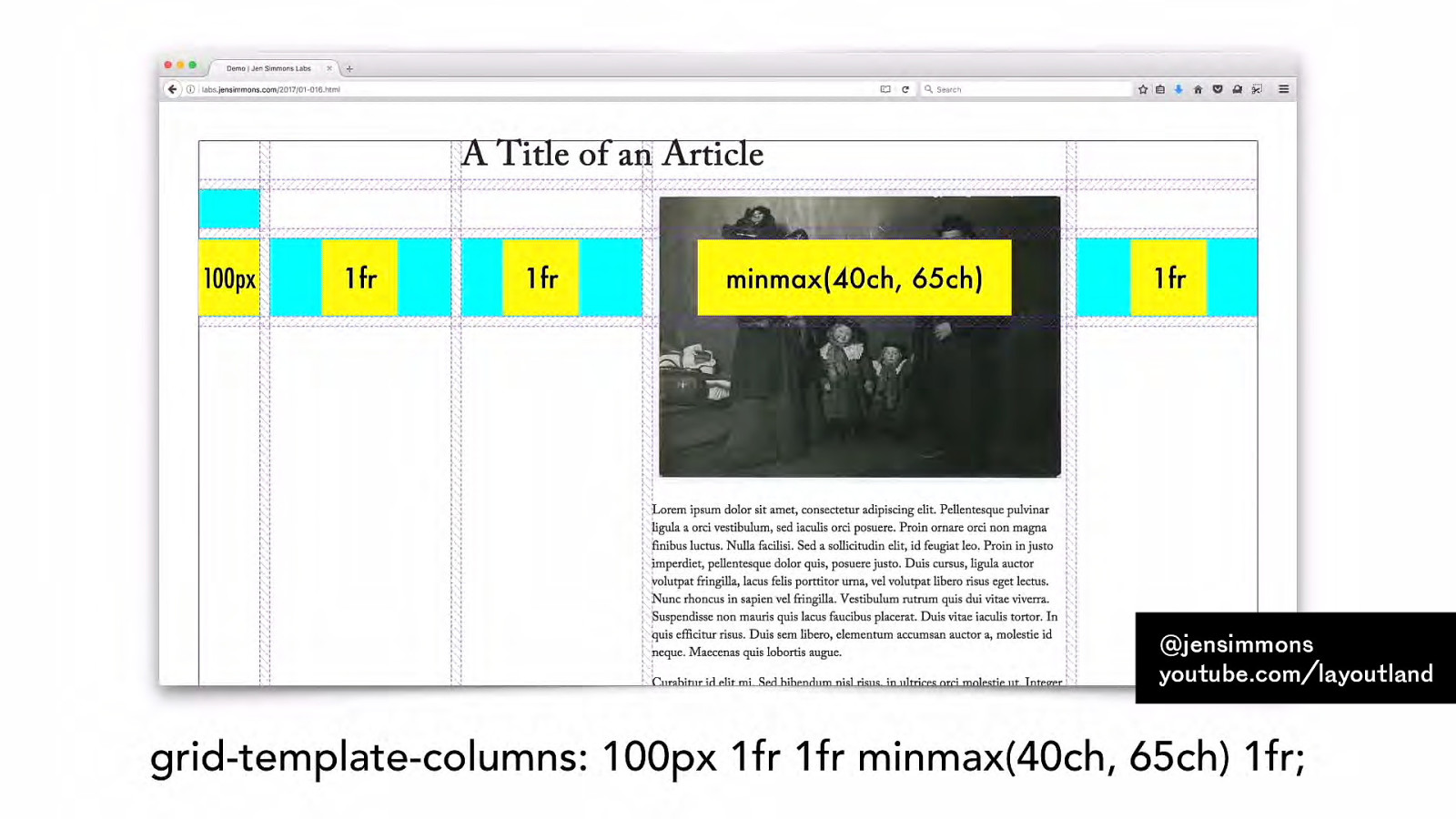

Example: CSS Grid @jensimmons youtube.com/layoutland

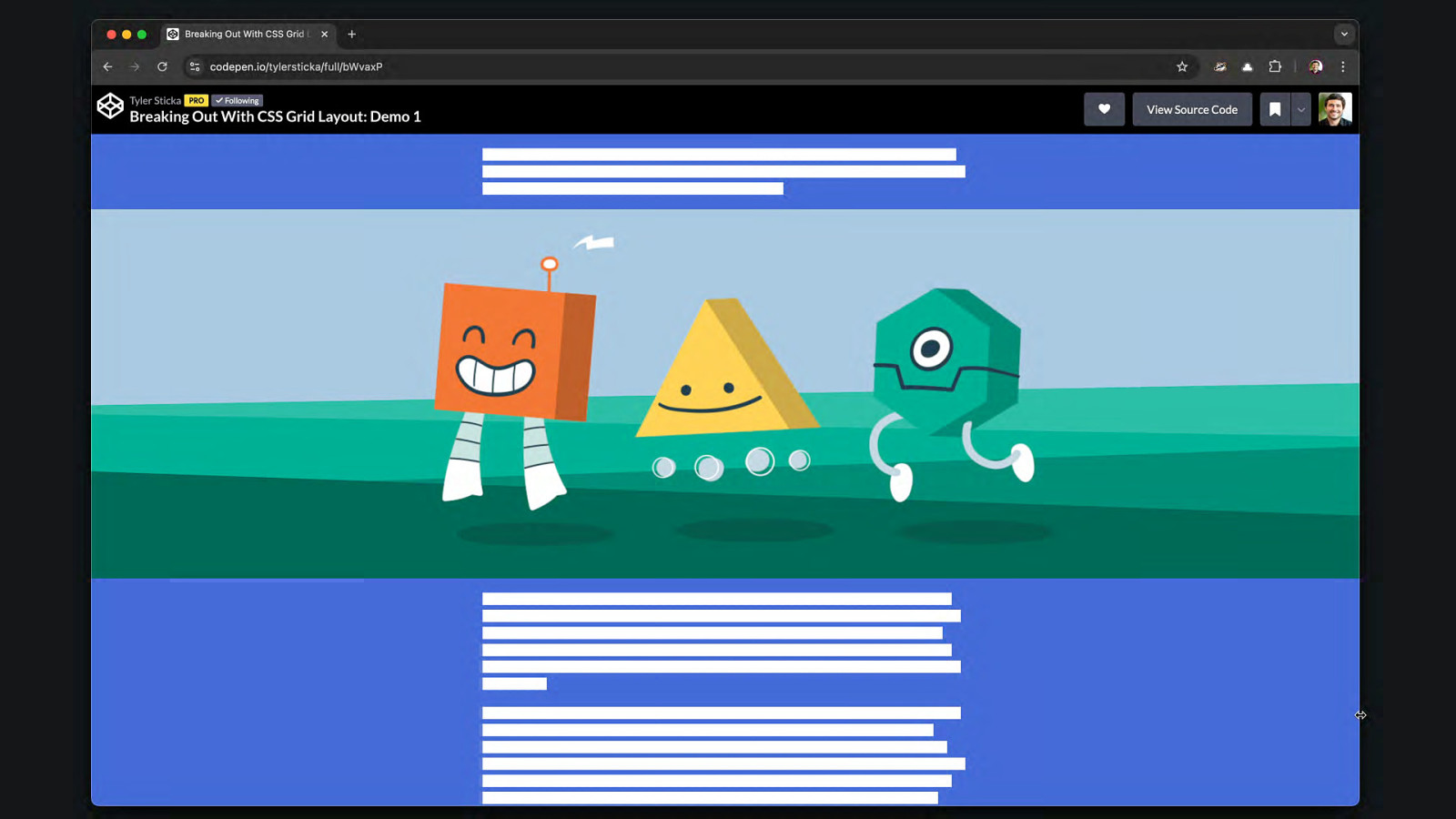

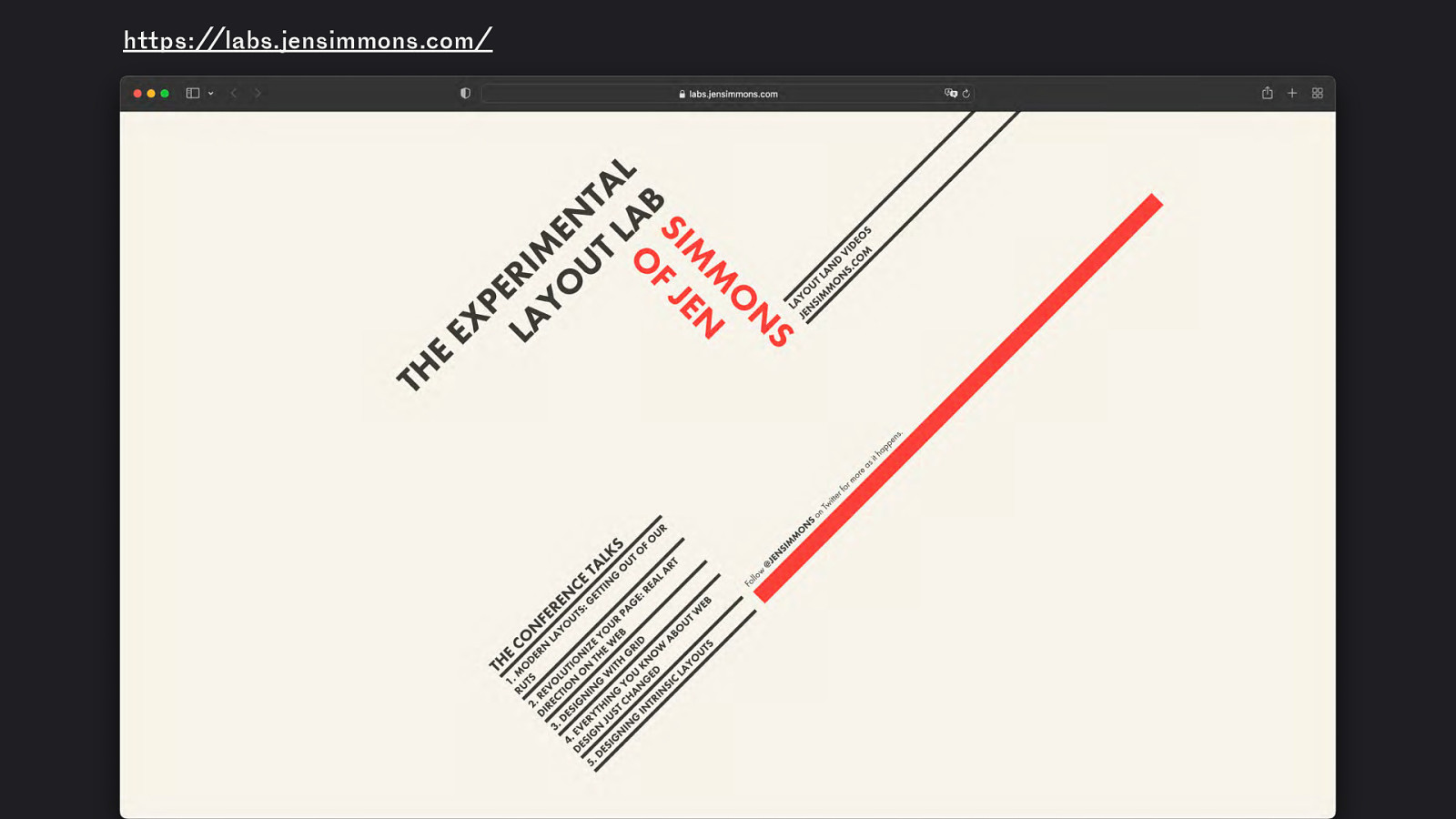

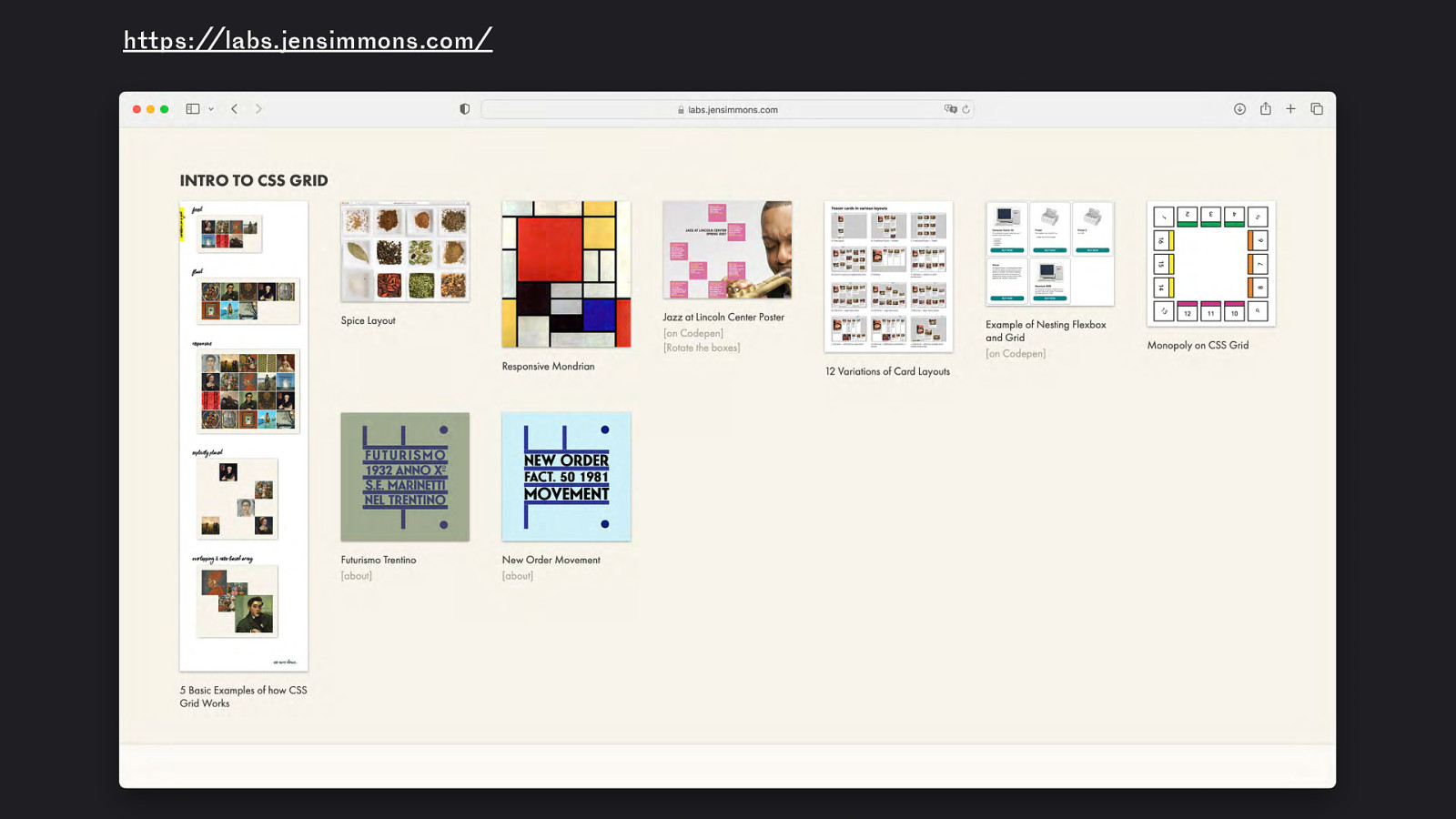

https://labs.jensimmons.com/

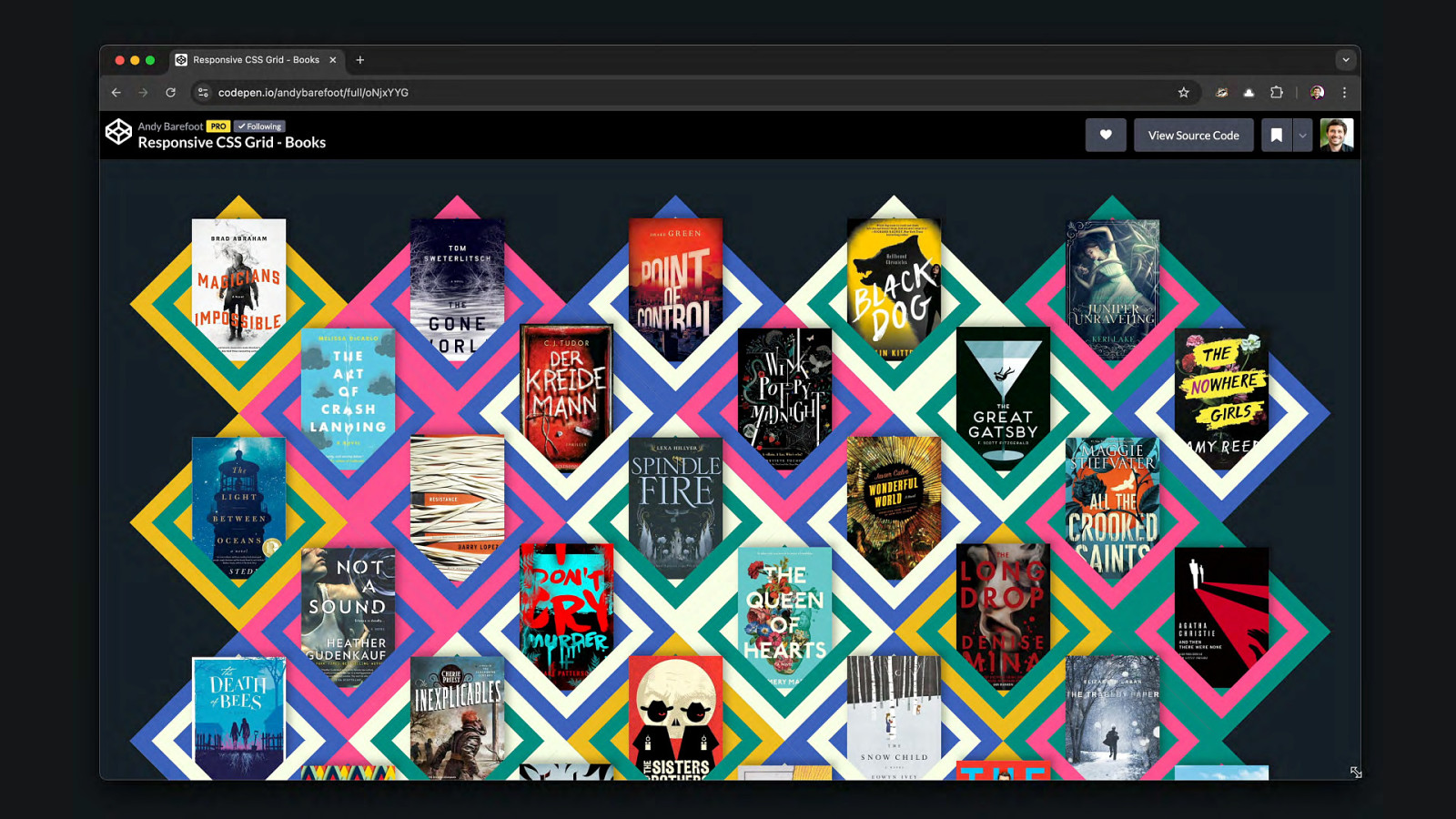

https://labs.jensimmons.com/ Example: CSS Grid

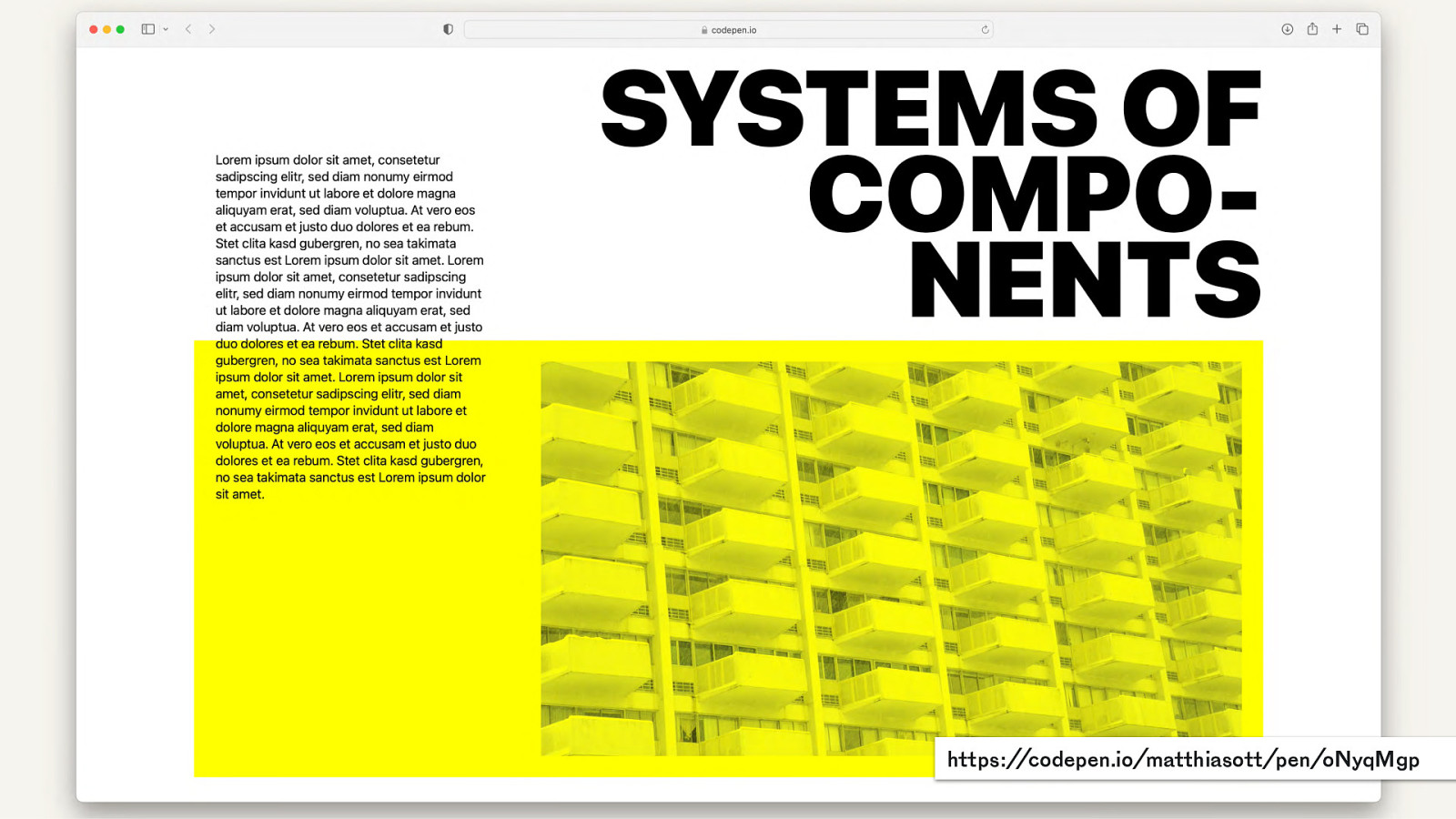

https://codepen.io/matthiasott/pen/oNyqMgp

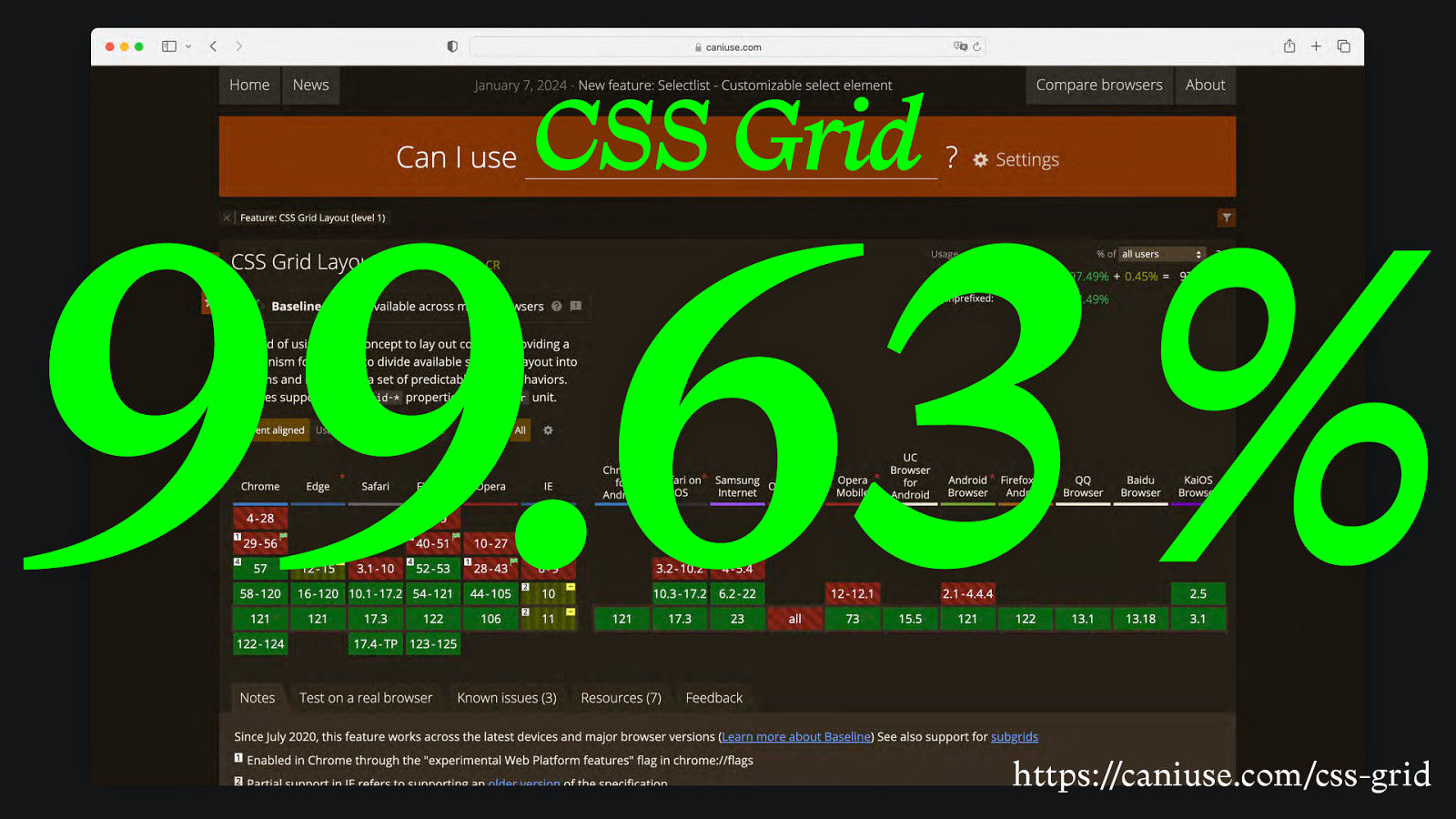

CSS Grid 99.63 % https://caniuse.com/css-grid
Subgrid

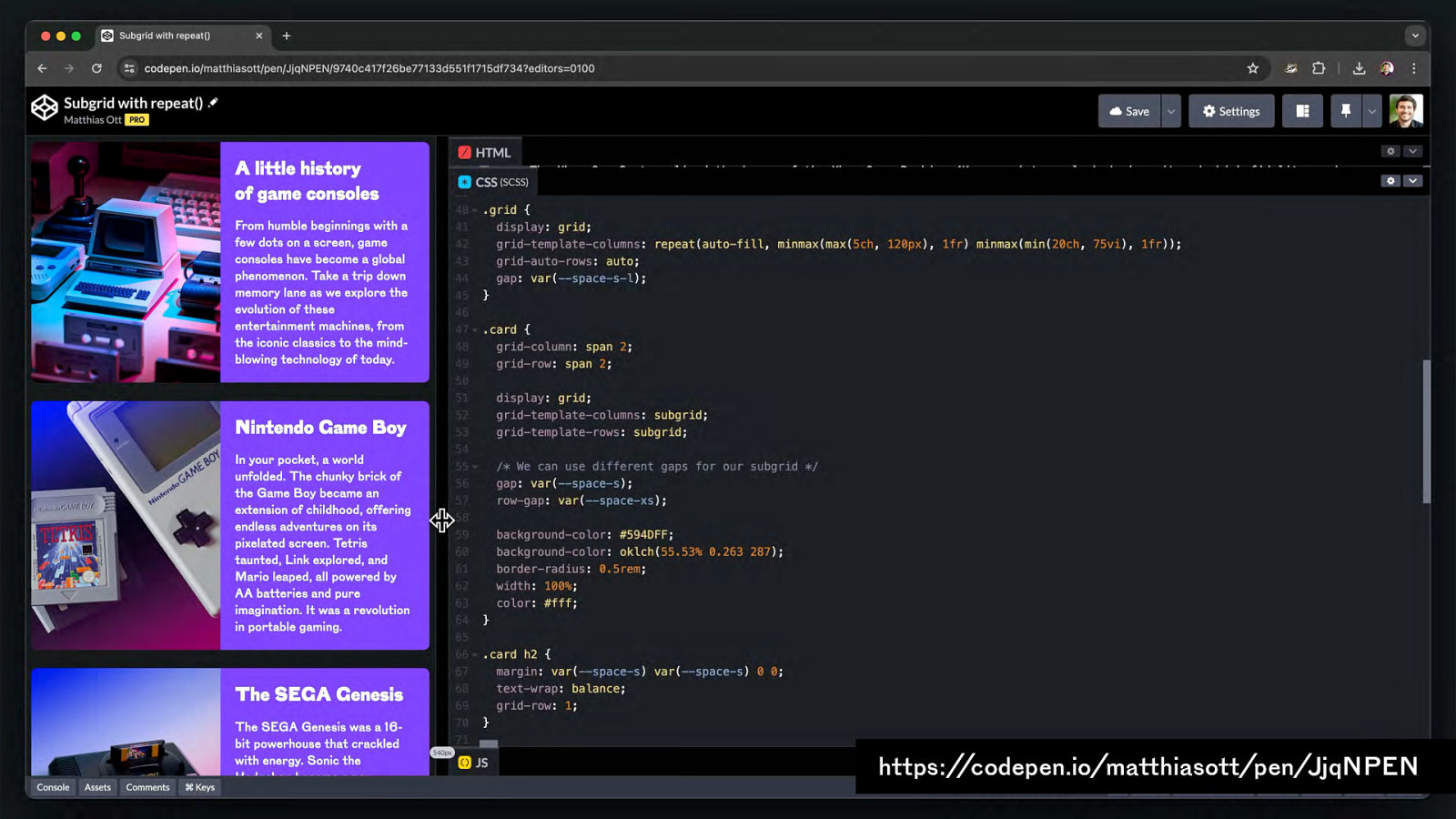

https://codepen.io/matthiasott/pen/JjqNPEN
Container Queries

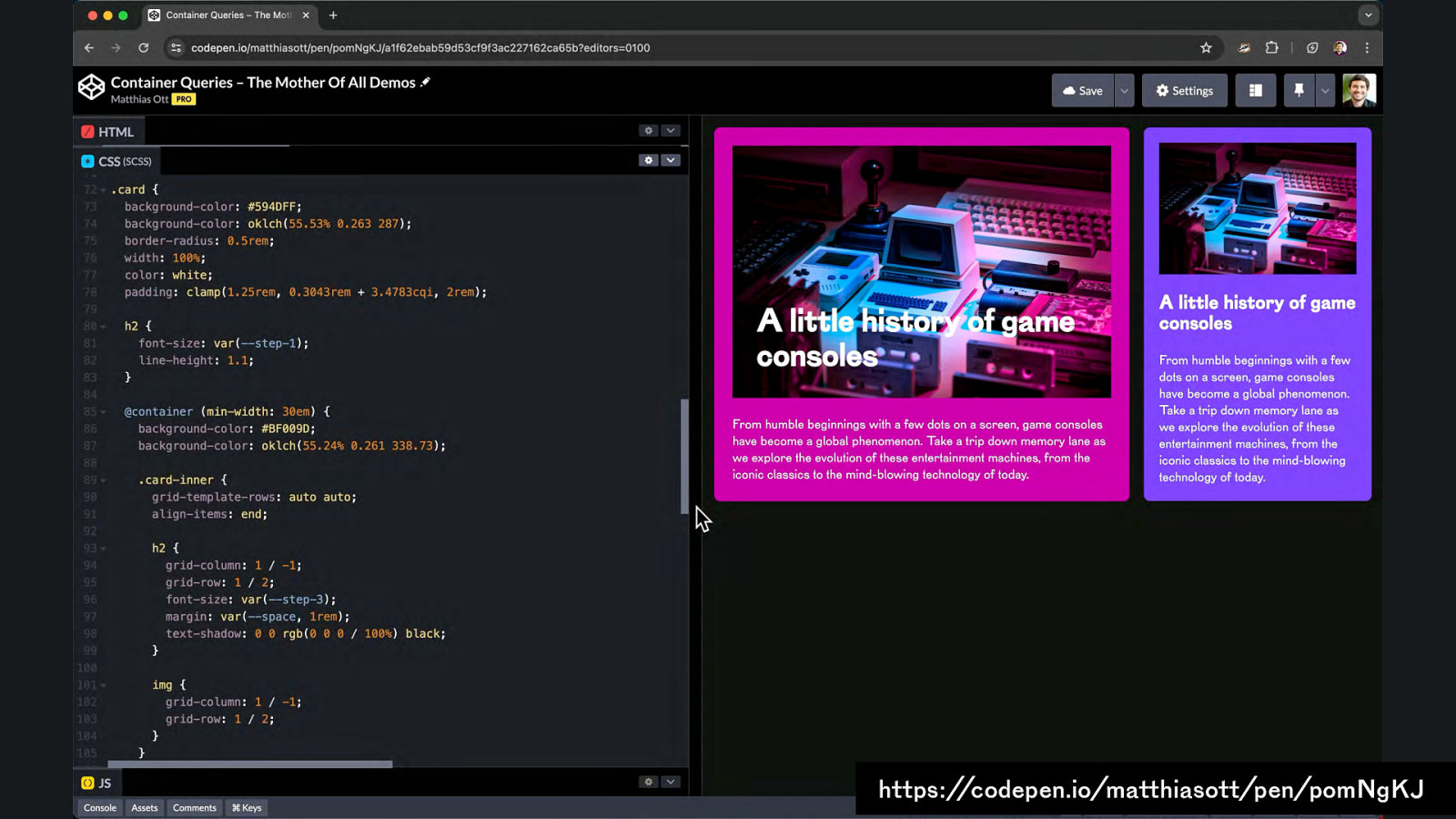

https://codepen.io/matthiasott/pen/pomNgKJ

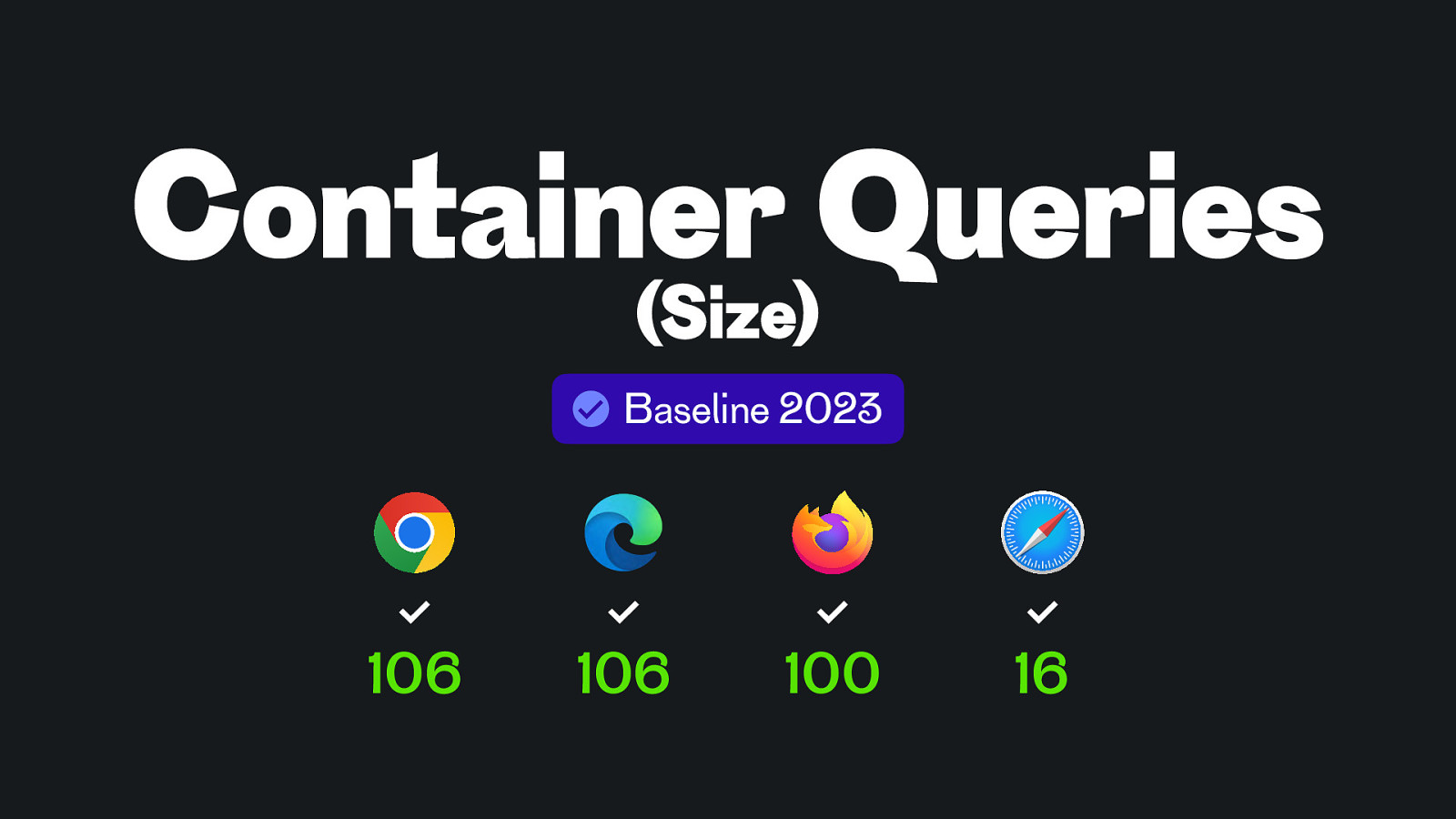

Container Queries (Size) Baseline 2023 106 106 100 16
Accessibility Forms Interactivity Responsiveness Animation Performance
What is our toolset?
Use HTML and CSS much earlier in the process
Prototyping

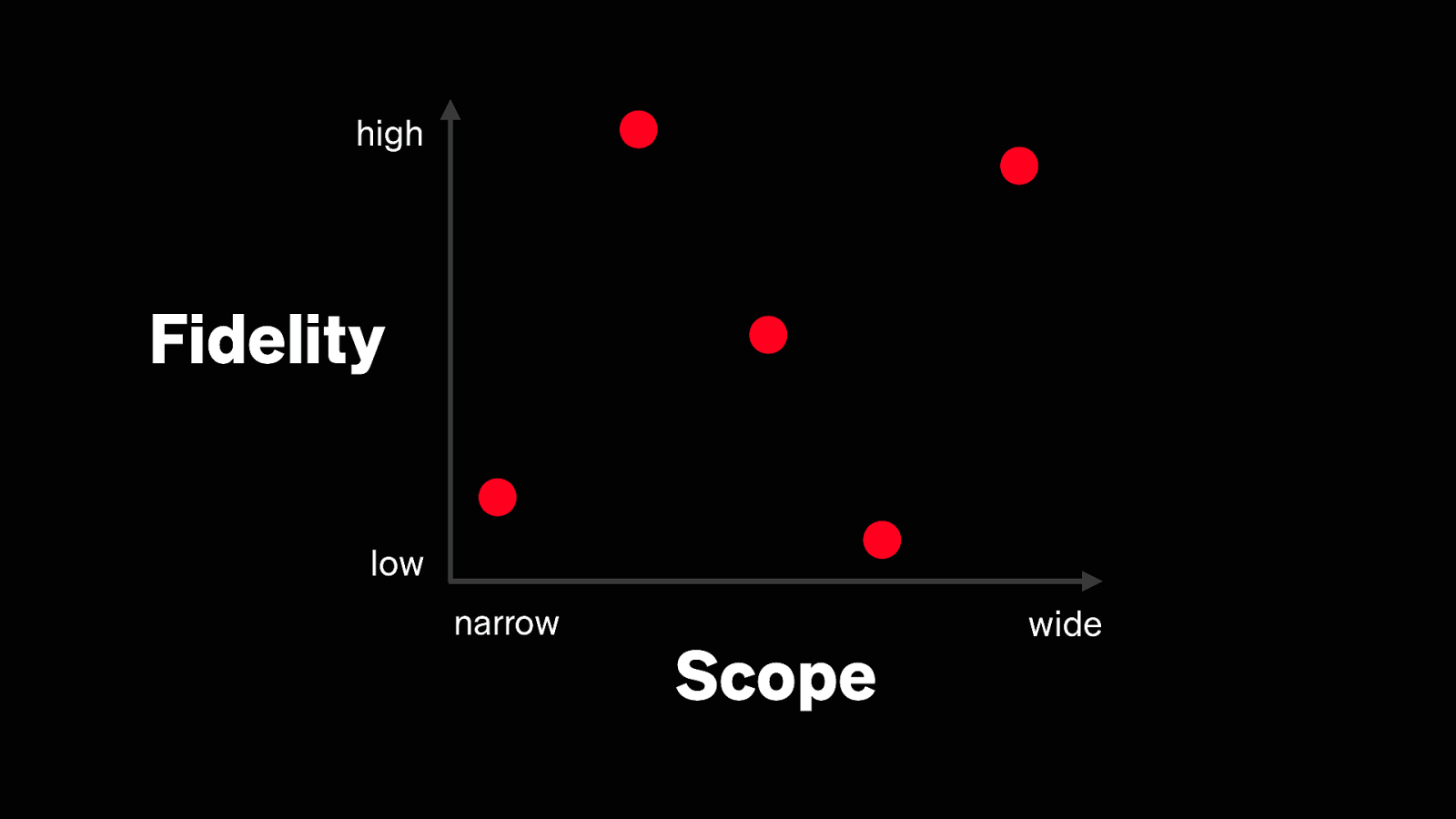

high Fidelity low narrow Scope wide
Decide in the browser

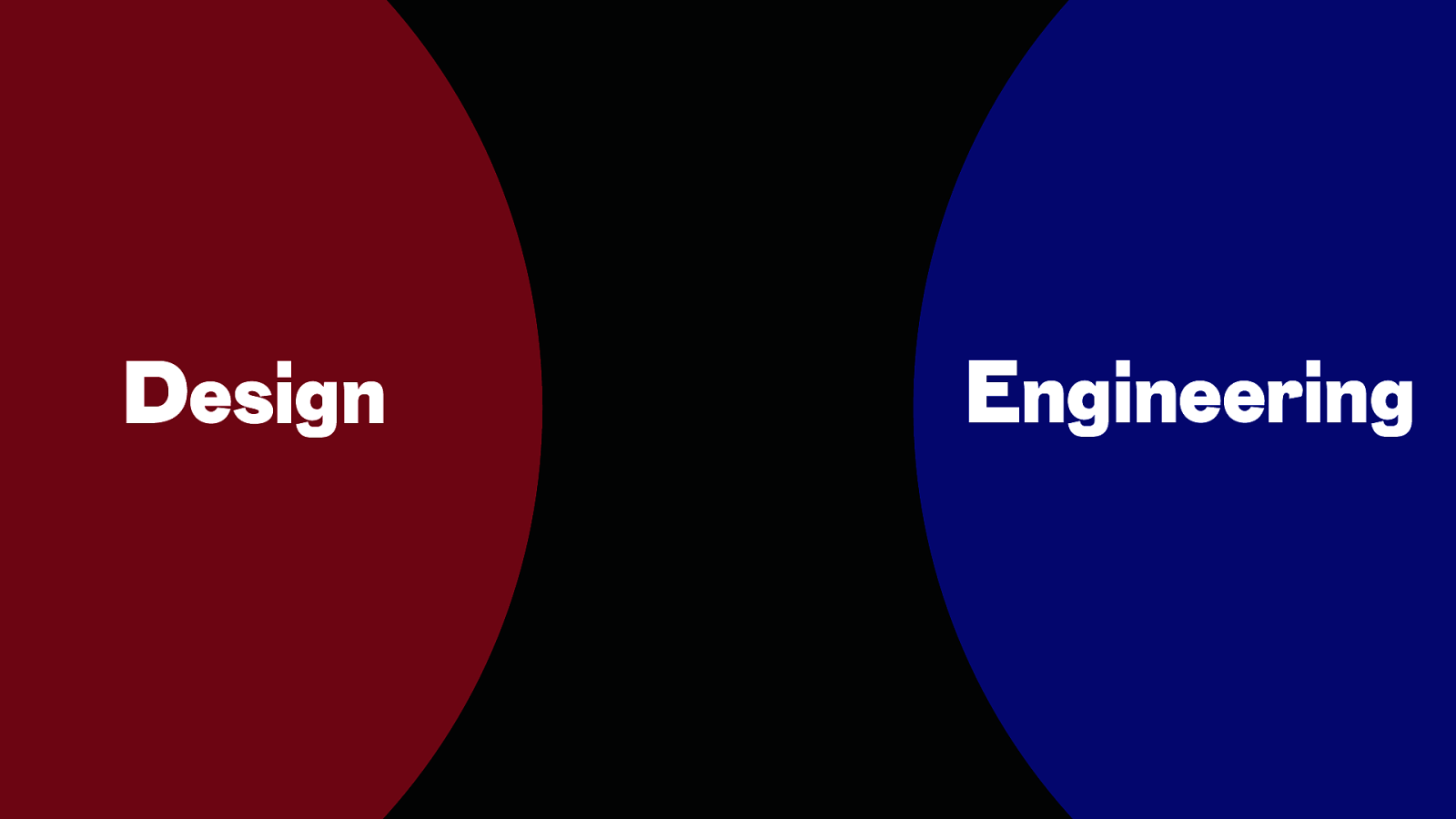

Design Engineering
Design Engineering
Web Design Engineering
Let devs design
& Let devs design

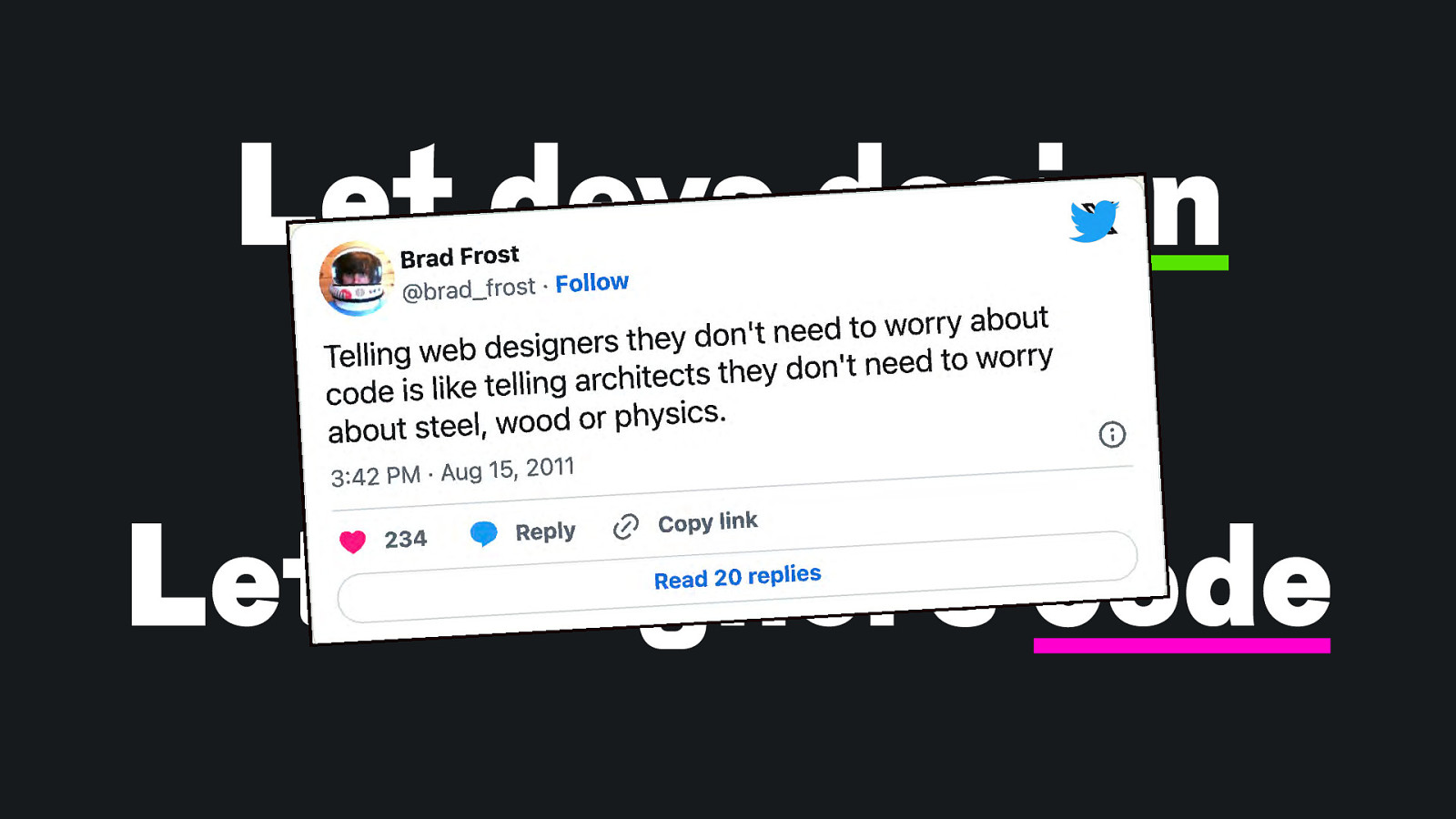

& Let devs design Let designers code
Let devs design & Let designers code
Thank you! Slides: https://noti.st/matthiasott/31ArQI ” ownyourweb.site # Typefaces: Tausend by Christoph Koeberlin, NaN Tresor by Christoph Koeberlin, NaN Tragedy by Jean-Baptiste Morizot, Input Mono by David Jonathan Ross
